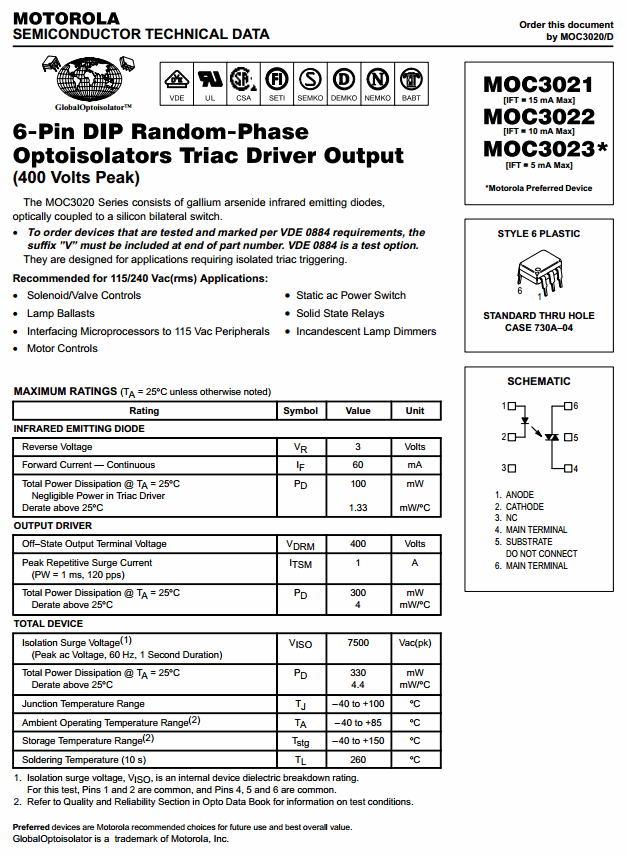

MOC3020 (DIP6) RANDOM-PHASE OPTOISOLATORS TRIAC DRIVER OUTPUT สีขาว

MOC3020 (DIP6) RANDOM-PHASE OPTOISOLATORS TRIAC DRIVER OUTPUT (Motorola,  Onsemi , Fairchild)

 DESCRIPTION
The MOC301XM and MOC302XM series are optically isolated triac driver devices. These devices contain a GaAs infrared
emitting diode and a light activated silicon bilateral switch, which functions like a triac. They are designed for interfacing between
electronic controls and power triacs to control resistive and inductive loads for 115 VAC operations.

FEATURES
• Excellent I
FT stability—IR emitting diode has low degradation
• High isolation voltage—minimum 5300 VAC RMS
• Underwriters Laboratory (UL) recognized—File #E90700
• Peak blocking voltage
– 250V-MOC301XM
– 400V-MOC302XM
• VDE recognized (File #94766)
– Ordering option V (e.g. MOC3023VM)

APPLICATIONS
• Industrial controls • Solenoid/valve controls
• Traffic lights • Static AC power switch
• Vending machines • Incandescent lamp dimmers
• Solid state relay • Motor control
• Lamp ballasts
