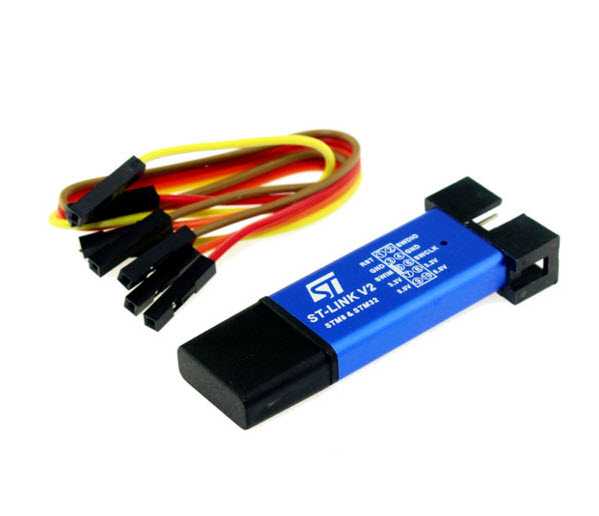

เครื่องสำหรับโปรแกรม และ ดีบัก  microcontroller ของ ST micro.  ARM STM32xxx และ  STM8xxx STlink

   1. Support the full range of STM32 SWD interface debugging, simple interface (including power supply), 4 line speed, stable work; Interface definition shell directly address! Don't need to read instructions!

    2, support all series STM8 SWIM download debugging (common development environment such as IAR, STVD etc.) are supported. Support the software version is as follows:

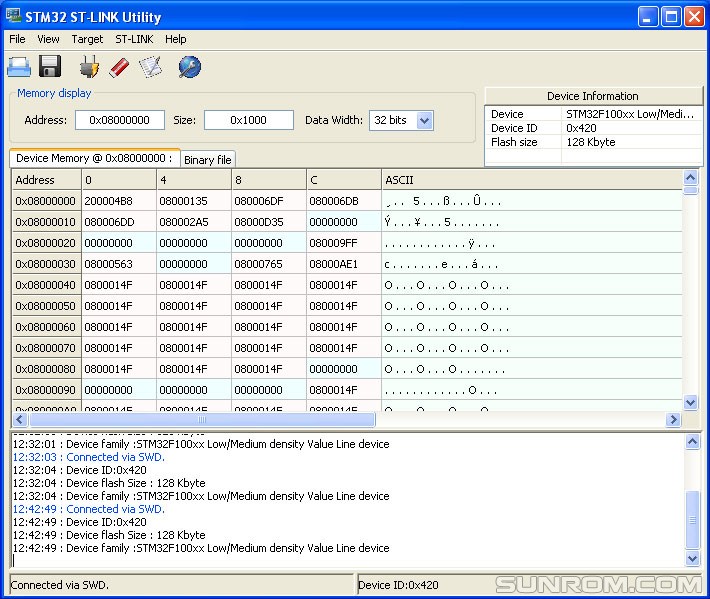

• ST - LINK Utility 2.0 and above
• STVD 2 and above
• STVP 3.2.3 and above
• IAR EWARM V6.20 and above
• IAR EWSTM8 V1.30 and above
• KEIL RVMDK V4.21 and above

   3. Support the firmware upgrade automatically, to ensure that the ST company product support. When they leave the firmware has been upgraded to the latest V2. The J17. S4.

   4. Increase the 5 v power output, the output it can protect the I/O port, not afraid of error cause damage of ST - LINK V2!

1. ST-LINK/V2 × 1
2. 4-pin SWIM cable × 1

STVP

ST Visual Programmer for programming ST7, STM8 and STM32

Keil MDK

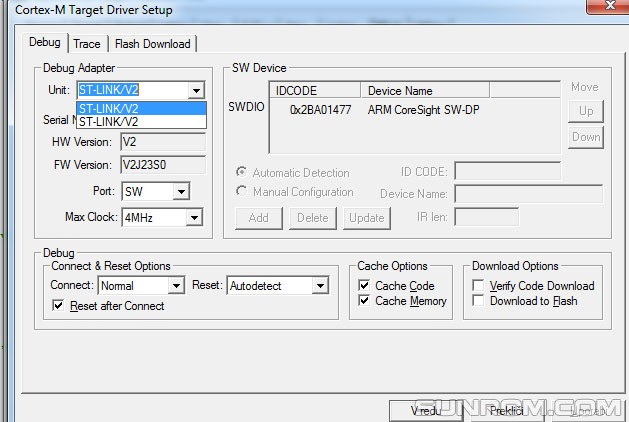

ตั้งค่า ST-LINK ค่า ใน KEIL แบบ command line

Product Page

ST Link

Download

IAR STM8's debug probe Product Page

The ST-LINK/V2 is an in-circuit debugger and programmer for the STM8 and STM32 microcontroller families. The single wire interface module (SWIM) and JTAG/serial wire debugging (SWD) interfaces are used to communicate with any STM8 or STM32 microcontroller located on an application board.

STM8 applications use the USB full speed interface to communicate with STMicroelectronic's ST Visual Develop (STVD) or ST Visual Program (STVP) software.

STM32 applications use the USB full speed interface to communicate with Atollic, IAR, Keil or TASKING integrated development environments.

Key Features

• 3.3V or 5V power supplied by a USB connector
• USB 2.0 full speed compatible interface
• SWIM specific features
  • SWIM cable for connection to the application via a pin header or a 2.54 mm pitch connector
• • 1.65 V to 5.5 V application voltage supported on SWIM interface
  • SWIM low-speed and high-speed modes supported
  • SWIM programming speed rate: 9.7 Kbytes/s in low speed and 12.8 Kbytes/s in high speed
  • SWIM cable for connection to the application
• Direct firmware update feature supported (DFU)
• Status LED which blinks during communication with the PC
• Operating temperature 0 to 50 °C

Supported Devices

Microcontrollers supported by STVP release 3.2.8:

SW DRIVERS

While connecting the ST-LINK/V2 to the computer through USB interface, the USB driver is required and should be installed correctly first.

Click on the link below to download:

ST-LINK/V2 USB driver for Windows 7, Vista and XP
