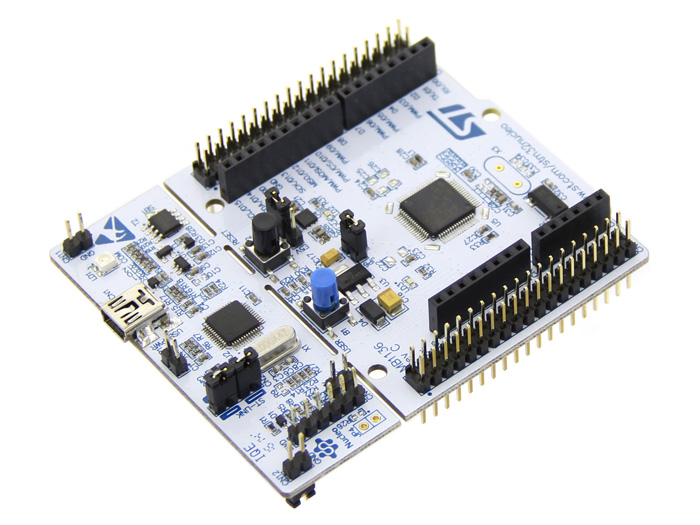

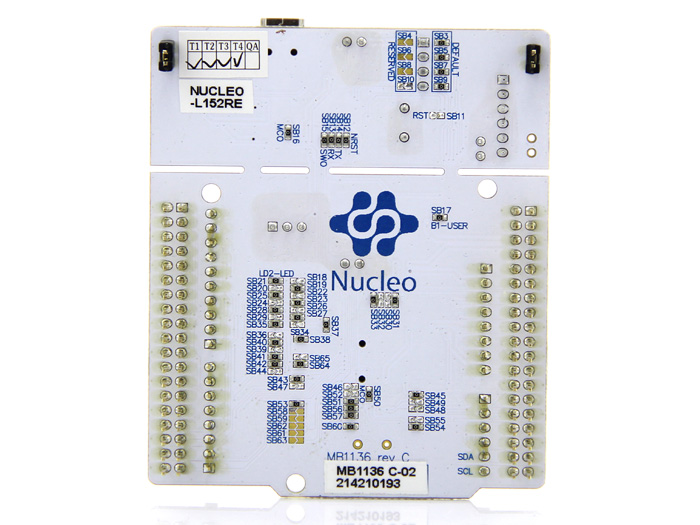

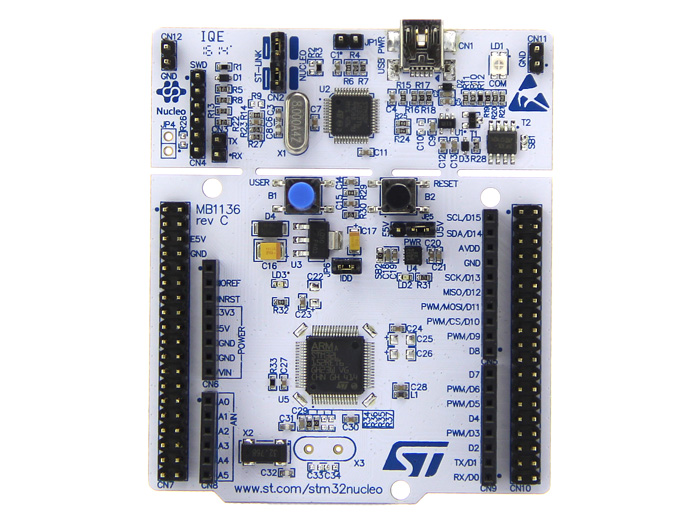

STM32 NUCLEO-L152RE development board with STM32L152KC MCU, supports Arduino connectivity สำเนา

The STM32 Nucleo board provides an affordable and flexible way for users to try out new concepts and build prototypes with the STM32 microcontroller, choosing from the various combinations of performance, power consumption and features. The Arduino™Uno V3 connectivity support and the ST morpho headers allow to expand easily the functionality of the STM32 Nucleo open development platform

with a wide choice of specialized shields. The STM32 Nucleo board does not require any separate probe as it integrates the ST-LINK/V2-1 debugger and programmer. The STM32 Nucleo board comes with the STM32 comprehensive software HAL library together with various packaged software examples, as well as direct access to the ARM®mbed™online resources at http://mbed.org.

Microcontroller features

• STM32L152RET6 in LQFP64 package
• ARM®32-bit Cortex®-M3 CPU
• 32 MHz max CPU frequency
• VDD from 1.65 V to 3.6 V
• 512 KB Flash
• 80 KB SRAM
• 16 KB EEPROM
• GPIO (51) with external interrupt capability
• 12-bit ADC with 21 channels
• RTC
• Timers (9)
• I2C (2)
• USART (5)
• SPI (3)
• USB 2.0 full-speed
• DAC (2)
• LCD (1) 4x32 or 8x28
• Operationnal Amplifiers (2)
• Comparators (2)

Nucleo features

• Two types of extension resources

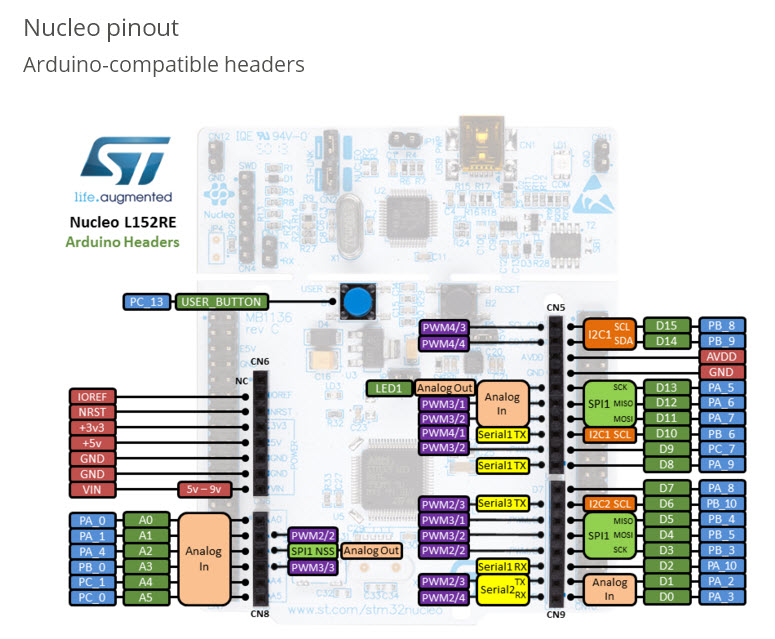

  • Arduino Uno Revision 3 connectivity

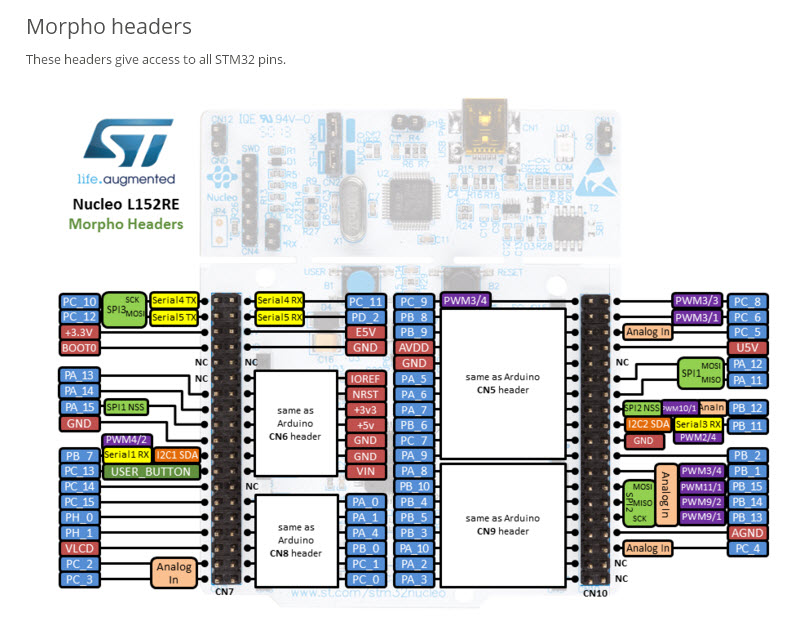

  • STMicroelectronics Morpho extension pin headers for full access to all STM32 I/Os
• On-board ST-LINK/V2-1 debugger/programmer with SWD connector
  • Selection-mode switch to use the kit as a standalone ST-LINK/V2-1
• Flexible board power supply
  • USB VBUS or external source (3.3 V, 5 V, 7 - 12 V)
  • Power management access point
• User LED (LD2)
• Two push buttons: USER and RESET
• USB re-enumeration capability: three different interfaces supported on USB
  • Virtual Com port
  • Mass storage (USB Disk drive) for drag'n'drop programming
  • Debug port

• Support of wide choice of Integrated Development Environments (IDEs) including IAR™, ARM® Keil®, GCC-based IDEs

https://developer.mbed.org/platforms/ST-Nucleo-L152RE

http://www.st.com/en/evaluation-tools/nucleo-l152re.html
