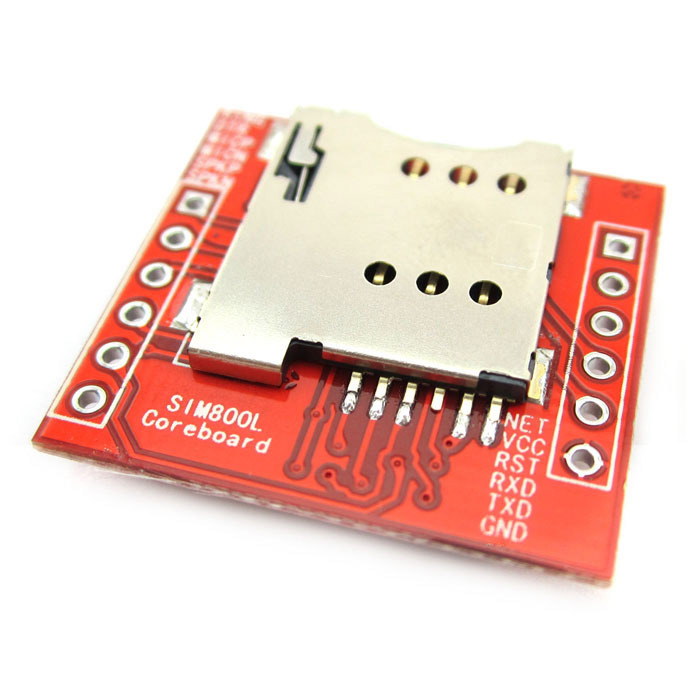

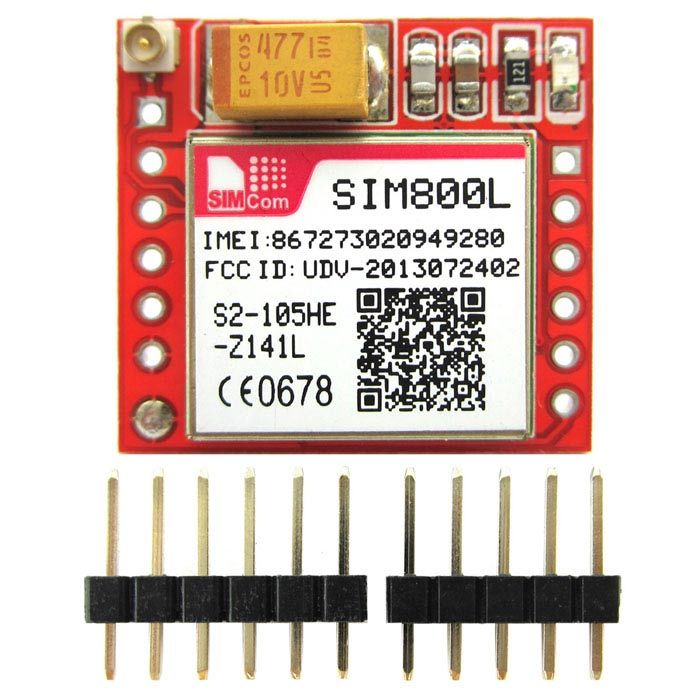

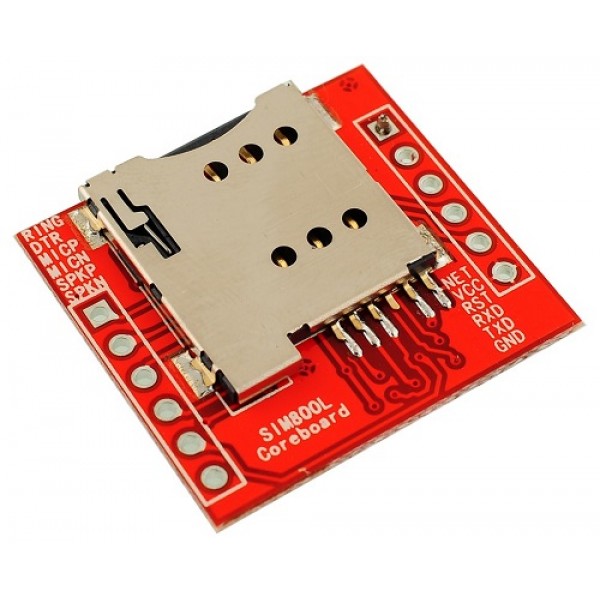

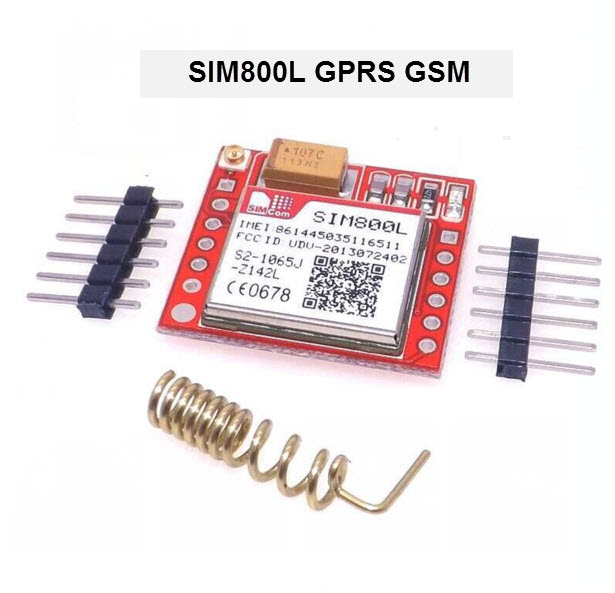

SIM800L GPRS GSM Module MicroSIM Card Quad-band TTL Serial Port

Want to connect your project to the cellular network, control your devices by SMS?

Then this module is what you are looking for. The SIM800L module is a quad-band device GSM / GPRS, works in the GSM850MHz, EGSM900MHz, DCS1800MHz and PCS1900MHz frequencies. This cell phone module that lets you add voice, text, data and SMS to your project in a small package, contains a surprising amount of technology in this small package. This version has a UFL connector. SIM800L uses the same chip as the FONA of Adafruit, module so you can use the same libraries.

By itself, this module can not do anything. a microcontroller is required to control! We suggest and use an Arduino but any microcontroller with a UART 3-5V can send and receive commands via the RX / TX pins. You will also need some additional accessories. These are not included! Primarily a 2G SIM chip.

TECHNICAL SPECIFICATIONS

• Operating Voltage: 3.4V ~ 4.4V DC
• Logic level 3V to 5V
• Current consumption (max): 500 mA
• Current consumption (sleep): 0.7 mA
• Interface: Serial UART
• Quad-band 850/900/1800 / 1900MHz - connect to any GSM global network with any SIM 2G
• Works only with 2G technology (Peru Movistar, Claro and Entel)
• Make and receive voice calls using a headset or external speaker 8Ω + electret microphone.
• Send and receive SMS messages
• Send and receive data GPRS (TCP / IP, HTTP, etc.)
• Receptor FM
• Controlled by AT Commands (3GPP TS 27,007, 27,005 and SIMCOM enhanced AT Commands)
• AT command interface with "automatic" transmission speed detection
• Supports A-GPS
• GPRS data:
  • Maximum speed 85.6 Kbps Transmission
  • TCP / IP chip
  • Codificacion: CS-1, CS-2, CS-3 y CS-4
  • It supports USSD
• Supports Real Time Clock (RTC)
• Serial transmission speeds from 1200bps to 115200bps
• Tamaño of the SIM: Micro SIM
