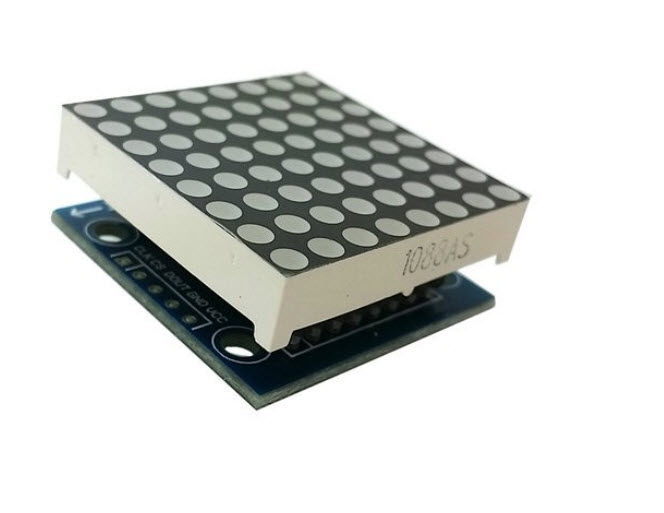

MAX7219 dot matrix module microcontroller module for arduino display module

DIS-010-01

Description:

• DIY Kits
• Single module can drive an 8 * 8 dot matrix common cathode
• Module Operating voltage: 5V
• Module dimensions: length 3.2 cm X 3.2 cm wide X 1.3 cm high
• Holes with four screws, diameter 3mm
• Modules with input and output interfaces, support for cascading multiple modules
• Wiring instructions:
• On the left block to an input port, an output port on the right
• When the control of a single module, simply enter the port received a CPU
• When more than 3 modules cascaded output input termination CPU, the input output termination module of the first two modules of the first one, the first two modules of the termination input terminal of the three modules, and so on
• To 51 single example:
  VCC → 5V
  GND → GND
  DIN → P20
  CS → P21
  CLK → P22
• Quantity:1pc

Package include:

• 1 x PCB Board
• 2 x 5P Bent Single Pin
• 2 x 8P Round Hole Board

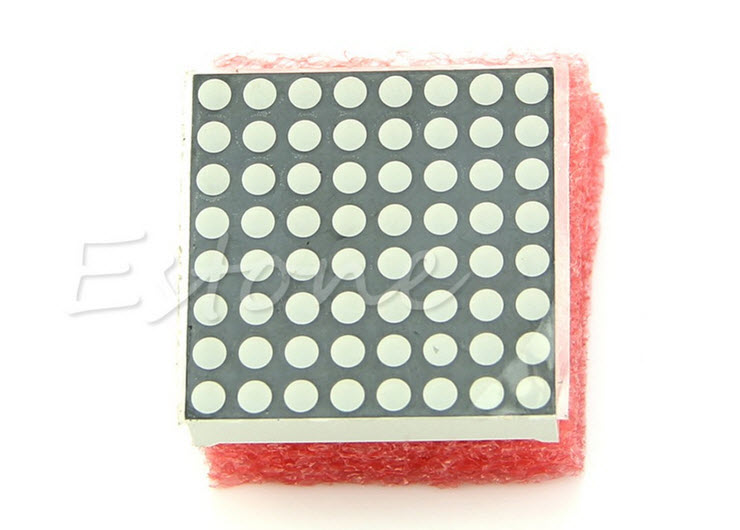

• 1 x 8*8 Dot Matrix
