NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator

NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator
รหัสสินค้า M742
หมวดหมู่ บอร์ดควบคุมทั่วไป (General control board)
ราคา 25.00 บาท
น้ำหนัก 15 กรัม
สถานะสินค้า พร้อมส่ง
ลงสินค้า 9 ส.ค. 2559
อัพเดทล่าสุด 14 ส.ค. 2567
จำนวน
ชิ้น
หยิบลงตะกร้า
บัตรประชาชน
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay

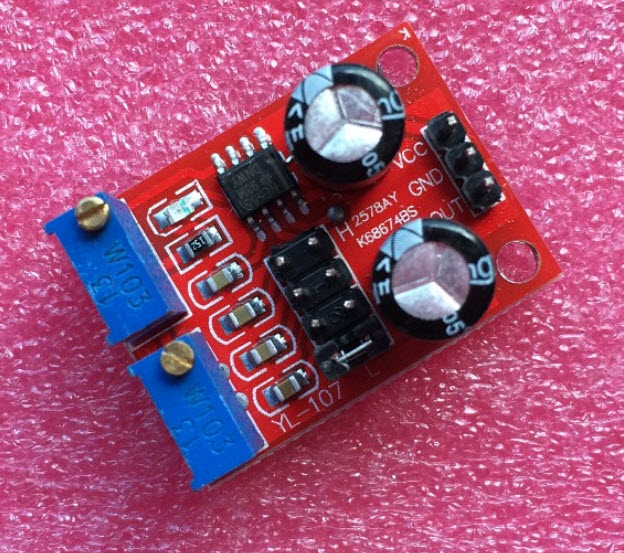

NE555 Pulse Frequency Cycle Adjustable Module. Square Wave Signal Generator based on H2578AY K68674BS YL-107 for DIY or homemade.

- LED and lamp flashers
- pulse generation
- logic clocks
- tone generation
- security alarms
- pulse position modulation
- etc

Features:

  • Size: 31mm * 22mm;
  • Main chip: NE555;
  • Input Voltage: 5V-15VDC. when power supply is 5V , the output current can be 15MA around;when 12V power supply, the output current can 35MA around;
  • Input current: >=100MA
  • Output amplitude: 4.2V V-PP to 11.4V V-PP. (Different input voltage, the output amplitude will be different)
  • Maximum output current: >=15MA (5V power supply, V-PP greater than 50%),
                            >=35MA (12V power supply, V-PP greater than 50%)
  • Output with LED indication(low level ,LED will on; high level,LED will off;low frequency, the LED flashes);
  • The output requency range is selectable:
    • LF file: 1Hz ~ 50Hz
    • IF file: 50Hz ~ 1kHz
    • High-frequency file: 1KHz ~ 10kHz
    • HF file: 10kHz ~ 200kHz
  • The output duty cycle can fine-tune;duty cycle and frequency is not separately adjustable;adjusting the duty cycle will change the frequency;
  • The output frequency is adjustable:
    • Period T = 0.7 (RA +2 RB) C
    • RA, RB is 0-10K adjustable;
    • Low profile when C = 0.001UF;
    • IF stalls C = 0.1UF;
    • High-frequency file C = 1UF;
    • HF stalls C = 100UF;
    • so buyers can calculate the frequency of the waveform.

Application:

  • As a square wave signal generator,generates a square wave signal used for experimental development.
  • Used to drive a stepper motor for generating a square wave drive signal.
  • Generate adjustable pulse for MCU.
  • Generate adjustable pulse,to control circuitry associated.

Download:

Package including:

1pcs NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator - See more at: http://www.uctronics.com/ne555-pulse-frequency-duty-cycle-adjustable-module-square-wave-signal-generator-p-1692l.html#sthash.Vh1Vb8mN.dpuf
