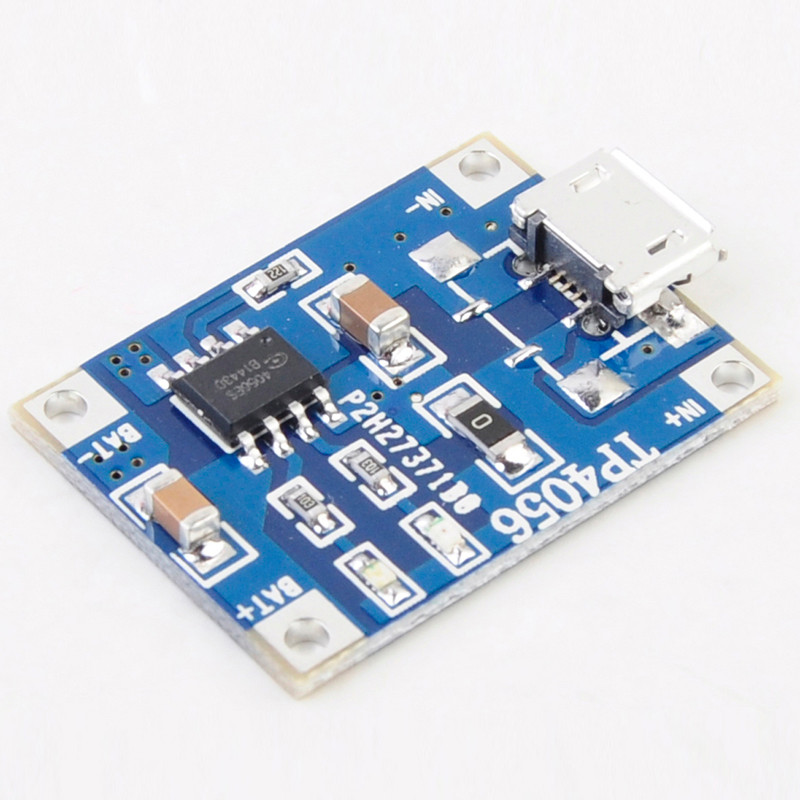

TP4056 1A Rechargeable Charging Board Charger Module Lithium Battery Plates MICRO USB Interface
Description
- Charge module: Linear charging
- Current: 1A adjustable
- Charge precision: 1.5%
- Input voltage: 4.5V-5.5V
- Full charge voltage: 4.2V
- Led indicator: red is charging Blue is full charged
- Input interface: micro USB.
- Work temperature: -10° ~ +85°
- Inversed polarity: NO
- Size: small to 25X19X10mm
Note
1. Ampere meter can only be connected to 5v input end of the module.
2. It is better that the charging current is 37% of the battery capacity. If you charge to the battery of 1000mAH, current of 400 is enough.
3. The connection wire should not be too thick.
4. Make sure the connect point is good.
5. If the input voltage is too high, like 5.2v, the current will be less than 1000mA, it is normal. It is protection function, auto-substract the charging current to avoid burn damage to chip.
6. NO Reveral polarity.
For the current self-regulation,the following table have proposed resistor value,the corresponding output and the current value
|
RPROG (k) |
IBAT (mA) |
|
30 |
50 |
|
20 |
70 |
|
10 |
130 |
|
5 |
250 |
|
4 |
300 |
|
3 |
400 |
|
2 |
580 |
|
1.66 |
690 |
|
1.5 |
780 |
|
1.33 |
900 |
|
1.2 |
1000 |


You must carefully read, and comply with the safety instructions and precautions in this Safety Instructions guide before charging, using your battery.
Failure to read, and follow Li-ion safety instructions, and warnings may result in fire, personal injury, and property damages if battery is charged and/or used improperly.
Lithium-ion battery cells may get extremely hot, explode or ignite, and cause serious injury if exposed to abuse conditions. Be sure to follow the safety warnings listed below.
What is short circuit?
Situation when battery positive (+) and negative (-) connect. The current will become extremely high because there is no resistance in the path to limit current flow. Short circuit will result in dangerously high temperature which may cause fire.
Warning:
The use of any unprotected li-ion cylindrical 18650 battery as a stand-alone device, including with e-cigarettes, vaporizer pens or other products, constitutes a DANGEROUS misuse of the battery cells that poses a SERIOUS RISK of personal injury or property damage. These cells are only for prototyping with proper electronic protection circuits, and not for stand-alone use.
These are high discharge current & high capacity 18650 Li-ion batteries. If mishandled or mistreated, these batteries can cause you SERIOUS INJURY. USE AT YOUR OWN RISK.
