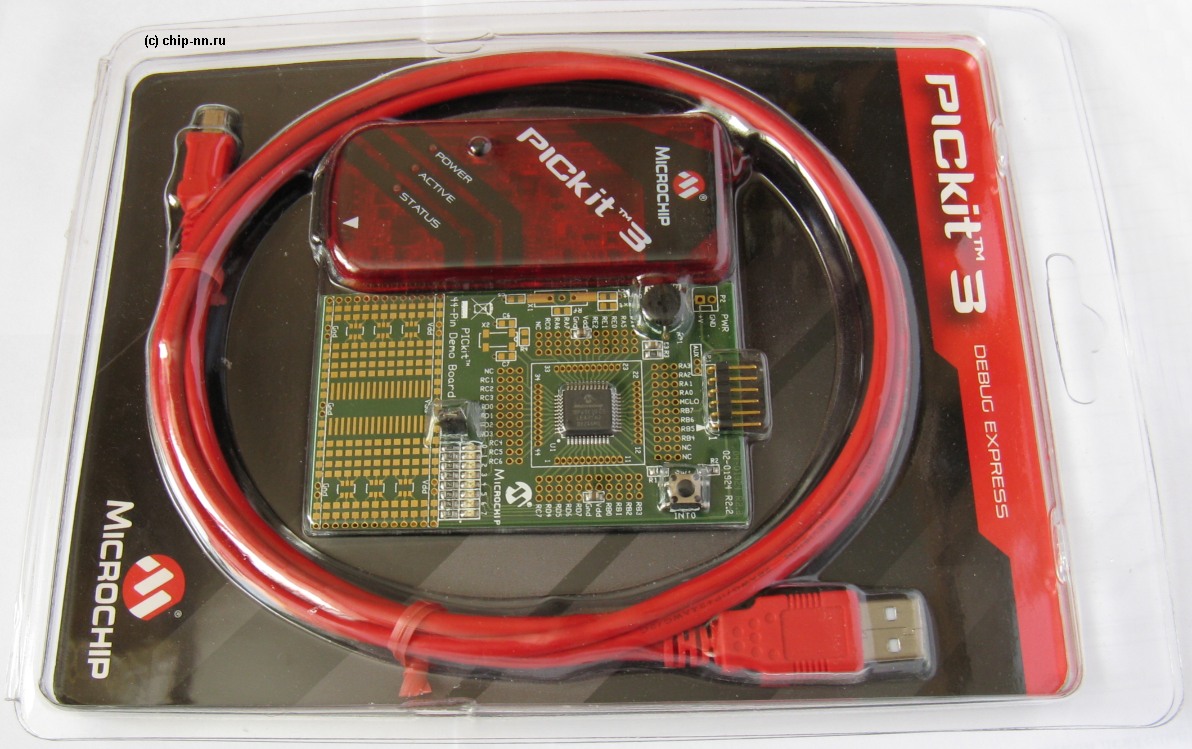

PICkit 3 Debug Express (DV164131)

PICkit 3 Debug Express(DV164131)

http://www.microchip.com/DevelopmentTools/ProductDetails.aspx?PartNO=dv164131

The PICkit 3 allows debugging and programming of PIC(R) and dsPIC(R) Flash microcontrollers using the powerful graphical user interface of the MPLAB Integrated Development Environment (IDE), and it does this all at a most affordable price point. This kit includes the 44-pin demo board with a PIC18F45K20 microcontroller and a USB cable.

Microchips FREE MPLAB X IDE software and the FREE Edition of the MPLAB XC C Compiler for a complete code development environment is available via free download on microchip.com

Features

• USB (Full speed 12 Mbits/s interface to host PC)
• Real-time execution
• MPLAB IDE compatible (free copy included)
• Built-in over-voltage/short circuit monitor
• Firmware upgradeable from PC/web download
• Totally enclosed
• Supports low voltage to 2.0 volts (2.0v to 6.0v range)
• Diagnostic LEDs (power, busy, error)
• Read/write program and data memory of microcontroller
• Erase of program memory space with verification
• Freeze-peripherals at breakpoint
• Program up to 512K byte flash with the Programmer-to-Go

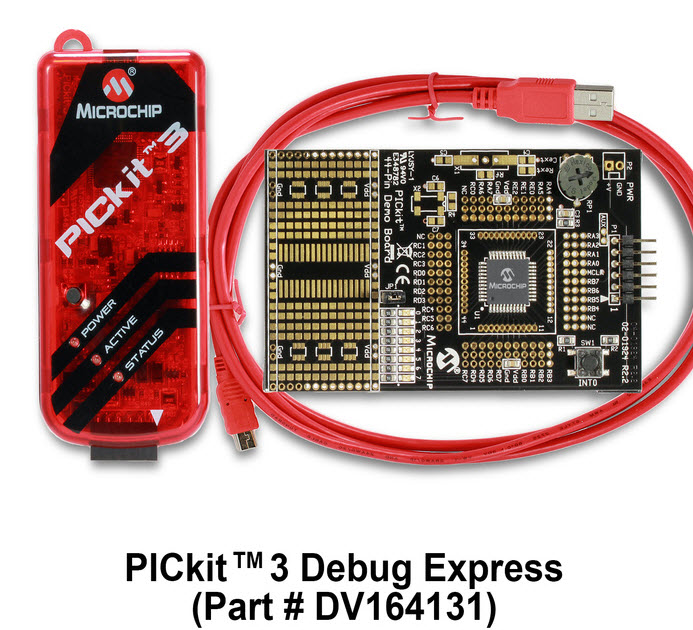

Pakcage Include:

• PICkit 3 In-Circuit Debugger
• 44-pin demo board with a PIC18F45K20 microcontroller
• USB Cable
