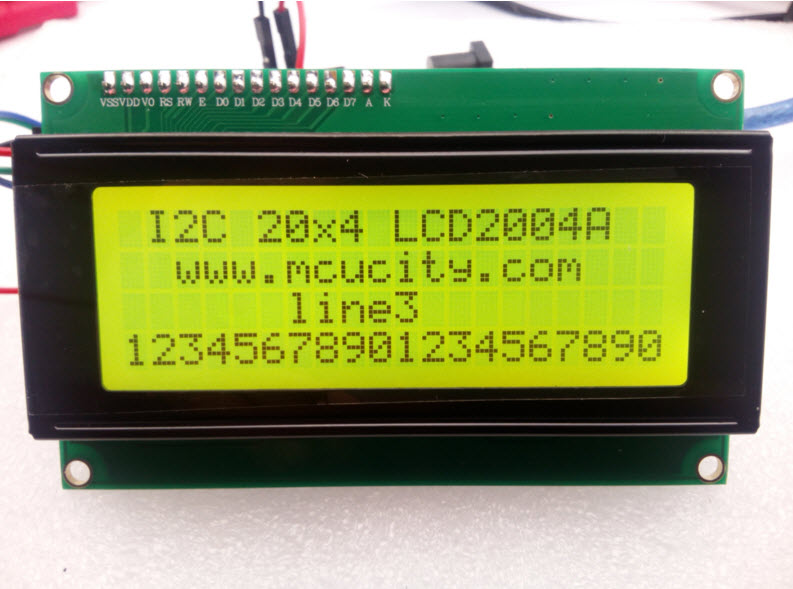

I2C LCD2004A LCD (Yellow Screen) 20x4 LCD with backlight

I2C LCD2004A LCD (Yellow Screen) 20x4 LCD with backlight
รหัสสินค้า M582
หมวดหมู่ จอ LCD 1602 2004 5110
ราคา 125.00 บาท
น้ำหนัก 50 กรัม
สถานะสินค้า พร้อมส่ง
ลงสินค้า 1 ก.ค. 2559
อัพเดทล่าสุด 7 พ.ย. 2567
จำนวน
Unit
หยิบลงตะกร้า
บัตรประชาชน
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay

It is another great blue backlight LCD display. As the pin resources of Arduino controller is limited, your project may be not able to use normal LCD shield after connected with a certain quantity of sensors or SD card. However, with this I2C interface LCD module, you will be able to realize data display via only 2 wires. If you already has I2C devices in your project, this LCD module actually cost no more resources at all. It is fantastic for Arduino based project.
LCD-210-01



Specification

#  I2C Address: 0x27  ( PCF8574T )

#  I2C Address: 0x3F  ( PCF8574AT )

#  Backlight (White character on Blue background)
#  Supply voltage: 5V
#  Size:98x60x18 mm
#  Come with IIC interface, which can be connected by DuPont Line



Package Include



1 X IIC/I2C/TWI 2004 Serial LCD Module


#include
#include
// Set the LCD address to 0x27 ,0x3F for a 16 chars and 2 line display
LiquidCrystal_I2C lcd(0x27, 20, 4);
LiquidCrystal_I2C lcd2(0x3F, 20, 4);


void setup()
{
Serial.begin(115200);
Serial.println("Test LCD2004 Adress 0x3F,0x27");

// initialize the LCD
 lcd.begin();
 lcd.setCursor(0,0);
lcd.print("--- TEST LCD2004 ---")
lcd.setCursor(0,1);
lcd.print("12345678901234567890")
lcd.setCursor(0,2);
lcd.print(" 0x27 adrrress LCD");
lcd.setCursor(0,3); lcd.print("--- mcucity.com ---"); //-------------------------------
lcd2.begin();
lcd2.setCursor(0,0);
lcd2.print("--- TEST LCD2004 ---")
lcd2.setCursor(0,1);
lcd2.print("12345678901234567890")
lcd2.setCursor(0,2);
lcd2.print(" 0x3F adrrress LCD");
lcd2.setCursor(0,3);
lcd2.print("--- mcucity.com ---");
delay(500); } void loop() { }
