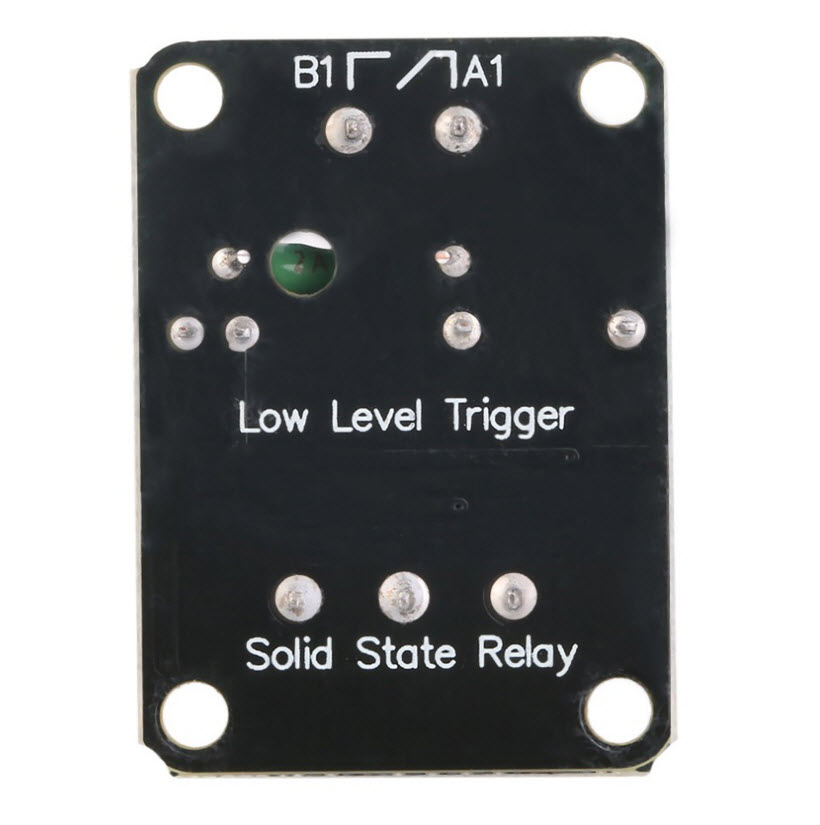

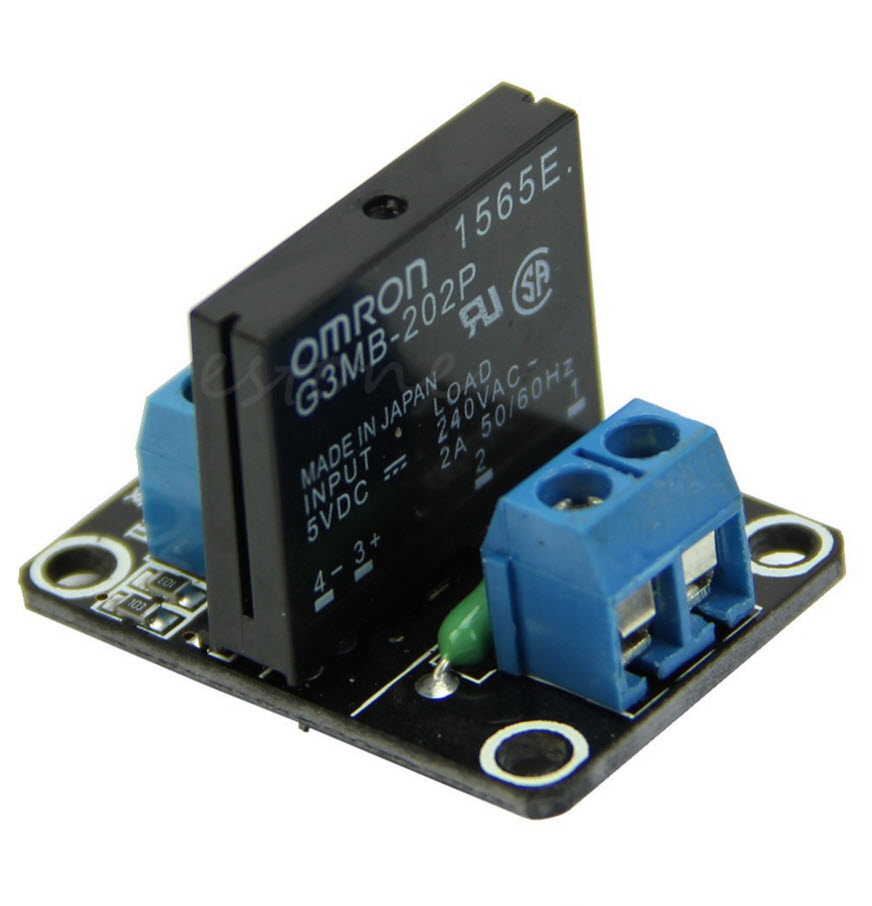

5V 1 Channel OMRON SSR High Level Solid State Relay Module 250V 2A For Arduino

5V 1 Channel OMRON SSR High Level Solid State Relay Module 250V 2A For Arduino

Features:

• Size: 25 * 34 * 25 (L * W * H) Weight: 13g
• Input Power: 5V DC (160MA)
• Input control signal voltage:
• (0-1.5V state low relay ON)
• (2.5-5V state high relay OFF)
• Voltage Current: 12.5mA
• Trigger Voltage:0-1.5V
• Trigger Current:2mA
• Voltage:5V
• Quiescent Current:0mA

Module interface:
Input section:
DC +: positive power supply (by relay voltage power supply)
DC-: connect power negative
CH: Relay module signal to trigger the end (low to trigger effective)

NOTE: Power must be DC Voltage, voltage must be consistent with the relay voltage
