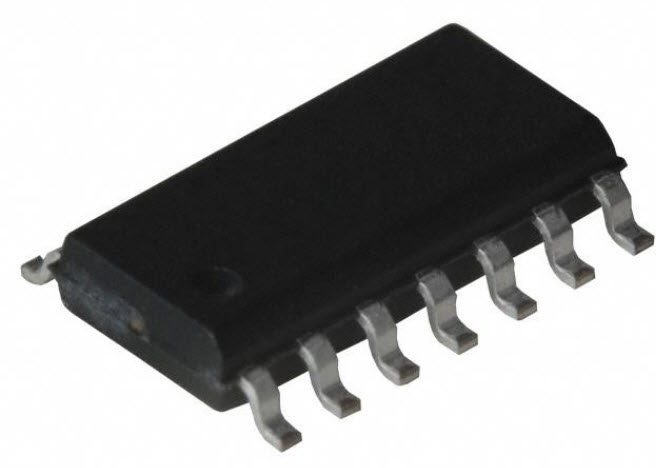

SN74HC126 (SOIC-8P14) Quadruple Bus Buffer Gates With 3-State Outputs

Description

These quadruple bus buffer gates feature independent line drivers with 3-state outputs. Each output is disabled when the associated output-enable (OE) input is low.

To ensure the high-impedance state during power up or power down, OE should be tied to GND through a pullup resistor; the minimum value of the resistor is determined by the current-sourcing capability of the driver

Features

• Wide Operating Voltage Range of 2 V to 6 V
• High-Current 3-State Outputs Interface Directly With System Bus or Can Drive Up To 15 LSTTL Loads
• Low Power Consumption, 80-µA Max I_CC
• Typical t_pd = 11 ns
• ±6-mA Output Drive at 5 V
• Low Input Current of 1 µA Max
