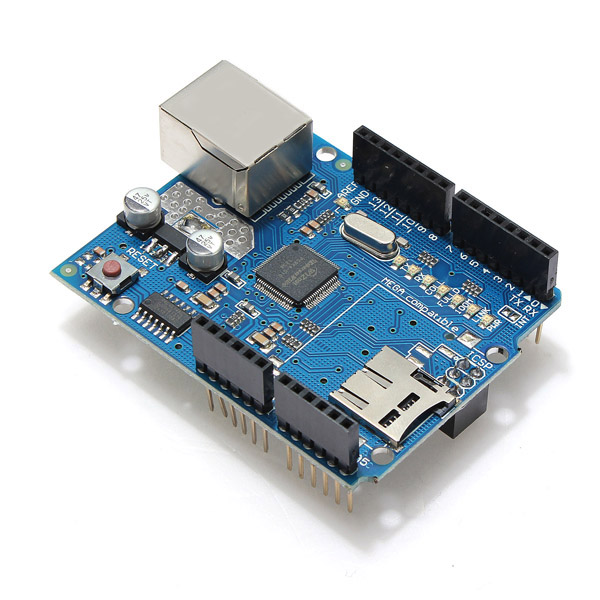

Ethernet Shield Module W5100 Micro SD Card Slot For Arduino UNO MEGA (V5)

Ethernet Shield Module W5100 Micro SD Card Slot For Arduino UNO, Mega 1280 2560

ความแตกต่างที่สำคัญ Ethernet Shield Module W5100  Version 5 vs Version 6 ที่สำคัญคือ

เรื่อง Version 6 PORT LAN support POE (Power over Ethernet)  แต่ต้องมี โมดูลเพิ่มเพื่อที่จะแปลงแรงด้นมาใช้กับบอร์ด โดยไม่ต้องใช้ไฟจาก DC JACK

แต่ Version 5 ไม่มีในส่วนนี้ ซึ่งไม่เกี่ยวกับการเขียนโปรแกรมควบคุมแต่อย่างใด

Description:

With this Ethernet Shield, your Arduino board can be used to connect to internet.
Can be used as server or client.
Directly plug puzzle board, no soldering required.
This is the latest version of the ethernet shield.
Fits all version of Arduino main board, 2009, UNO, mega 1280, mega 2560.
This Arduino Ethernet Shield which is based on the Wiznet W5100 ethernet chip gives you an easy way to get your Arduino online.

Specification:

Controller: w5100
Size: 7.4 x 5.4 x 2.4  (2.91 x 2.12 x 0.94inch)
// MAC address: 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0xED
byte mac[] = { 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0xED }

Feature:

It is directly supported by Arduino official Ethernet Library.
It adds a micro-SD card slot, which can be used to store files for serving over the network.
It is compatible with the Arduino Duemilanove (168 or 328), UNO as well as Mega (1280/2560) and can be accessed using the SD library.
The Wiznet W5100 provides a network (IP) stack capable of both TCP and UDP.
It supports up to four simultaneous socket connections.
Use the Ethernet library to write sketches which connect to the internet using the shield.

Package included:

1 x W5100 ethernet shield
