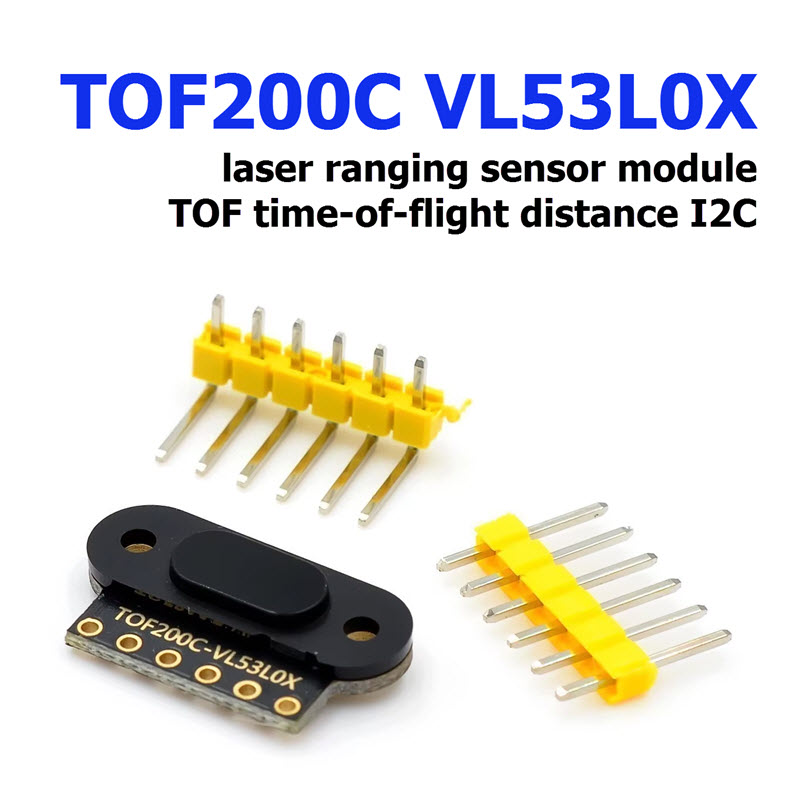

TOF200C VL53L0X I2C Time-of-Flight (ToF) Laser Ranging Sensor Laser Distance Module 940nm
| รหัสสินค้า | M4653 |
| หมวดหมู่ | วัดระยะทาง และ ความเคลื่อนใหว |
| ราคา | 100.00 บาท |
| น้ำหนัก | 5 กรัม |
| สถานะสินค้า | พร้อมส่ง |
| ลงสินค้า | 4 ธ.ค. 2567 |
| อัพเดทล่าสุด | 3 มิ.ย. 2568 |
| จำนวน | pcs |
หยิบลงตะกร้า
รายละเอียดสินค้า
VL53L0X Time-of-Flight (ToF) Laser Ranging Sensor Breakout 940nm GY-VL53L0XV2 Laser Distance Module I2
Descriptions:
The VL53L0X from ST Microelectronics is a time-of-flight ranging system integrated into a compact module. This board is a carrier for the VL53L0X, so we recommend careful reading of the VL53L0X datasheet (1MB pdf) before using this product.
The VL53L0 uses ST's FlightSense technology to precisely measure how long it takes for emitted pulses of infrared laser light to reach the nearest object and be reflected back to a detector, so it can be considered a tiny, self-contained lidar system. This time-of-flight (TOF) measurement enables it to accurately determine the absolute distance to a target without the object's reflectance greatly influencing the measurement. The sensor can report distances of up to 2 m (6.6 ft) with 1 mm resolution, but its effective range and accuracy (noise) depend heavily on ambient conditions and target characteristics like reflectance and size, as well as the sensor configuration. (The sensor's accuracy is specified to range from ±3% at best to over ±10% in less optimal conditions.)
Ranging measurements are available through the sensor's I2C (TWI) interface, which is also used to configure sensor settings, and the sensor provides two additional pins: a shutdown input and an interrupt output.
The VL53L0X is a great IC, but its small, leadless, LGA package makes it difficult for the typical student or hobbyist to use. It also operates at a recommended voltage of 2.8 V, which can make interfacing difficult for microcontrollers operating at 3.3 V or 5 V. Our breakout board addresses these issues, making it easier to get started using the sensor, while keeping the overall size as small as possible.
PIN Description
VDD Regulated 2.8 V output. Almost 150 mA is available to power external components. (If you want to bypass the internal regulator, you can instead use this pin as a 2.8 V input with VIN disconnected.)
VIN This is the main 2.6 V to 5.5 V power supply connection. The SCL and SDA level shifters pull the I⊃2;C lines high to this level.
GND The ground (0 V) connection for your power supply. Your I⊃2;C control source must also share a common ground with this board.
SDA Level-shifted I⊃2;C data line: HIGH is VIN, LOW is 0 V
SCL Level-shifted I⊃2;C clock line: HIGH is VIN, LOW is 0 V
XSHUT This pin is an active-low shutdown input; the board pulls it up to VDD to enable the sensor by default. Driving this pin low puts the sensor into hardware standby. This input is not level-shifted.
1x GY-VL53L0XV2V L53L0X Time-of-Flight Distance Sensor TOF
link*
*
*
เงื่อนไขอื่นๆ
VL53L0X World’s smallest Time-of-Flight ranging and gesture detection sensor
Features
• Fully integrated miniature module
– 940 nm laser VCSEL
– VCSEL driver
– Ranging sensor with advanced embedded
micro controller
– 4.4 x 2.4 x 1.0 mm
• Fast, accurate distance ranging
– Measures absolute range up to 2 m
– Reported range is independent of the
target reflectance
– Advanced embedded optical cross-talk
compensation to simplify cover glass
selection
• Eye safe
– Class 1 laser device compliant with latest
standard IEC 60825-1:2014 - 3rd edition
• Easy integration
– Single reflowable component
– No additional optics
– Single power supply
– I2C interface for device control and data
transfer
– Xshutdown (reset) and interrupt GPIO
– Programmable I2C address
Applications
• User detection for personal computers/
laptops/tablets and IoT (energy saving)
• Robotics (obstacle detection)
• White goods (hand detection in automatic
faucets, soap dispensers etc.)
• 1D gesture recognition.
• Laser assisted autofocus. Enhances and
speeds up camera autofocus system
performance, especially in difficult scenes (low
light levels, low contrast) or fast moving video
mode.
Description
The VL53L0X is a new generation Time-of-Flight
(ToF) laser-ranging module housed in the
smallest package on the market today, providing
accurate distance measurement whatever the
target reflectances unlike conventional
technologies. It can measure absolute distances
up to 2m, setting a new benchmark in ranging
performance levels, opening the door to various
new applications.
The VL53L0X integrates a leading-edge SPAD
array (Single Photon Avalanche Diodes) and
embeds ST’s second generation FlightSenseTM
patented technology.
The VL53L0X’s 940 nm VCSEL emitter (Vertical
Cavity Surface-Emitting Laser), is totally invisible
to the human eye, coupled with internal physical
infrared filters, it enables longer ranging
distances, higher immunity to ambient light, and
better robustness to cover glass optical crosstalk
Specifications: Output: IIC Compatibility: Arduino Sensor Type: Time-of-Flight Distance Accuracy: High precision Range: 200C, 400C Resolution: Advanced Features: **Advanced Time-of-Flight Technology** The TOF050C 200C 400C laser ranging sensor module is a cutting-edge device that utilizes time-of-flight distance technology to measure distances with remarkable accuracy. This sensor module is designed to be compatible with Arduino, making it an ideal choice for DIY enthusiasts and professionals alike. The sensor's high precision and advanced resolution ensure that it can capture accurate measurements in a variety of scenarios, from robotics to industrial automation. **Versatile Application Scenarios** The TOF050C sensor module is not just a distance sensor; it's a versatile tool that can be used in a multitude of applications. Whether you're building a heartbeat sensor for medical monitoring or an ultrasonic range sensor for autonomous vehicles, this module's IIC output ensures seamless integration with your Arduino projects. Its compact size and lightweight design make it easy to integrate into various devices, from wearable technology to home automation systems. **Reliable Performance and Durability** The TOF050C sensor module is built to last, with a robust construction that can withstand the rigors of real-world applications. Its high transmission range and reliable performance make it a trusted choice for professionals and hobbyists alike. The module's ability to measure distances with precision and consistency makes it an indispensable tool for anyone looking to add advanced sensing capabilities to their projects. Whether you're working on a lidar sensor scanner or an LVDT position sensor, the TOF050C sensor module is the perfect choice for your next project.
