FT232RLTYPE-C USB 2.0 3.3V 5.5V to TTL Serial Adapter Module for Arduino FT232 Pro Mini

Features:
1.Use the best FT232RL chip from USB2.0, and use a 500MA fuse (FUSE) to protect your USB power supply and device, resulting in more stable performance;
2.FT232RL USB to serial module USB to TTL level, USB2TTL protection version supports overcurrent protection version;
3.This product uses a brand new design and uses the FT232RL chip of USB 2.0 to convert USB into a serial port. There are two power supply versions available;
4.Each module passed the test of spontaneously collecting 10W bytes before leaving the factory;
5.Upgrade the TYPE-C interface power supply, support 3.3V 5V downloader burning cable, and choose between 5V or 3.3V interface levels.

Introduction to FT232R:
With the development of computer technology, parallel and serial ports have gradually disappeared on PCs, and even desktop computers now have few parallel ports. But for engineers, both parallel and serial ports are essential interfaces, especially serial ports. For computers without serial ports, the most convenient solution is to use a USB to serial port chip to create a virtual serial port. Many manufacturers have produced such chips, such as Silicon LABS's CP210x series, TI's TUSB3410 series, Nanjing Qinheng's CH34x series, FTDI's FT232 series, Prolific's PL230x series, Aike's ARK3116, and so on. From a stability perspective, the FT232 series is still the most reliable and can be used to debug programs with peace of mind without worrying about blue screen issues.
The FT232R chip is a single chip solution that generally does not require external devices. The crystal oscillator, USB matching resistor, and EEPROM for storing product information are already integrated internally. FT232R also has some useful functions, please refer to the FT232R data manual for specific details.

Parameter:
Introduce all signal ports and TTL/CMOS levels of the FT232RL chip;
RXD/TXD transceiver communication indicator light;
Adopting TYPE-C interface, USB power supply, optional 5V or 3.3V interface level (if other levels are required, target voltage can be directly provided on VCC and GND pins).

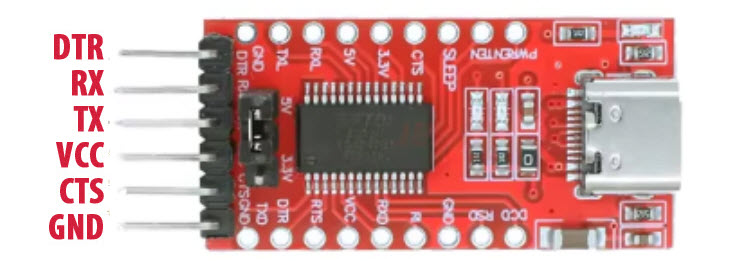

The six pin definitions are: DTR RX TX VCC CTS GND

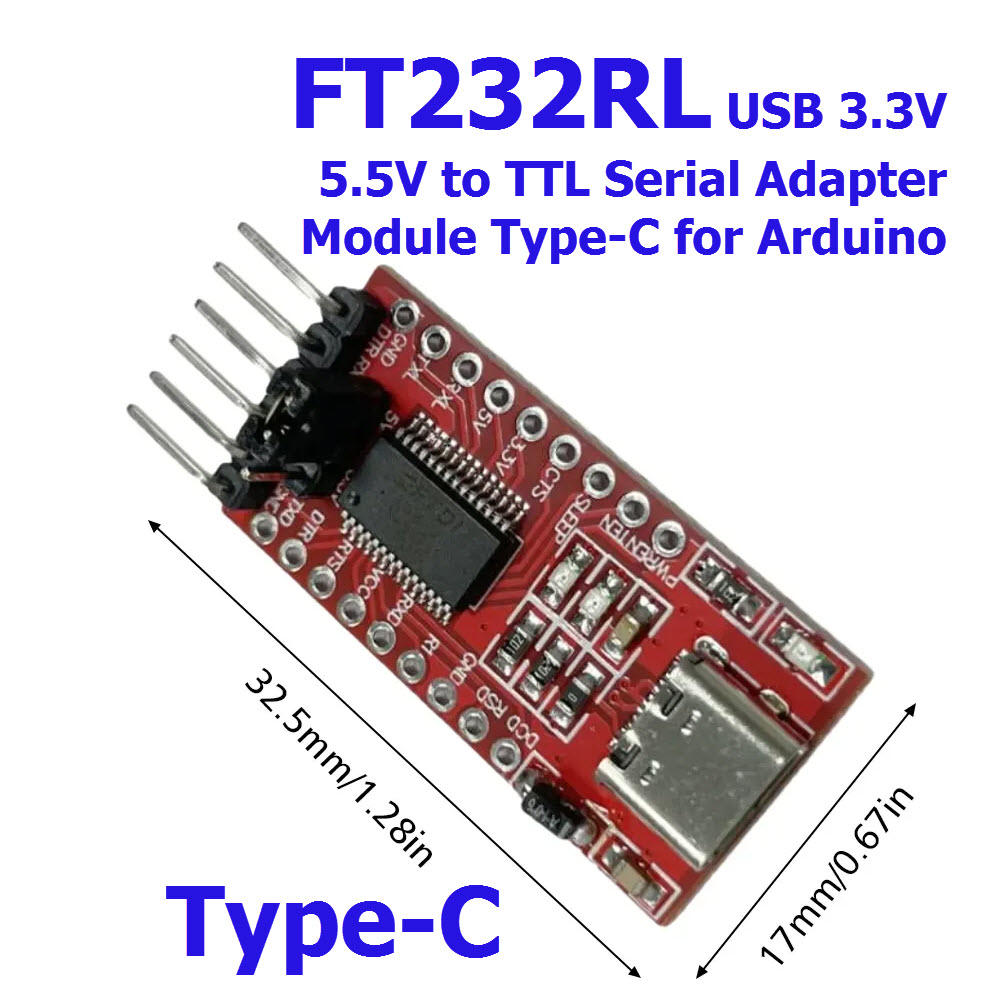

PCB board size: 17mm * 32.5mm
Module size: 36mm * 17mm (with row pins)
FT232 driver download link: https://pan.baidu.com/s/1x9Zwpr35d-R0rPVFrg7cAw
