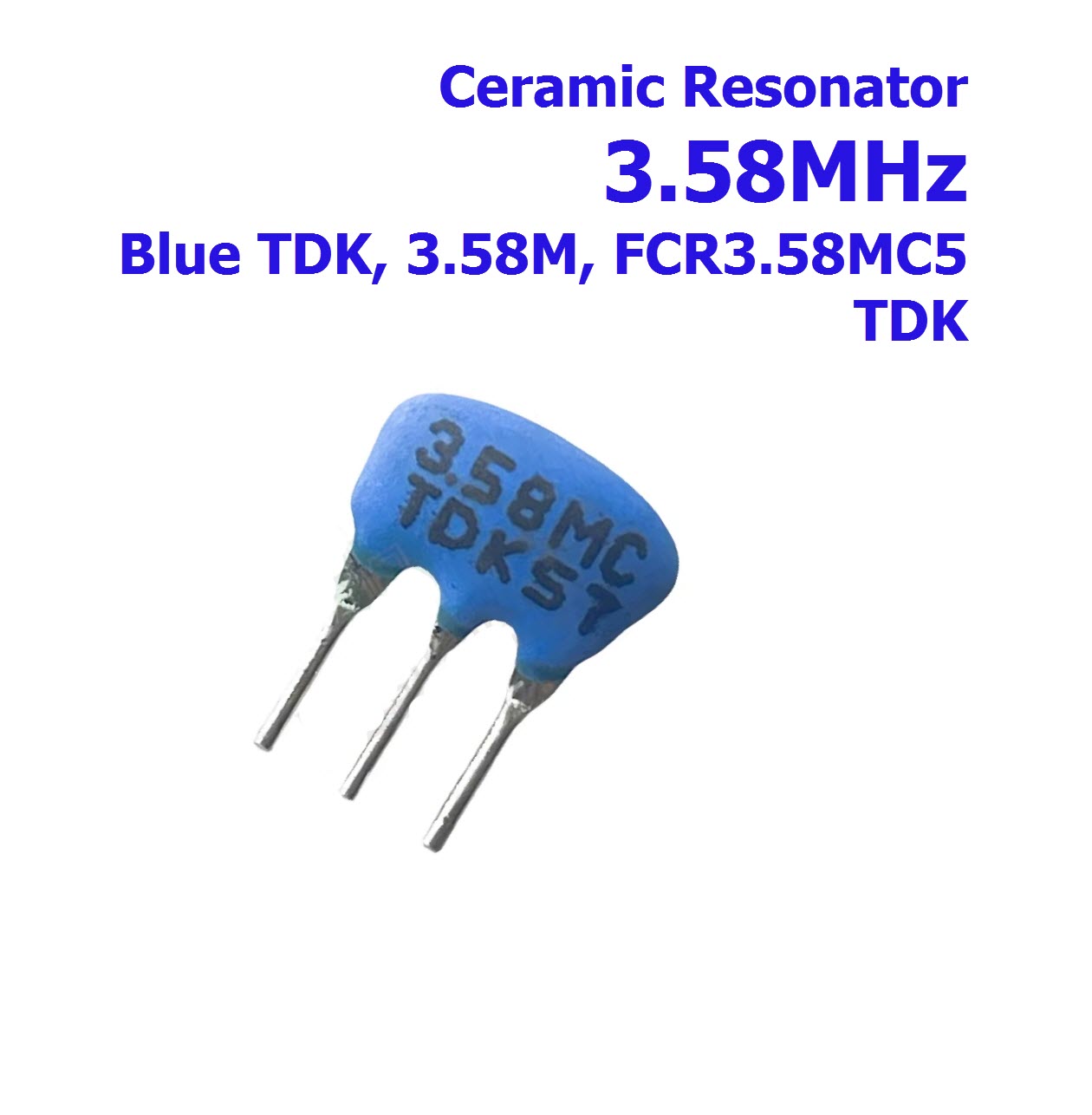

TDK Ceramic Resonator FCR3.58MC5 3.580MHZ 3.58MHZ Blue Straight 3-pin

Ceramic Resonator 3.58MHz, 3-Pins

TDK Ceramic Crystal Oscillator Ceramic Oscillator FCR3.58MC5 3.580MHZ 3.58MHZ Blue Straight 3-pin

Ceramic Resonators(Lead) FCR Series
FEATURES
• The FCR series are samll leaded ceramic resonators that use
thickness shear mode or 3rd over tone thickness mode eleme
of piezo ceramics with both 3.45 to 10.0MHz and 16.0 to
50.0MHz.
• The products with built-in capacitances have a dielectric eleme
formed two capacities. This eliminates the external loading
capacitors, thus simplifying circuit requirements.
• Optimization of the temperature characteristics of both the
piezoelectric materials and dielectric materials has resulted in
stable oscillating frequency.
• Ammo packing is available for various automatic insert machi
(1500pieces/box). Short lead type and L-bend lead type are a
available, please contact TDK.
• Setting or matching of oscillating circuit condition which correspond to new models IC, application IC or custom IC are avai
able, please contact TDK.
• The products don’t contain Lead at solder of internal joint and
solder plating oflead wire. You can use both Pb free solder (S
3Ag-0.5Cu) and Sn-Pb eutectic solder on your production
