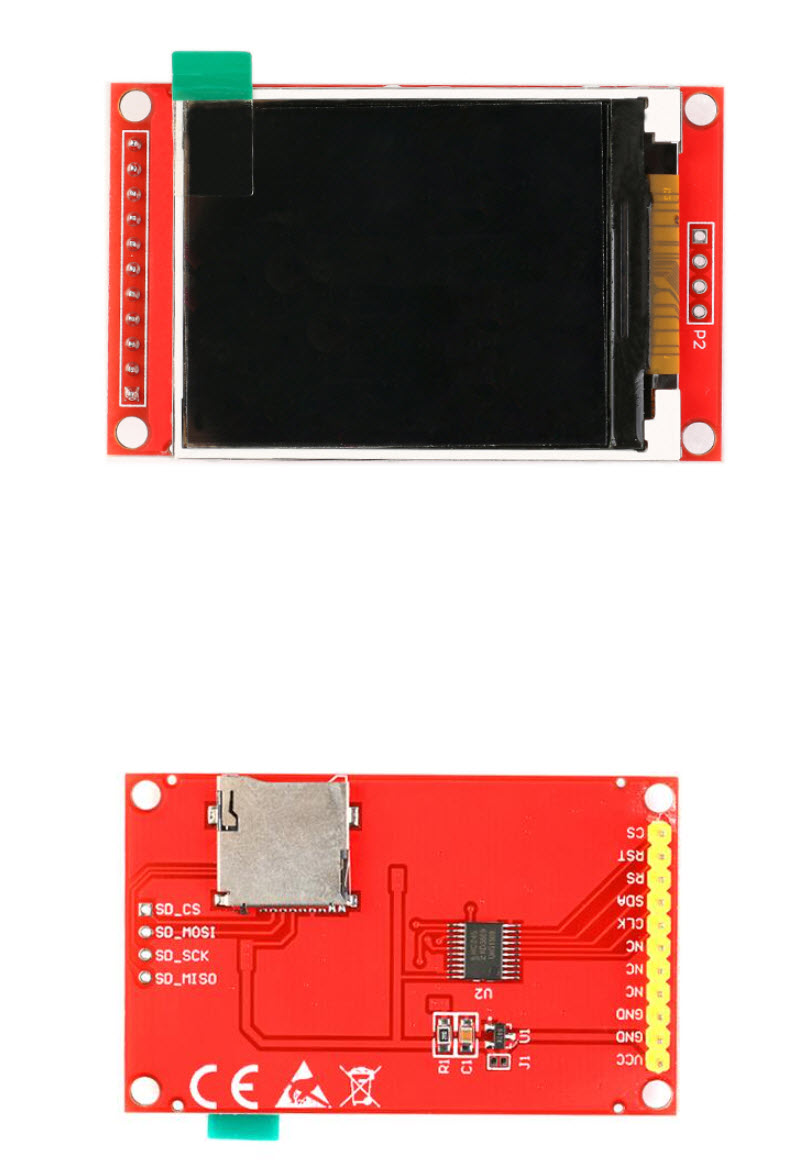

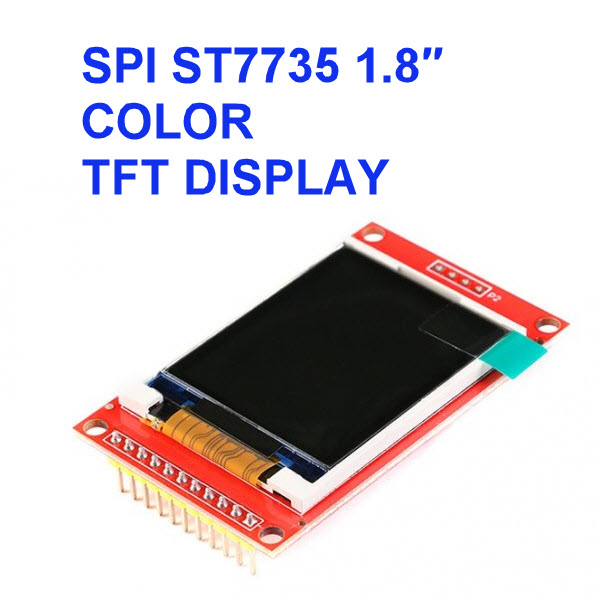

1.8 Inch TFT LCD Display Module ST7735S Controller Drive Board

1.8" inch 4 IO SPI serial Full Color 128x160 TFT LCD Display ST7735 Module For Arduino UNO Demo


Resolution: 128X160

Drive IC:ST7735

Module interface: 4 wire SPI interface

Support analog SPI and hardware SPI.

At least 4 IO can be driven.

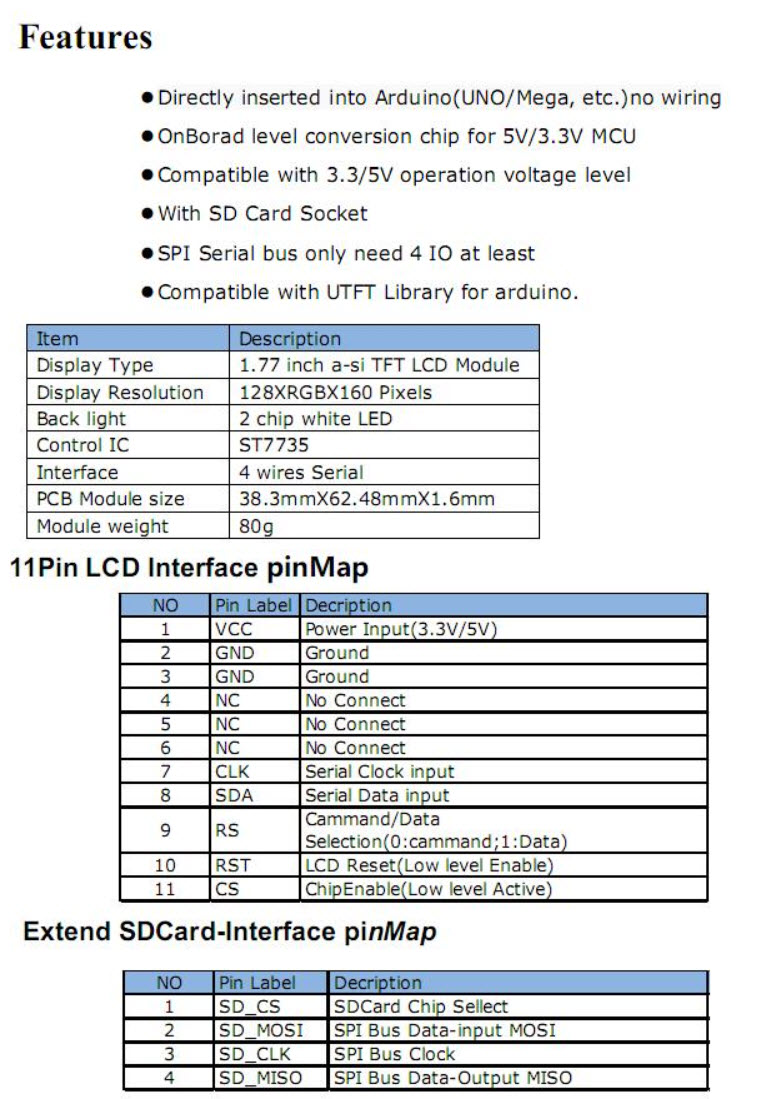

Features :

1 support Arduino chip microcomputer line without any connection.

2 integrated voltage regulator IC, support 5V or 3.3V power supply

3 board level conversion scheme, the truly perfect compatible IO 5V/3.3V level,

Support all kinds of single chip IO connection

4 integrated SD card expansion circuit,

5 reserved SPI FLASH font circuit, convenient application

Package list :

1PCS* 1.8'' LCD Module ( Demo board not included )
