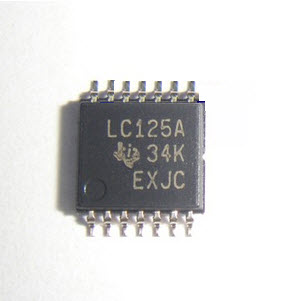

SN74LVC125A (TSSOP-14) Quadruple Bus Buffer Gate With 3-State Outputs

SN74LVC125A (TSSOP-14) Quadruple Bus Buffer Gate With 3-State Outputs

Description

This quadruple bus buffer gate is designed for 1.65-V to 3.6-V V_CC operation.

The SN74LVC125A device features independent line drivers with 3-state outputs. Each output is disabled when the associated output-enable (OE) input is high.

To ensure the high-impedance state during power up or power down, OE should be tied to V_CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

Inputs can be driven from either 3.3-V or 5-V devices. This feature allows the use of this device as a translator in a mixed 3.3-V/5-V system environment.

Features

• 3-State Outputs
• Separate OE for all 4 buffers
• Operates From 1.65 V to 3.6 V
• Specified From –40°C to 85°C
  and –40°C to 125°C
• Inputs Accept Voltages to 5.5 V
• Max t_pd of 4.8 ns at 3.3 V
• Typical V_OLP (Output Ground Bounce)
  < 0.8 V at V_CC = 3.3 V, T_A = 25°C
• Typical V_OHV (Output V_OH Undershoot)
  > 2 V at V_CC = 3.3 V, T_A = 25°C
• Latch-Up Performance Exceeds 250 mA
  Per JESD 17
• ESD Protection Exceeds JESD 22
  • 2000-V Human-Body Model
  • 200-V Machine Model
  • 1000-V Charged-Device Model
