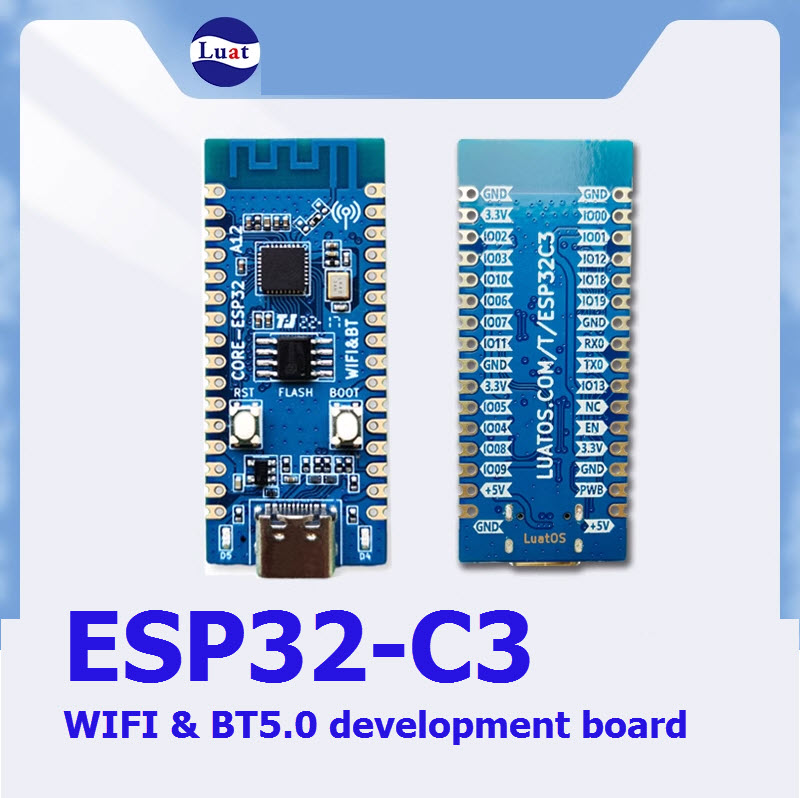

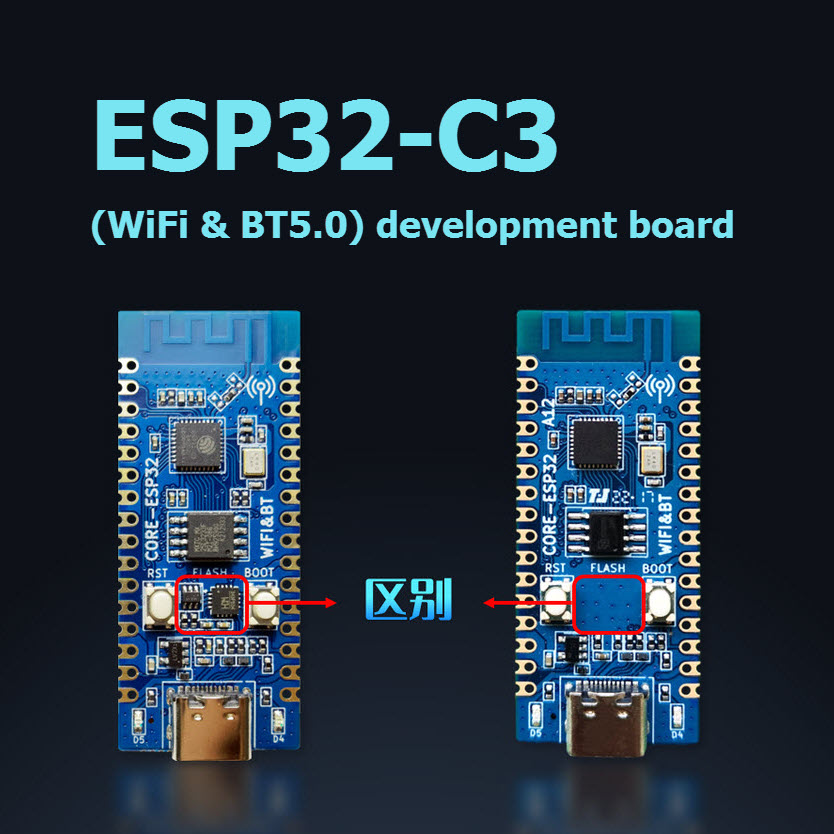

ESP32-C3 RISC-V (WiFi+Bluetooth 5.0) module / development board

This is an entry-level development board based on Espressif ESP32-C3 SoC, which is equipped with a RISC-V 32-bit single-core processor, operating frequency up to 160 MHz, supports secondary development without using other microcontrollers or processors. The ESP32-C3 is an highly integrated low power Wi-Fi and Bluetooth system-level chip (SoC), designed for various applications such as internet of things (IoT), mobile devices, wearable electronics, smart home, etc.



Onboard ESP-C3-xx module that comes with a PCB antenna

Onboard CH340, USB to UART converter

RGB 3-in-1 LED, convenient for secondary development

USB port for power input, firmware programming, or UART debugging

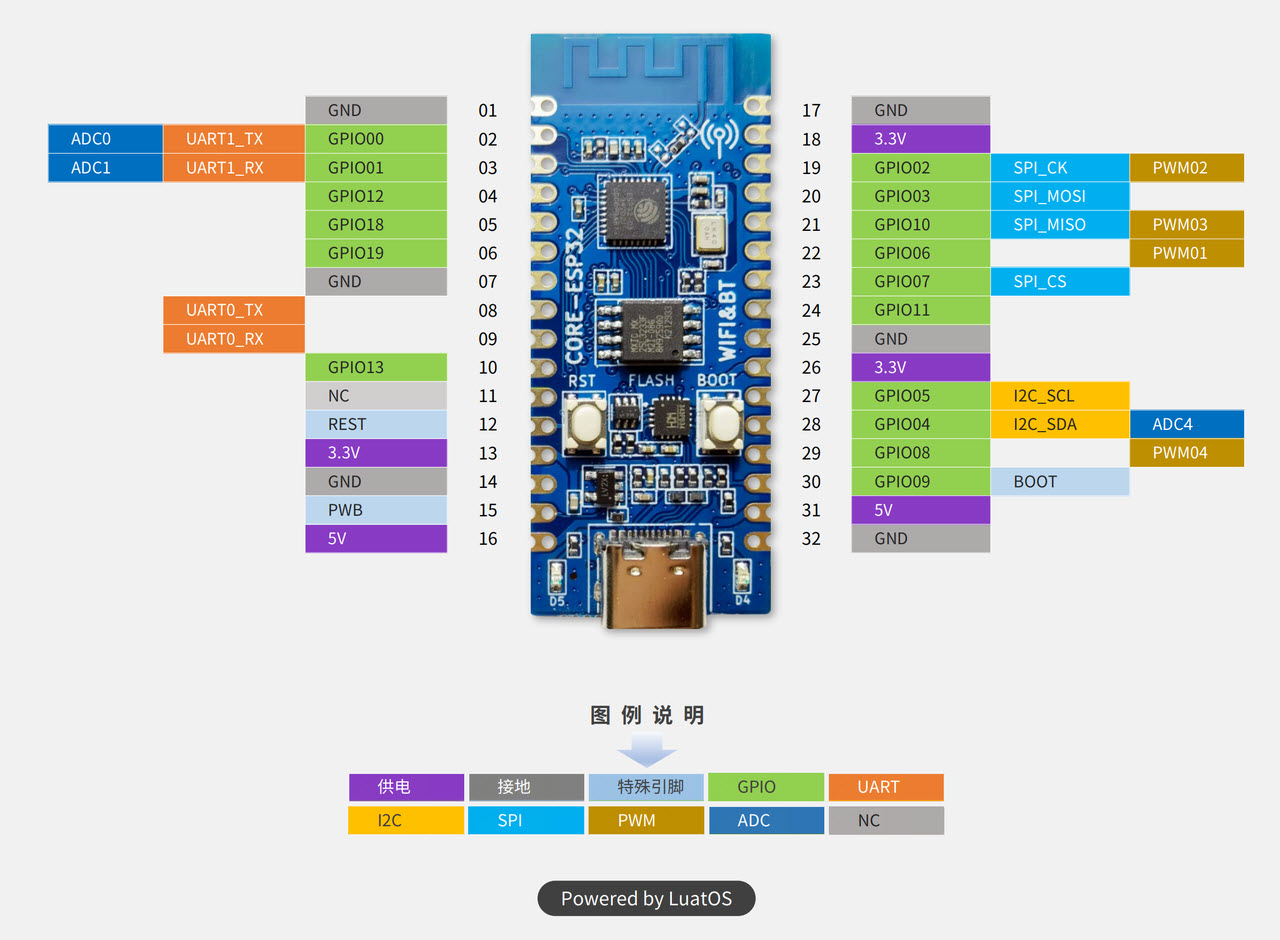

2x15pin extension headers, breakout all the I/O pins of the module

2x keys, used as reset or user-defined

Complete Wi-Fi 802.11b/g/n, 1T1R mode data rate up to 150Mbps

Support BLE5.0 and rate support: 125Kbps, 500Kbps, 1Mbps,2Mbps

Onboard ESP32-C3 chip, 32-bit RISC-V single-core processor, supports a clock frequency of up to 160 MHz, with 400 KB SRAM, 384 KB ROM, 8KB RTC SRAM

Support UART/PWM/GPIO/ADC/I2C/I2S interface, temperature sensor, pulse counter

SMD-38 package

Integrated Wi-Fi MAC/ BB/RF/PA/LNA/BLE

Support multiple sleep modes, deep sleep electric current is less than 5uA

UART rate up to 5Mbps

Support STA/AP/STA+AP mode and mix mode

Support Smart Config (APP)/AirKiss (WeChat) of Android and IOS One-click network configuration

Support UART port local upgrade and remote firmware upgrade (FOTA)

General AT commands can be better understand

Support secondary development, integrated Linux development environment

ESP-C3-32S module acquiesce in using the built-in 2MByte Flash, meanwhile support external Flash version



The ESP-C3-xxKit suit for IoT applications such as:



Smart home

Intelligent building

Industrial automation

Wearable devices

IP camera

Intelligent agriculture

*
*




*










*
