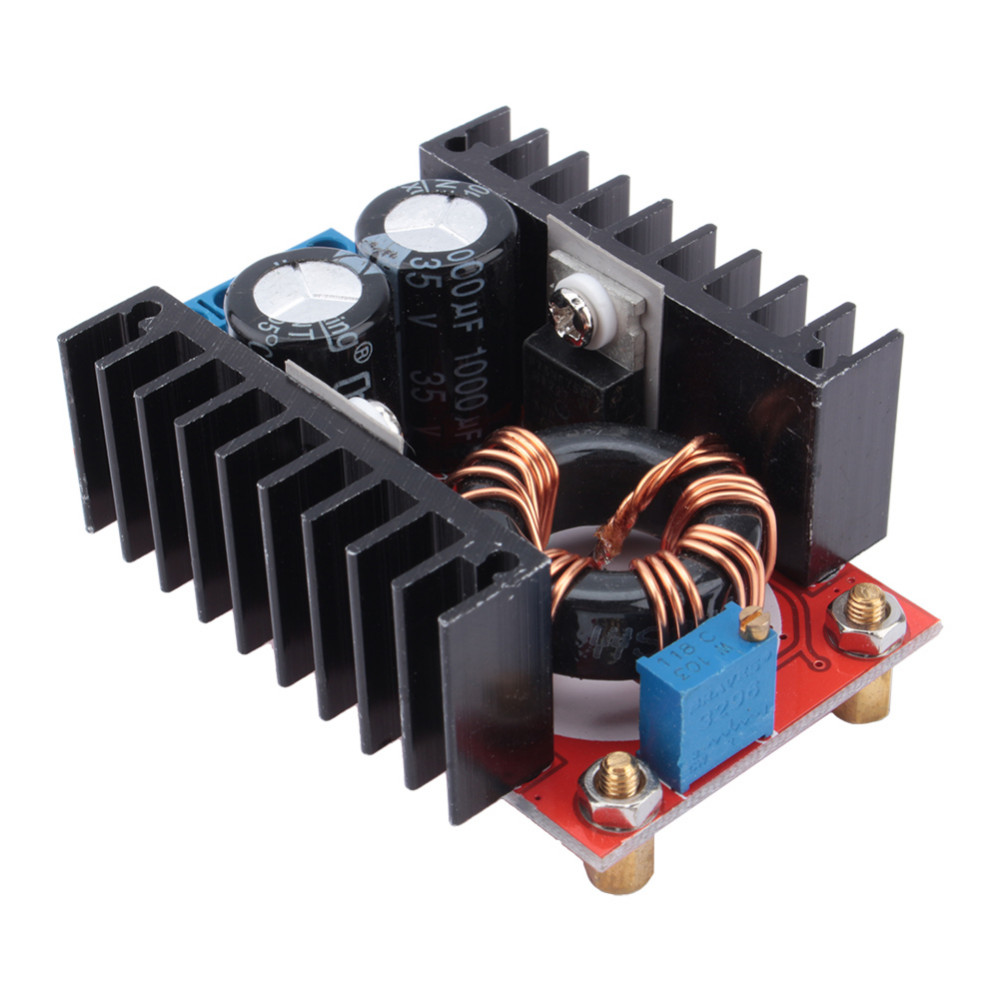

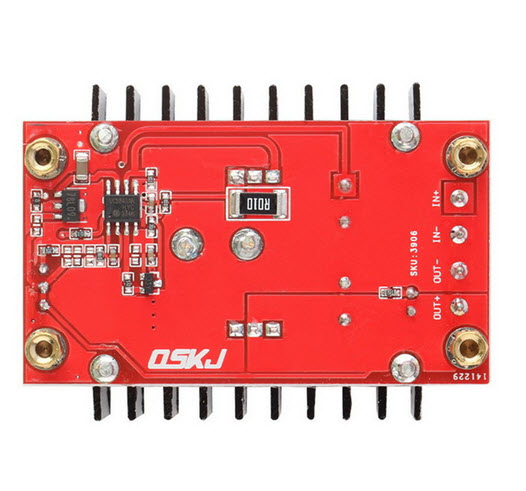

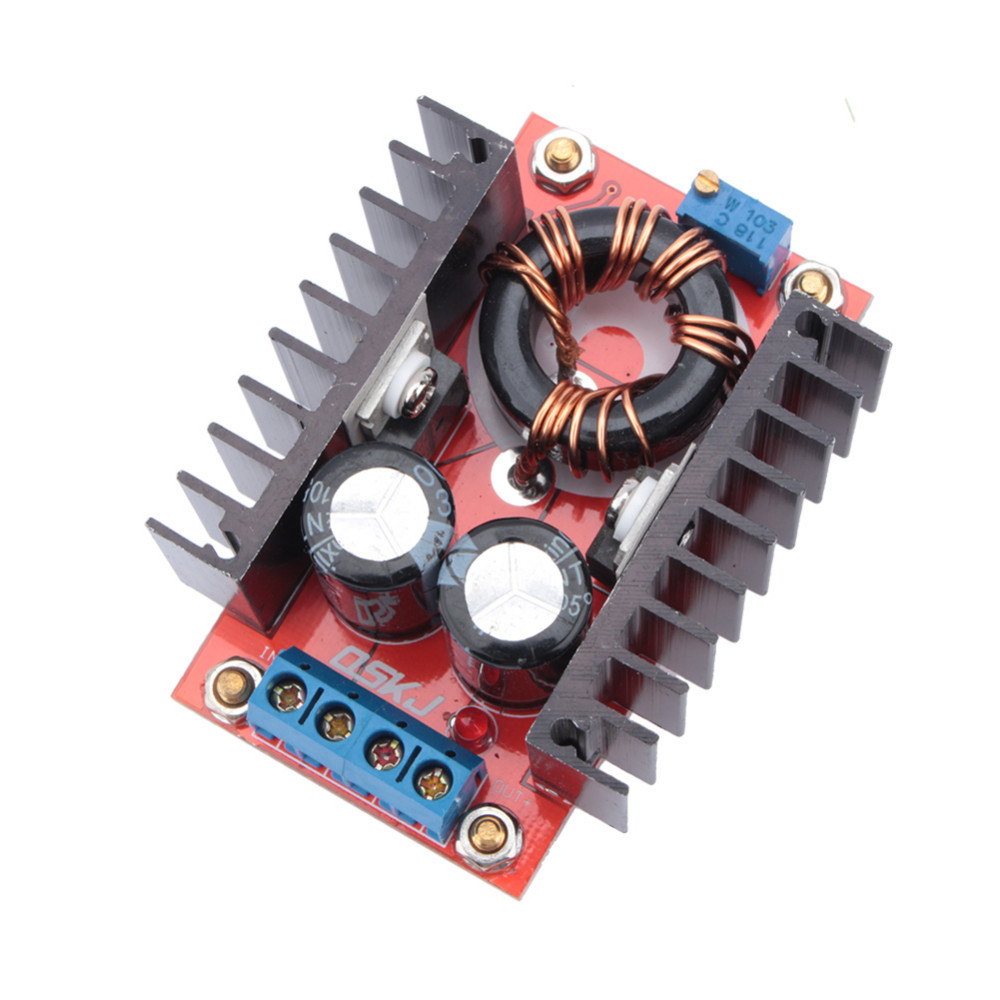

150W Adjustable DC 10V-32V to 12V-35V Step up Boost Power Supply Module

Features:
Non-isolated step-up module
Input Voltage: DC 10V-32V
Output Voltage: DC12V-35V (continuously adjustable)
Output Current: 10A (Max.)
Input Current: 16A (Max.) (more than 10A, please enhance heat dissipation)
Output Power:Natural cooling 100 w (MAX), strengthening heat 150 w (MAX)
Conversion Efficiency: 94% (Testing under condition of 16V input 19V 2.5A output)
Working Temperature: Industry level - 40 - +85 deg C (for ambient temperature more than 40 deg C, please reduce power, or using cooling fan)
Full-loaded Temperature Rise: 45 deg C
No-load Current: 25mA (typical)
Short Circuit Protection: No (Please install fuse or protection circuit at input terminal)
Input Reverse Protection: No (Please connect a diode in series at input terminal)
Size (L x W x H): Approx. 2.6 x 1.3 x 1 inch / 6.5 x 3.3 x 2.35 cm

Applications:
DIY Adjustable Car Power Supply: Connecting input terminal to 12V power source, then the output voltage would be continuously adjustable from 14V to 35V. But please be reminded that the output voltage cannot be lower than input voltage.
Car PC Power Supply: Connect input terminal to 12V power source, and adjust the output voltage for your notebook.
Boost Charger. Allow you to charge the storage battery over 12V with 12V power supply, to charge 24V storage battery e.g.
Charger for Your Electronic Device

Package include:
1 x 150W Adjustable DC 10V-32V to 12V-35V Step up Boost Power Supply Module
