LM1117MPX-3.3V (SOT-223) 800mA Low-Dropout Linear Regulator

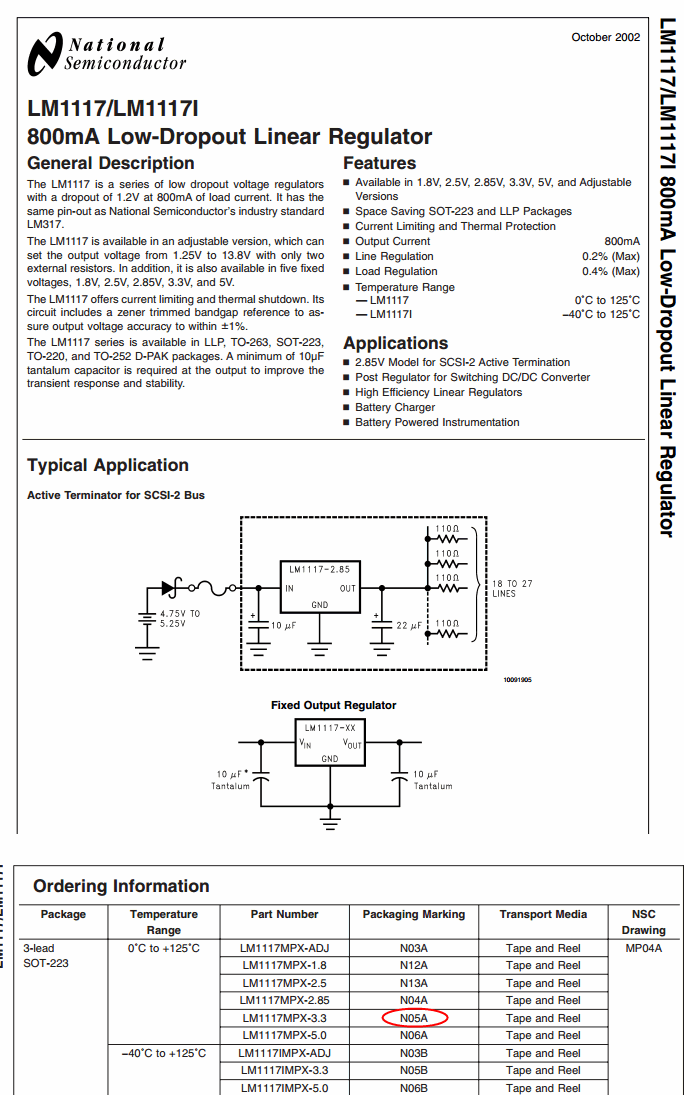

DATASHEET LM1117MPX-3.3

Description

The LM1117 is a low dropout voltage regulator with a dropout of 1.2 V at 800 mA of load current.

The LM1117 is available in an adjustable version, which can set the output voltage from 1.25 to 13.8 V with only two external resistors. In addition, it is available in five fixed voltages, 1.8 V, 2.5 V, 3.3 V, and 5 V.

The LM1117 offers current limiting and thermal shutdown. Its circuit includes a Zener trimmed bandgap reference to assure output voltage accuracy to within ±1%.

A minimum of 10-µF tantalum capacitor is required at the output to improve the transient response and stability.

Features

• Available in 1.8 V, 2.5 V, 3.3 V, 5 V,
  and Adjustable Versions
• Space-Saving SOT-223 and WSON Packages
• Current Limiting and Thermal Protection
• Output Current 800 mA
• Line Regulation 0.2% (Maximum)
• Load Regulation 0.4% (Maximum)
• Temperature Range
  • LM1117: 0°C to 125°C
  • LM1117I: –40°C to 125°C
