PL2303HX USB To RS232 TTL (Windows XP Vista ,Win7 )

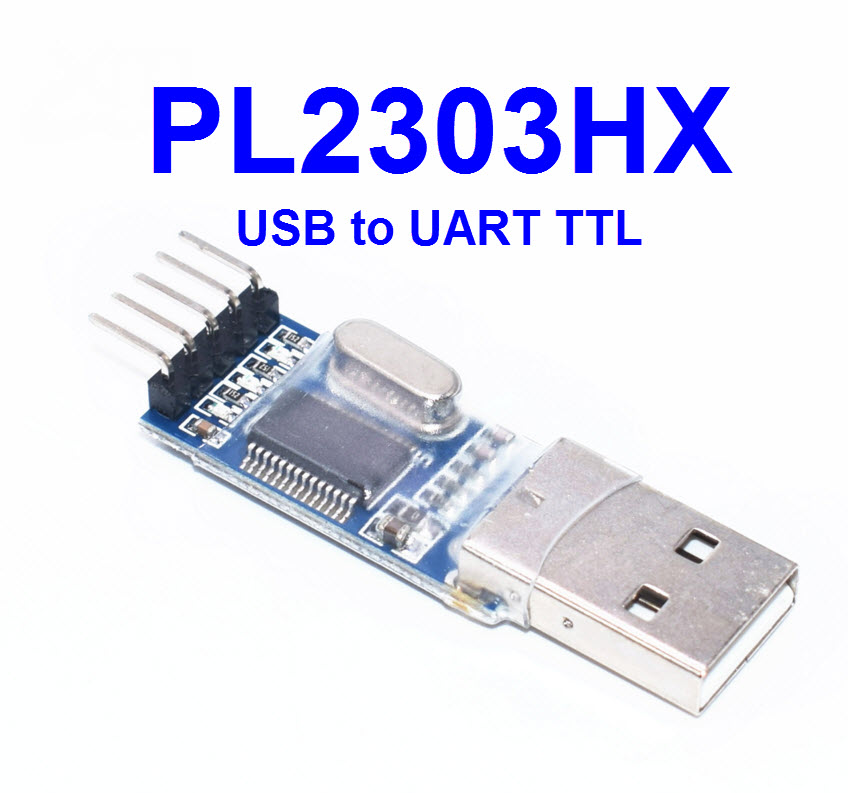

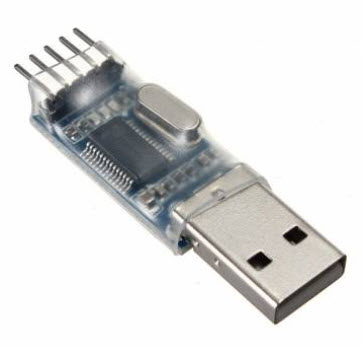

PL2303HX USB To RS232 TTL Chip Converter Adapter Module
PL2303HX USB To RS232 TTL (Windows XP ,Vista ,Win7 )

Description:

Adopt imported controller PL2303HX,which can stabilize the flash with high speed
500mA self recovery fuse for protection
Two data transmission indicator can monitor data transfer status in real time

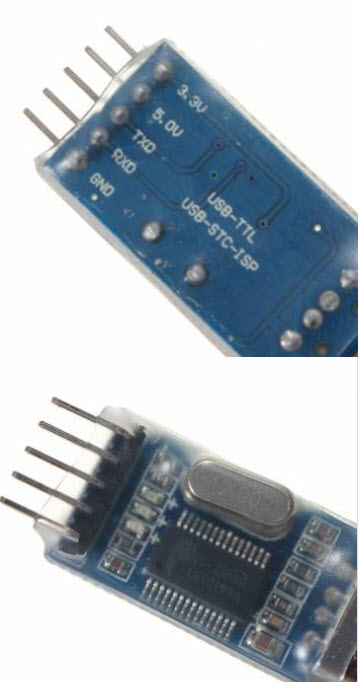

Reserve 3.3V and 5V pin interface,easy for the DDWRT of different voltage system that need power
The entire board is coated by high quality transparent heat-shrinkable sleeve,making the PCB in insulation state from outside,
so that the board won't burnt down by material short cut.
Electrostatic package,insures the board will not be damaged before use
Support WIN7 system

Application:

All kinds of satellites set-top box upgrade
Router,HDD,ADSL,broad band modem firmware upgrade or cracked upgrade
cellphone,XBOX360,GPS serial communication,vehicle inspection and test,DVD flash and so on
Burn write STC MCU,NXP MCU,renesas MCU,NEC MCU and so on
Simple UART communication,commonly used UART debugging tools in supper terminal
USB signal transferred to TTL signal,may be used by electronic enthusiasts

Package included:

1x PL2303HX USB Module

Windows Driver Installer Setup Program
(For PL2303 HXA, XA, HXD, EA, RA, SA, TA, TB versions)

(For PL2303 HXA, XA, HXD, EA, RA, SA, TA, TB versions)
Installer version & Build date: 1.12.0 (2015-10-7)
Windows XP (32 & 64-bit) WDM WHQL Driver: v2.1.51.238 (10/22/2013)
- Windows XP Certified WHQL Driver
- Windows Certification Report
- Compatible with Windows 2000SP4 & Server2003

Windows Vista/7/8/8.1/10 (32 & 64-bit) WDF WHQL Driver: v3.6.81.357 (09/04/2015)
– Windows 10 Certified WHQL Driver
– Windows Vista, 7, 8, 8.1 Certified WHQL Driver
– Windows Certification Report
– Compatible with Windows Server2008, 2008R2, 2012, 2012R2
– Auto-download driver via Windows Update (Windows 7, 8, 8.1, 10)

- Installer Language Support: English (default), Chinese (Traditional and Simplified), Japanese
- For Prolific USB VID_067B&PID_2303 and PID_2304 Only
- Includes Certification Report, User Manual, Driver Release Notes & CheckChipVersion Tool
- Installer supports silent install (add “/s” parameter when running program)

NOTE:

Windows 8/8.1/10 are NOT supported in PL-2303HXA and PL-2303X EOL chip versions.
Run PL2303 CheckChipVersion tool program in Windows XP/Vista/7 to check chip version.
Windows XP, 2000, 98 and Windows ME driver technical support is discontinued.
Prolific recommends to use PL-2303HXD (HX Rev D) or PL2303TA chip.

http://prolificusa.com/pl-2303hx-drivers/

http://prolificusa.com/files/PL2303_Prolific_DriverInstaller_v1.12.0.zip

http://prolificusa.com/portfolio/pl2303hx-rev-d-usb-to-serial-bridge-controller/
