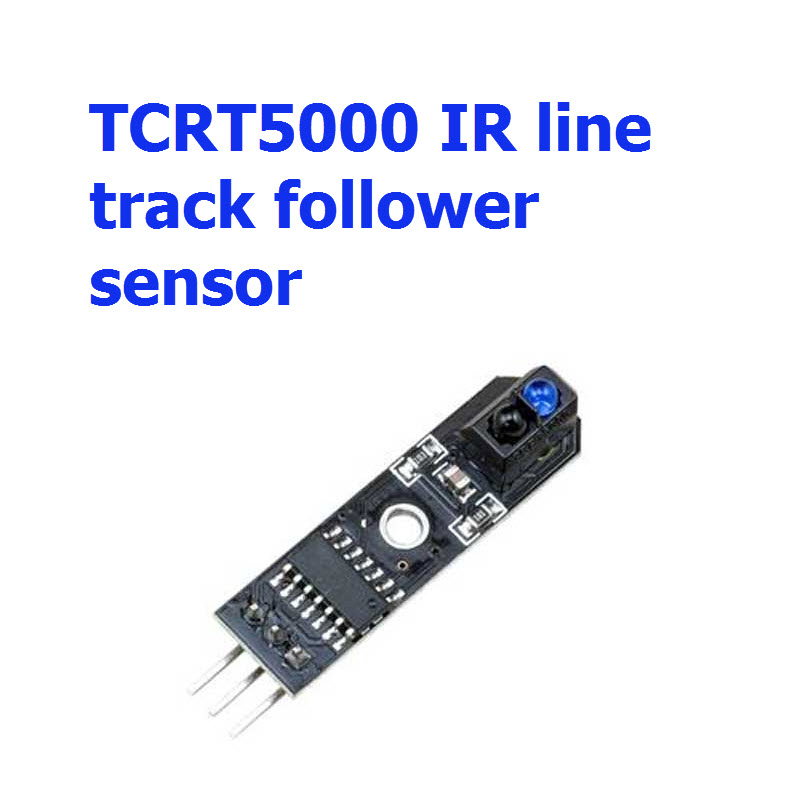

TCRT5000 IR line track follower sensor

TCRT5000 Infrared Reflective Sensor Module IR Barrier Line Track Photoelectric Switch

Description:

TCRT5000 infrared sensor emits infrared emitting diode continuously when no infrared rays emitted or reflected back is reflected back but the strength is not large enough, the phototransistor has been in the off state, and the output terminal of the module is high, indicating that the diode has been in the off state; in the object to be detected within the detection range, and the intensity of the reflected infrared rays is large enough, phototransistor saturated, and the output terminal of the module is low, the indicator LED is lit.

Feature:

Using infrared reflective sensor TCRT5000
The detection distance: 1mm ~ 8mm apply focal distance of 2.5mm
The comparator output signal clean, good waveform, driving ability, more than 15mA
With a multi-turn precision potentiometer adjustable sensitivity adjustment
The working voltage of 3.3V ~ 5V
The output format: digital switching outputs (0 and 1)
A fixed bolt holes for easy installation
A small PCB board size: 3.2 x 1.4cm
Using a wide voltage LM393 comparator

Usage:

Meter pulse data sampling
Fax paper shredders detection
Obstacle detection
Black and white line detection

Package included:

1 x TCRT5000 infrared reflective sensor module

More Detailed Photos:
