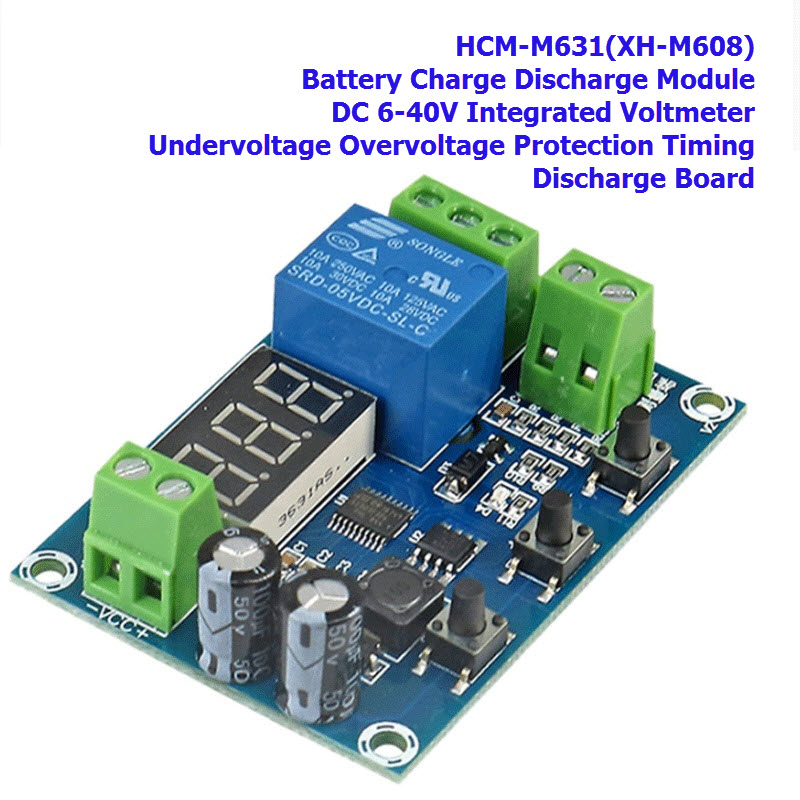

HCW-M631 (XH-M608) Battery Charge Discharge Module DC 6-40V Integrated Voltmeter Undervoltage Overvoltage Protection Timing Discharge Board

Press and display

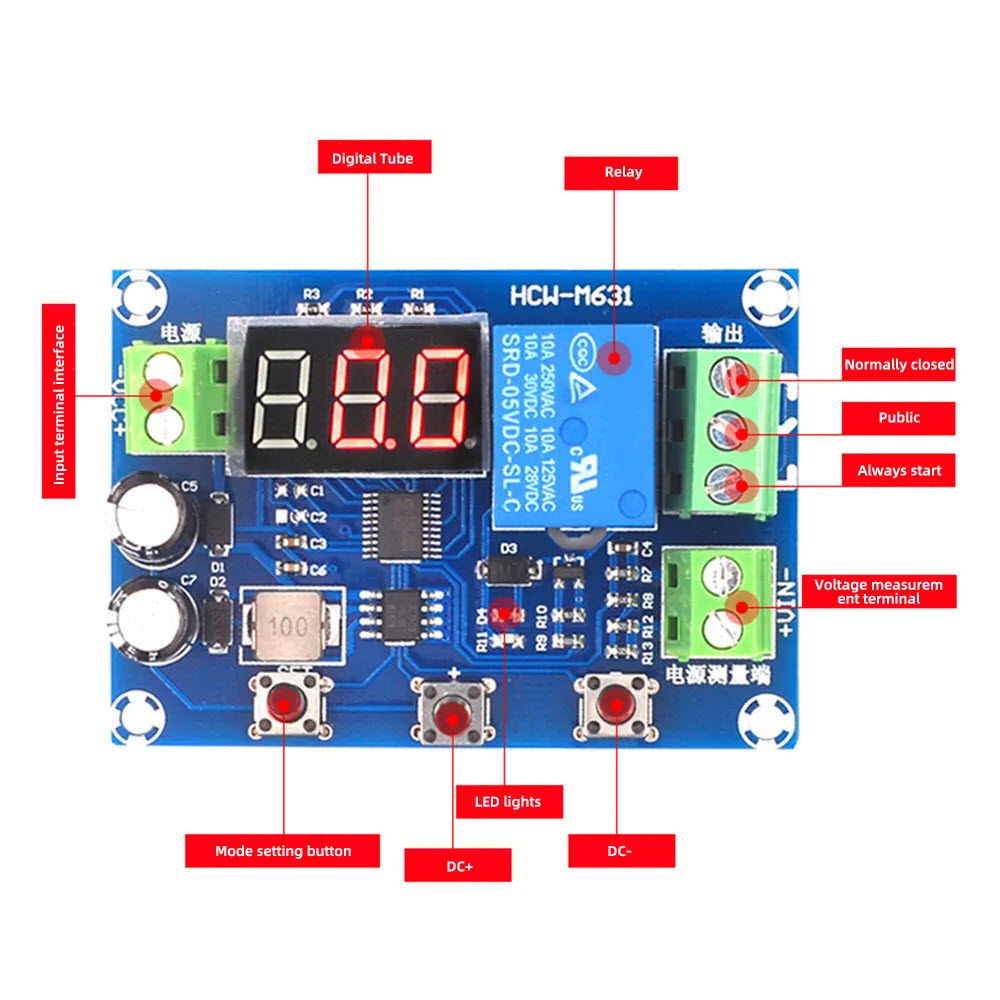

Set key: SET plus key: ADD key: DEC;Power on the display voltage

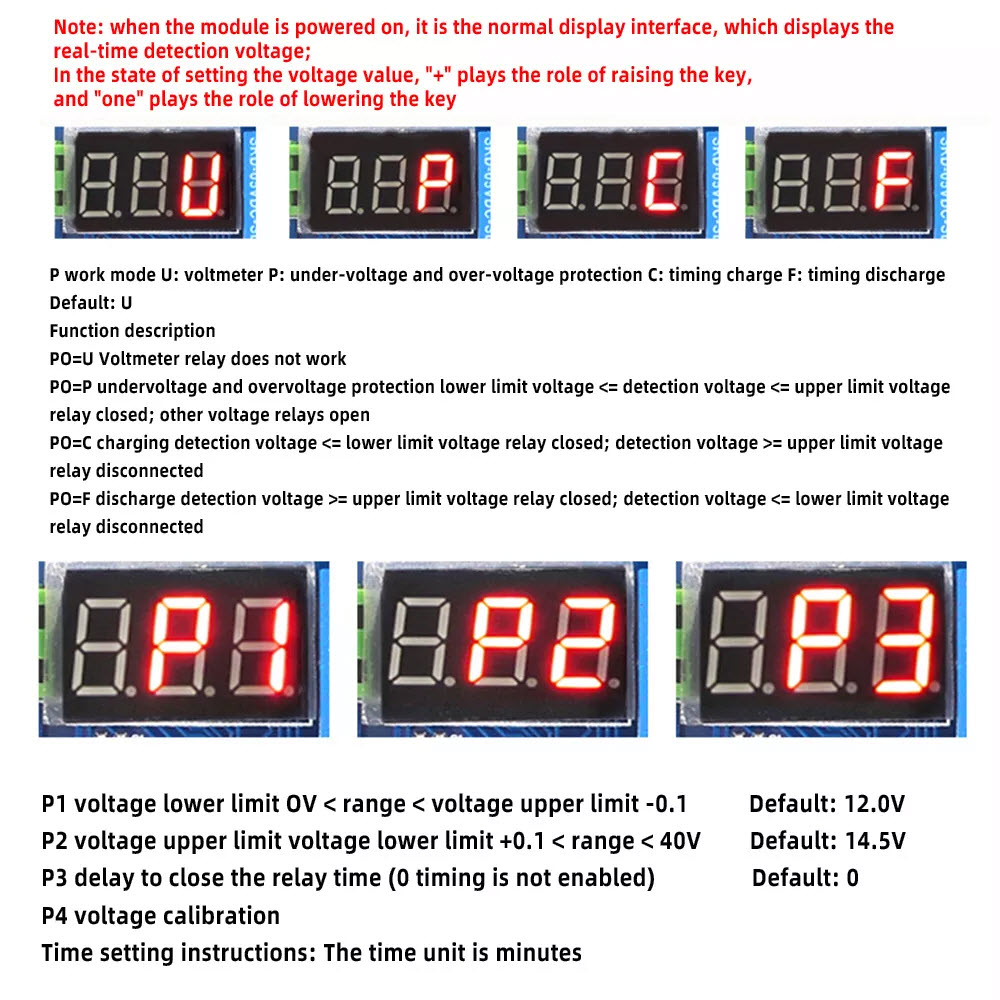

Normal display - short press SET - P0 - short press ADD / DEC - P0 P1 P2 switch

1. P0 - Short press SET - Display U - Short press ADD / DEC - U P C D Switch

2. P1 - Short press SET - Display 12.0 - Short press ADD / DEC - parameter Slow switch

                                    Long press ADD / DEC - parameter to quickly switch

3. P2 - Short press SET - Display 14.5 - Short press ADD / DEC - parameter Slow switch

                                    Long press ADD / DEC - parameter to quickly switch

4 P3 - Short press SET - Display A.00 - Short press ADD / DEC - Parameter Slow switching decimal point does not blink

                                Long press ADD / DEC - parameter to quickly switch

① Normal display - short press ADD - display voltage lower limit

Display voltage lower limit - Short press SET - Normal display

② Normal display - short press DEC - display voltage limit

Display voltage upper limit - Short press SET - Normal display

③ normal display - long press DEC - display countdown time

Display countdown time - short press SET - decimal point flashing start countdown

Countdown time - long press SET - display countdown set time decimal point does not flash stop countdown

④ non-menu parameters - long press ADD - normal display

① ② ③ ④ between each other quickly switch
