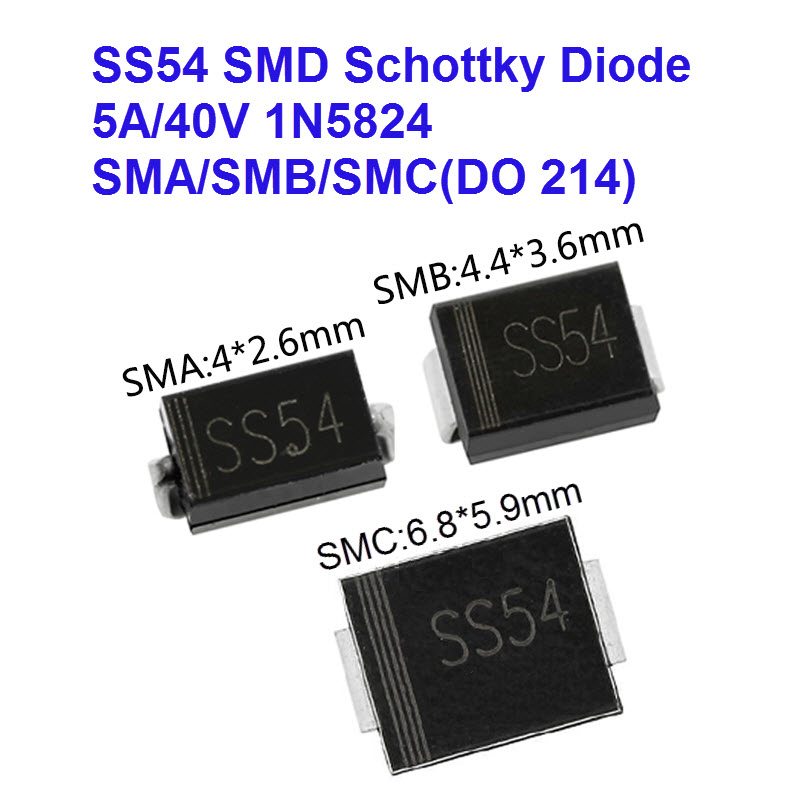

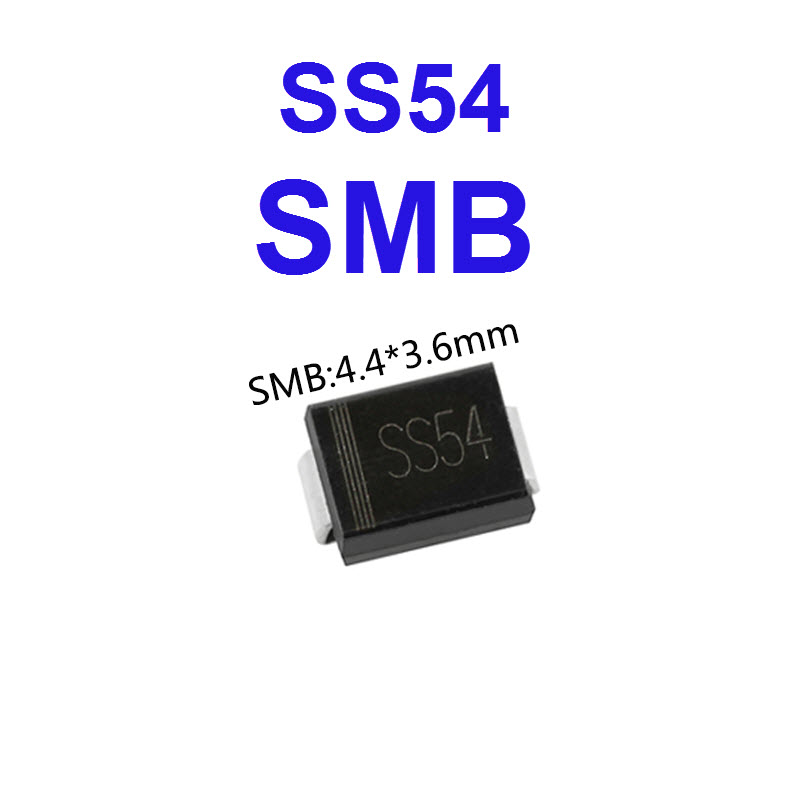

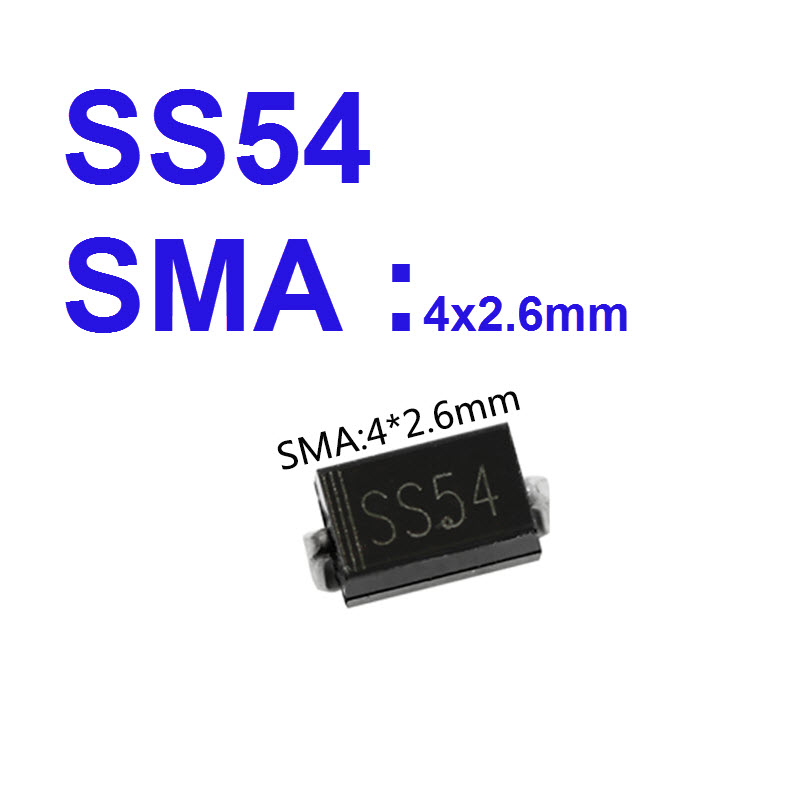

SS54 SMD Schottky Diode 5A/40V 1N5824 SMA/SMB/SMC(DO 214)

SS54 SMD Schottky Diode 5A/40V 1N5824 SMA/SMB/SMC(DO 214)

https://en.wikipedia.org/wiki/1N58xx_Schottky_diodes

Overview

The 1N5817, 1N5818 and 1N5819 are 1 amp diodes, available in 20, 30 and 40 volt ratings respectively. The 1N5820, 1N5821 and 1N5825 are A amp diodes, available in 20, 30 and 40 volt ratings respectively. The 1N5823, 1N5824 and 1N5825 are 5 amp diodes, available in 20, 30 and 40 volt ratings respectively.

The 1N5812 are typically packaged in the DO-41 axial through-hole case, and in many cases are interchangeable with the 1N4001 series. The 1N582x are typically packaged in the DO-201AD through-hole case, and in many cases are interchangeable with the 1N54xx series.

Being Schottky diodes, the 1N58xx parts have roughly half the forward voltage drop of the 1N400x/1N540x series diodes, which improves efficiency in applications where they are usually forward-biased, such as power converters. The cost is a lower voltage rating and higher reverse leakage (approximately 1 mA at room temperature and increasing with temperature).

Common surface-mount relatives of the 1N58xx series are the SS1x and SS3x series, such the SS14 (1 Ampere) and SS34 (3 Ampere) surface-mount parts.
