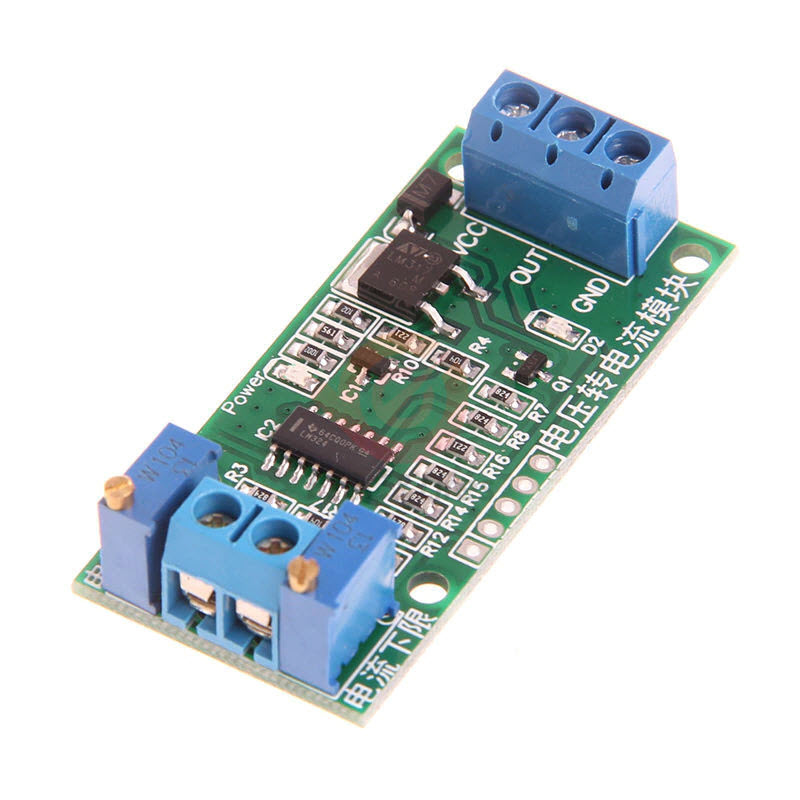

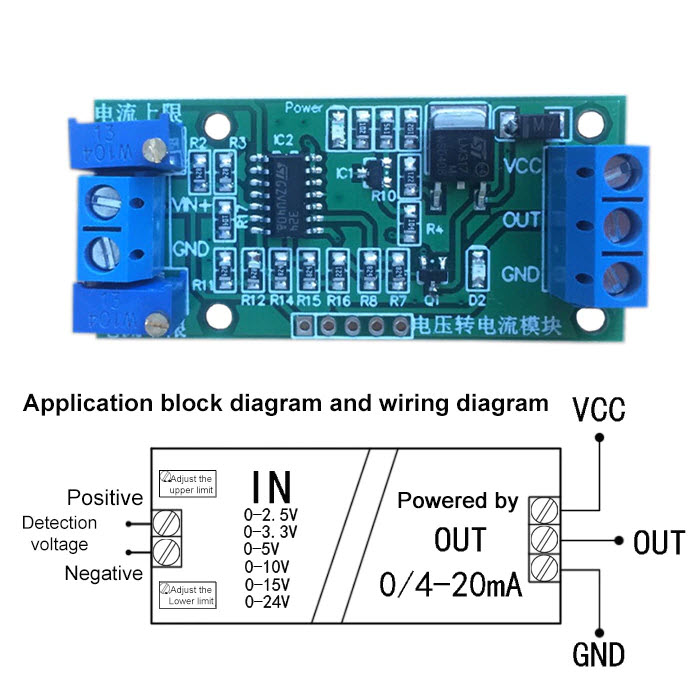

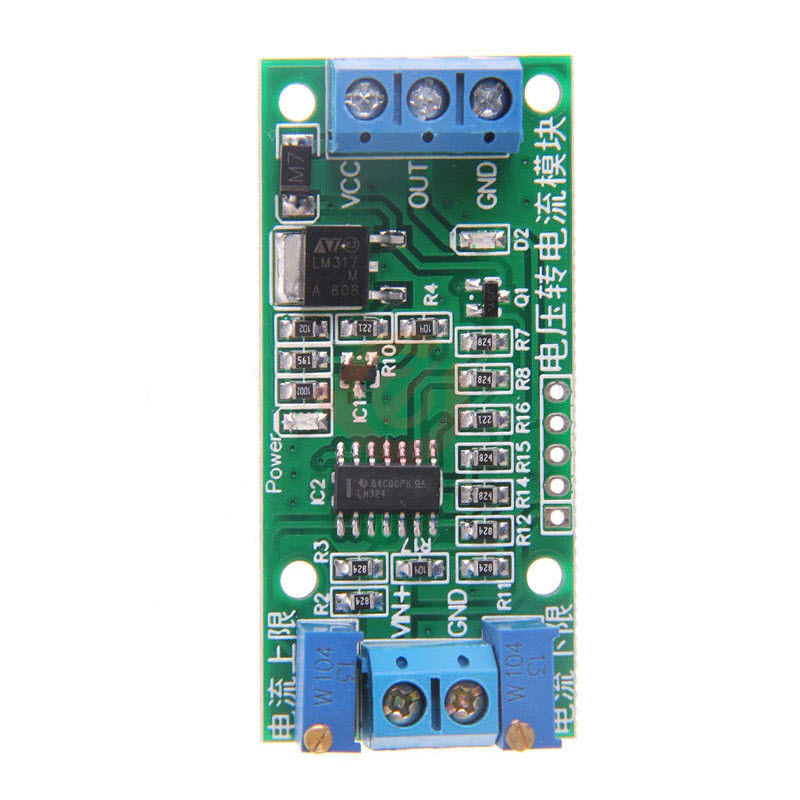

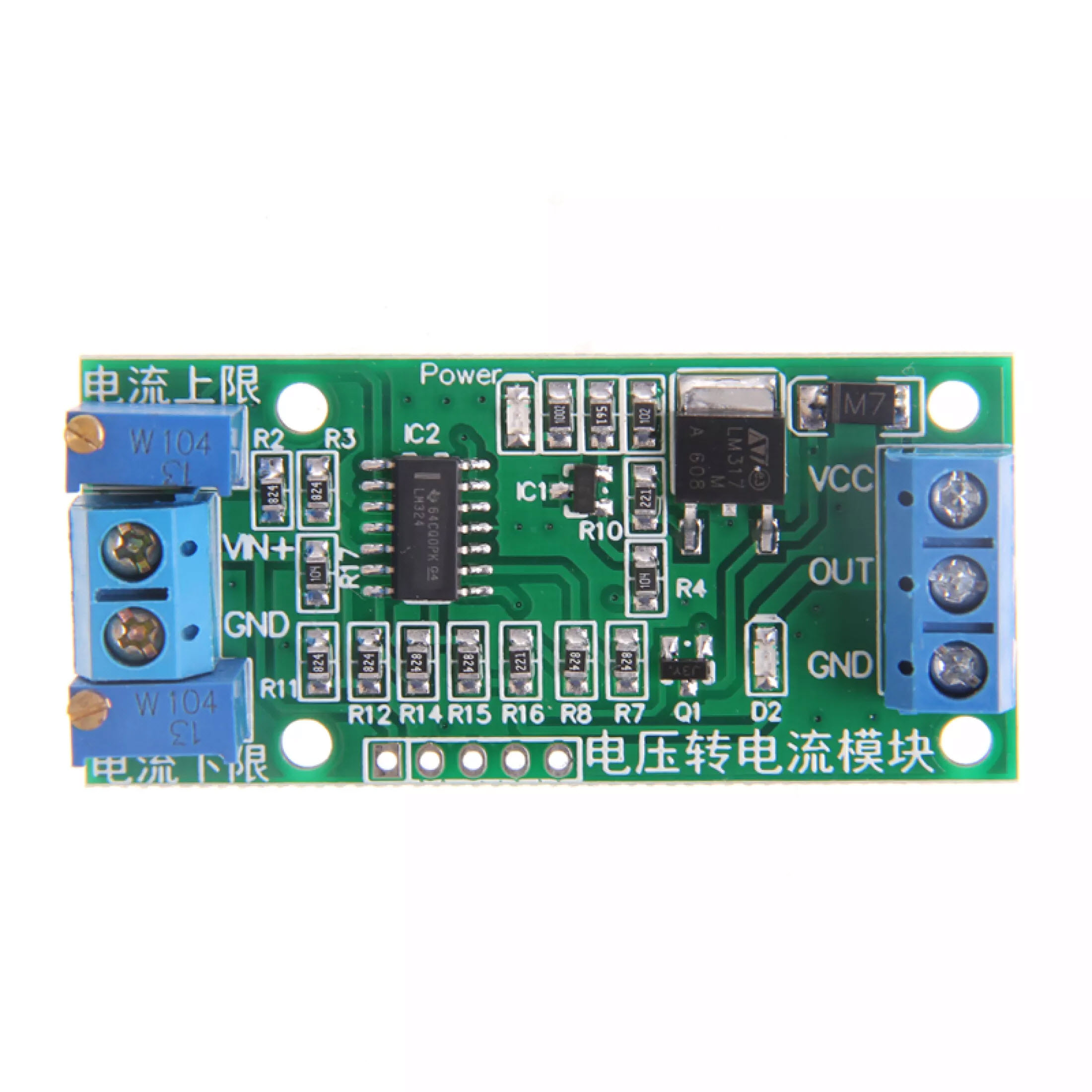

This voltage to current module can convert the voltage signal of
0-2.5V to 4-20mA
0-3.3V to 4-20mA
0-5V    to 4-20mA
0-10    to 4-20mA
0-15V  to 4-20mA

0-24V  to 4-20mA

In the process of circuit signal transmission, the voltage signal will become weaker as the transmission distance increases. The current transmission can avoid the weakening of the signal.

Voltage signal that needs to be converted: 2.5V3.3V5V10V15V24V

Output current: 4-20mA

Zero and full scale can be adjusted by potentiometer

Mold with isolation properties, non-optocoupler isolation

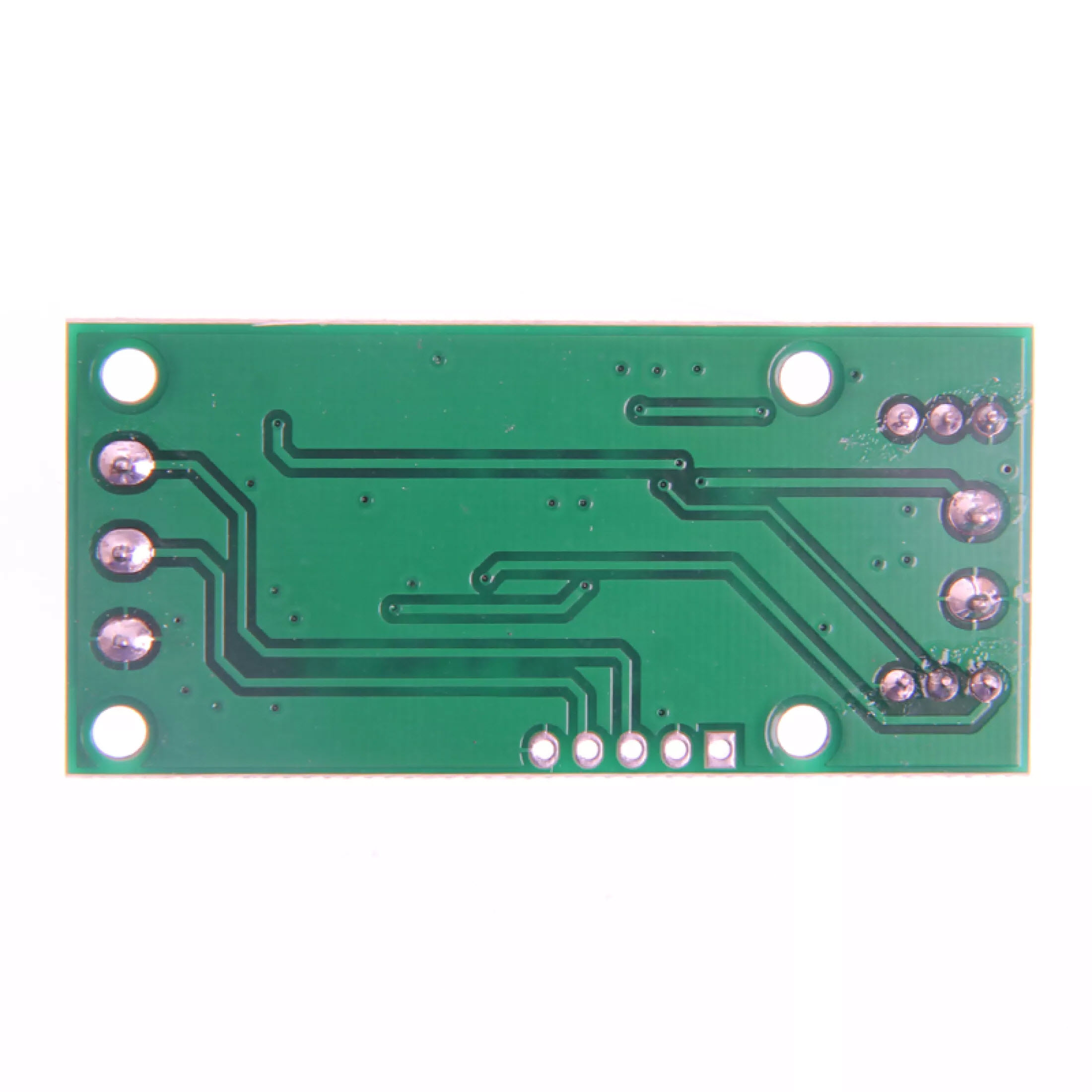

Module size: 56mmX26mm

Supply voltage: DC7-30V

Temperature drift: ±100ppm/°C

Ambient temperature: -10-60C

Storage temperature: -20-80C

Relative humidity: 10-90% RH





1 *Voltage to signal transmitter module
