ESP32 Development board - WT32-SC01 with 320x480 capacitive multi-touch screen

Open source address: https://github.com/wireless-tag-cn/lv_port_esp32
http://www.wireless-tag.com/wp-content/uploads/2021/01/WT32-SC01DataSheetV3.3-2-with-nuts.pdf

WT32-SC01 is a development board for visual touch screen. The board is equipped with self-developed GUI platform firmware and supports graphical drag-and-drop programming to help users complete the development of a custom control platform.
The main control of the WT32-SC01 development board adopts the ESP32-WROVER-B module, which is a universal WiFi+BT+BLE MCU module with 4MB SPI Flash and 8MB PSRAM.

The WT32-SC01 development board can also develop and debug button, voice, camera and other functions through the expansion interfaces on both sides, which greatly shortens the user's development cycle.

Features

• Highly integrated ESP32-WROVER-B module with low power consumption
• 3.5-inch 320x480 capacitive 2-point multi-touch screen for easy interactions
• Easy to program using the graphical drag-and-drop programming
• Wireless connectivity with Wi-Fi and BLE
• Customize functions such as button operation, voice control, and camera operation through the expansion interfaces

Description

Now you can experience easy touch interactions with an ESP32 development board!

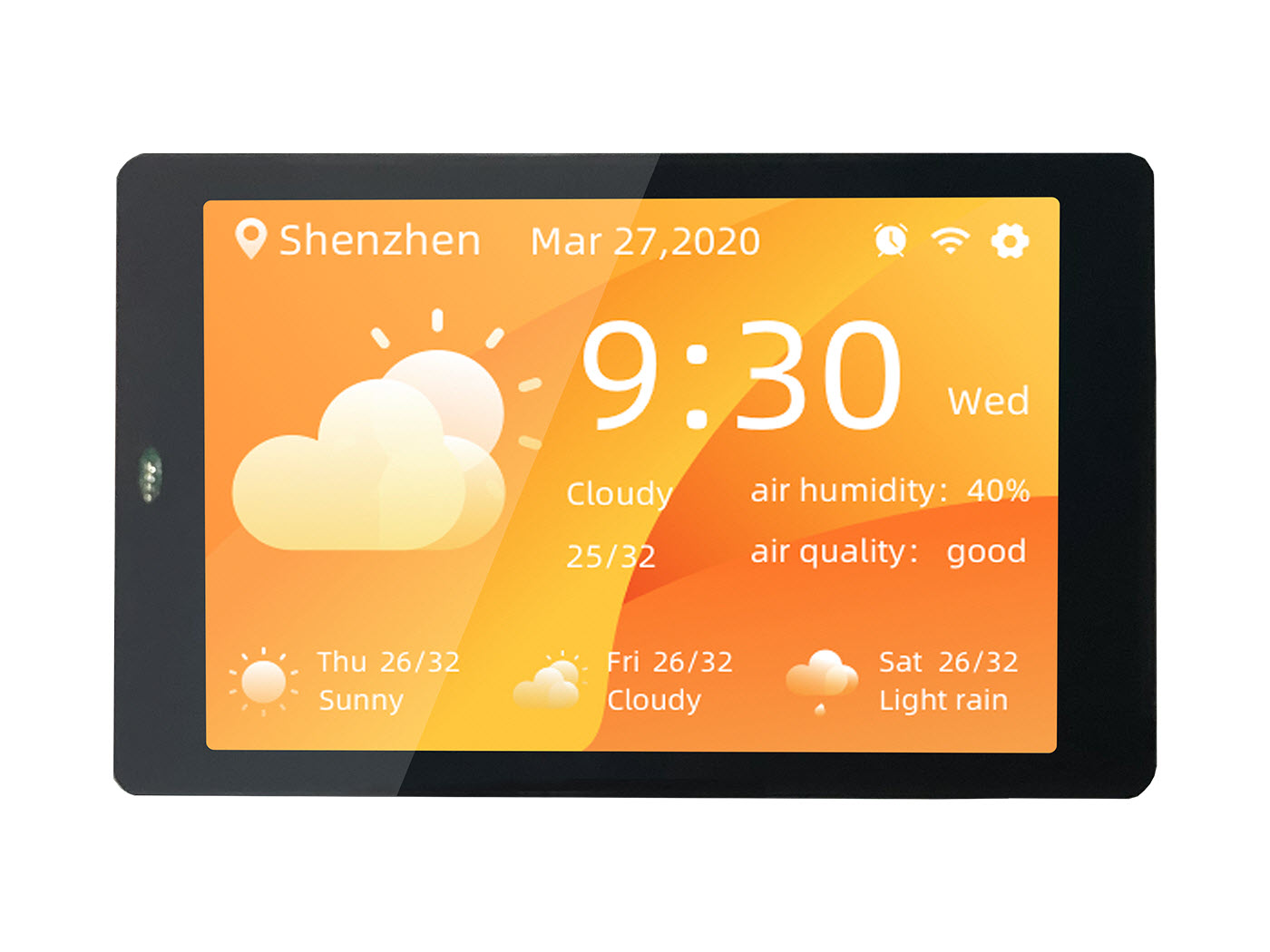

WT32-SC01 is an ESP32 Development board with a 3.5-inch color touch screen. The touch screen enables a new way of interacting with the ESP32. The board is equipped with a graphical user interface (GUI) firmware, which supports graphical drag-and-drop programming and helps users develop a customized control platform.

WT32-SC01 development board adopts the ESP32-WROVER-B module, which is a general-purpose MCU module with Wi-Fi, Bluetooth, 4MB SPI Flash and 8MB PSRAM.

By using the expansion interfaces on both sides of the development board, developers can customize the use of functions such as button operation, voice control, and camera operation, which greatly shortens the user’s development cycle.

Specifications

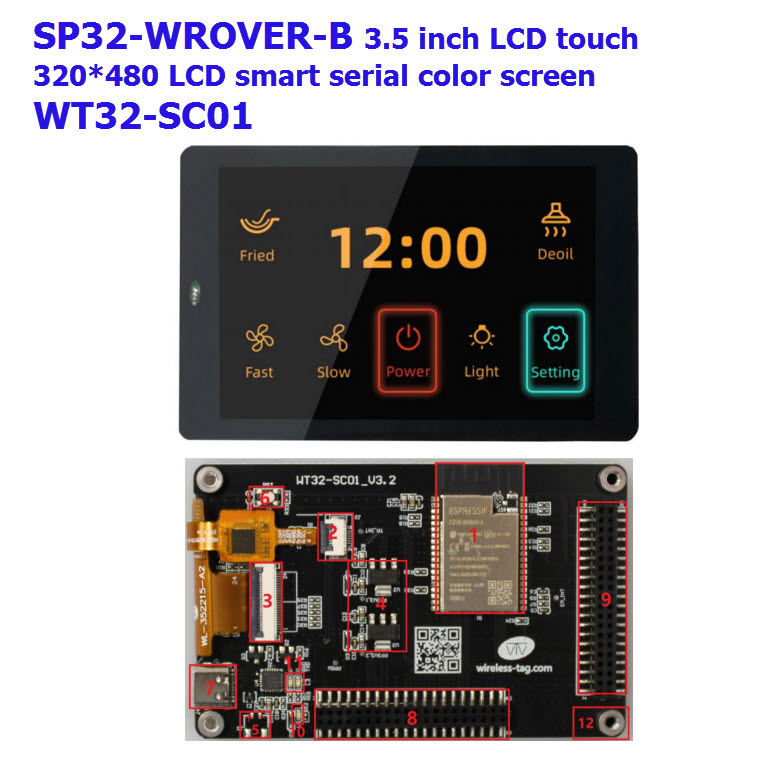

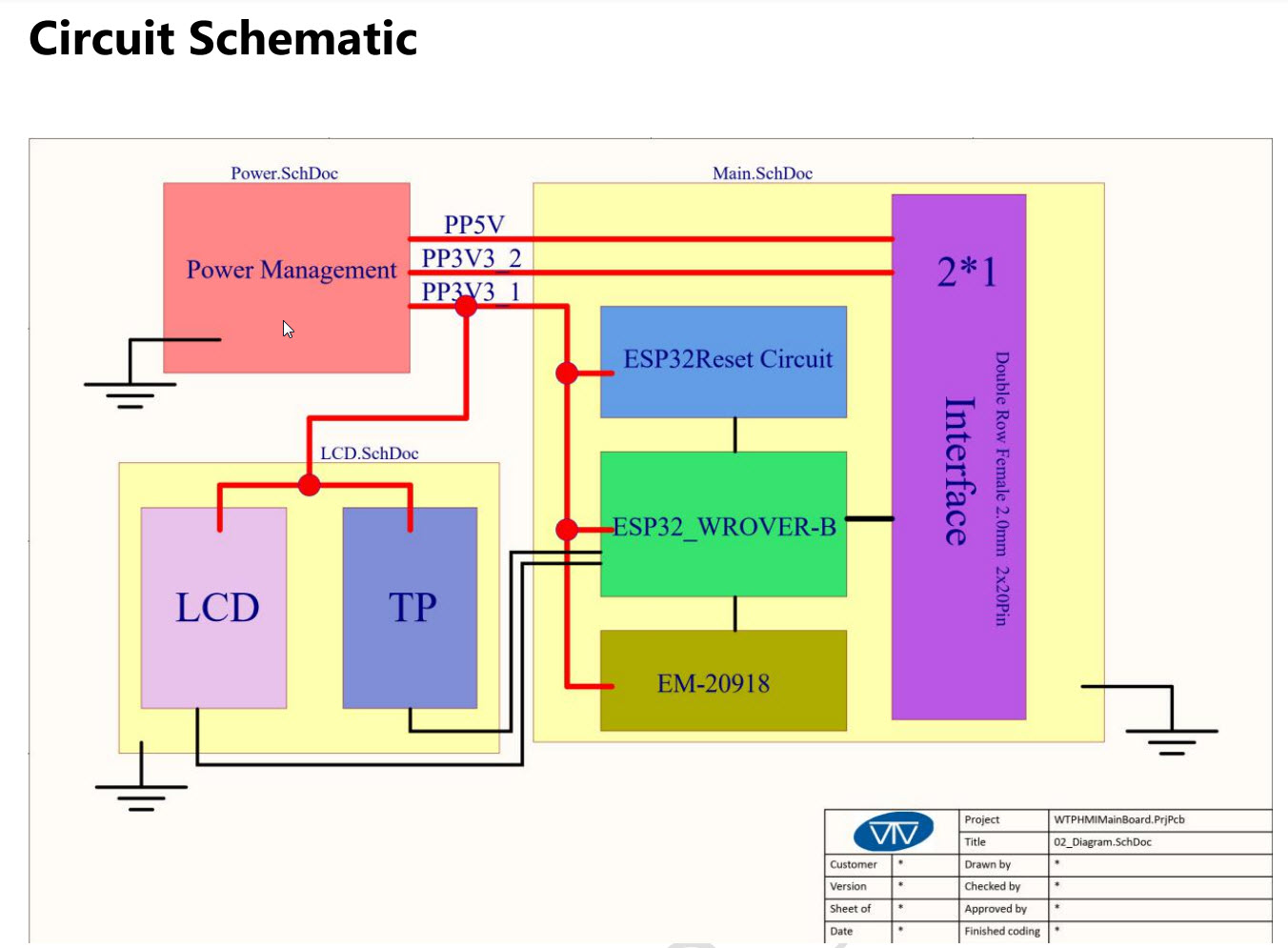

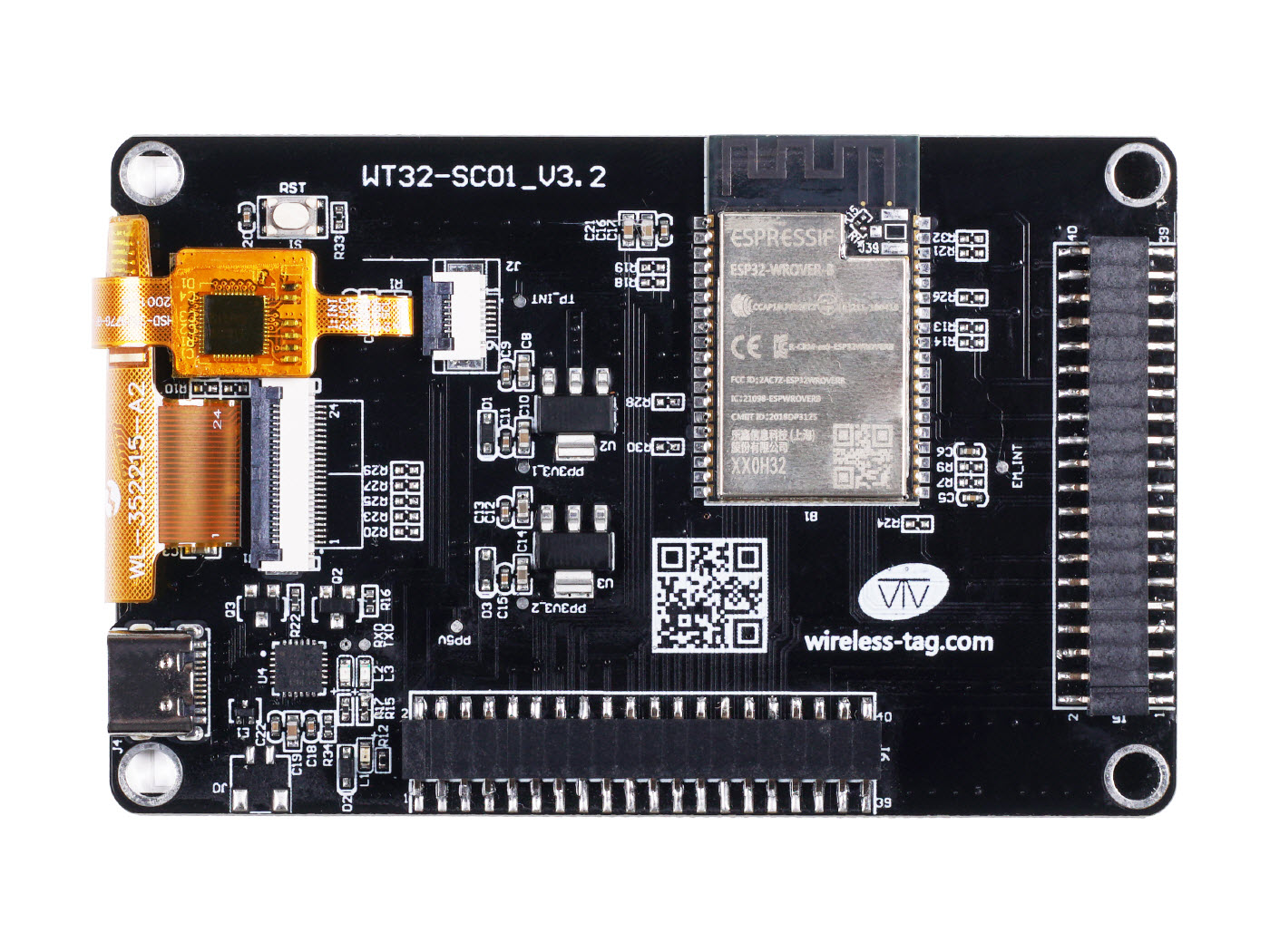

Hardware Overview

• 1. ESP32-WROVER-B module
• 2. Capacitive touchpad interface
• 3. LCM display interface

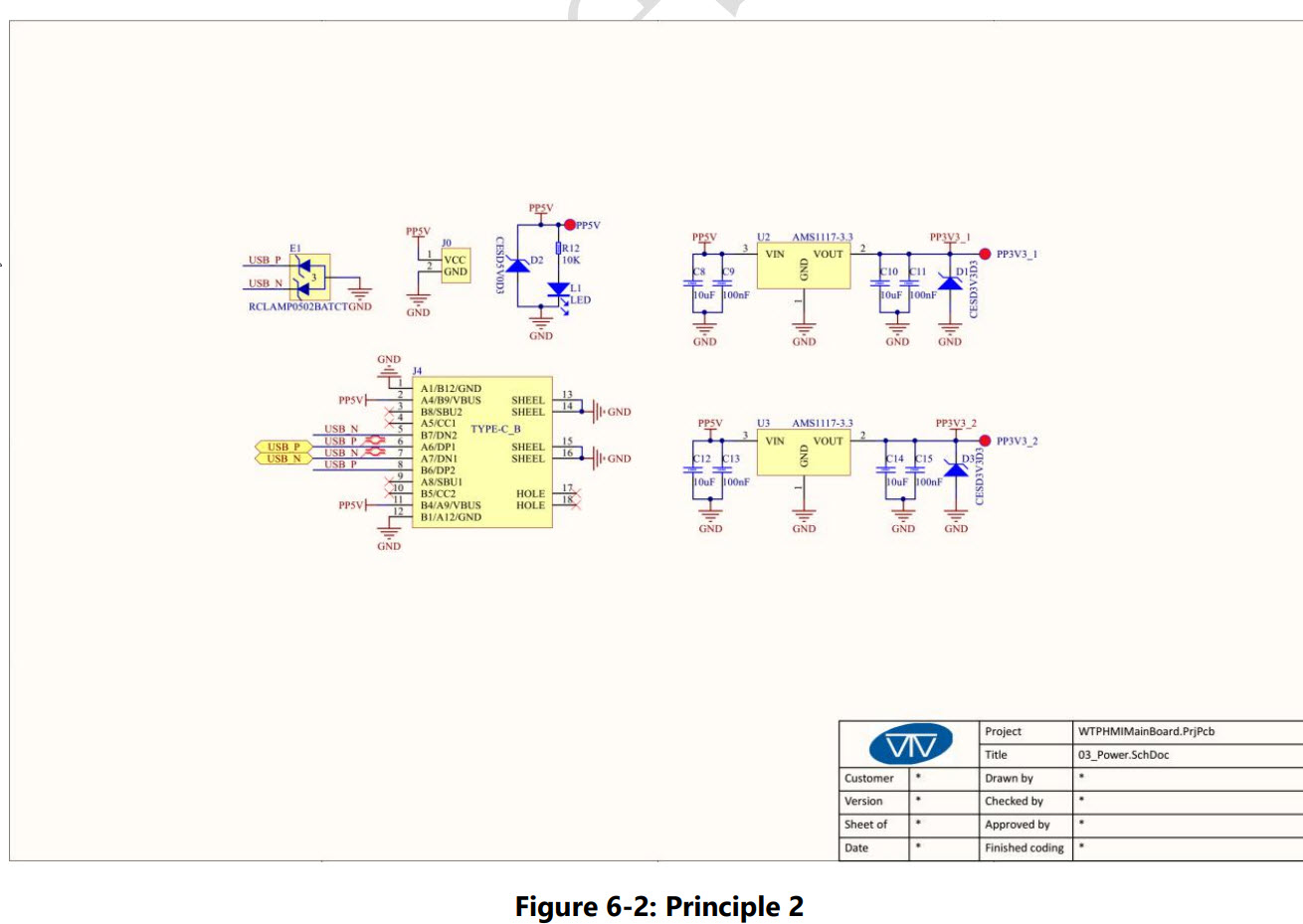

• 4. Power management
• 5. Power switch
• 6. Reset Button
• 7. USB Type-C interface
• 8 – 9. Expansion board interface
• 10. Power indicator
• 11. UART communication indicator

Dimensions

Part List

• 1 x ESP32 Development board - WT32-SC01 with 320x480 capacitive multi-touch screen
• 1 x USB Type-C cable
