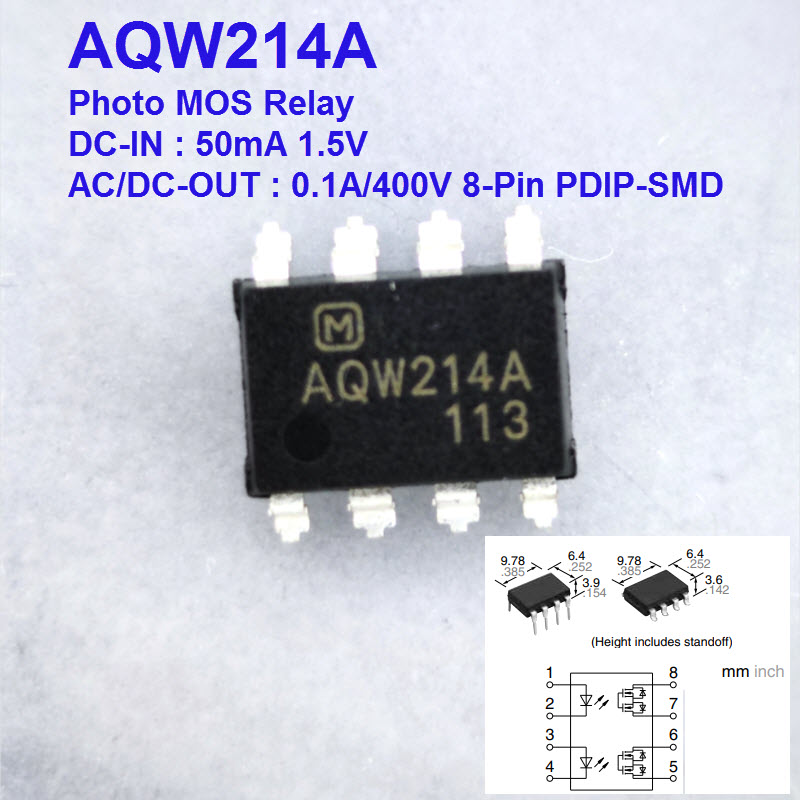

AQW214A Photo MOS Relay DC-IN : 50mA 1.5V AC/DC-OUT : 0.1A/400V 8-Pin PDIP-SMD

AQW214A Photo MOS Relay DC-IN : 50mA 1.5V  AC/DC-OUT : 0.1A/400V 8-Pin PDIP-SMD

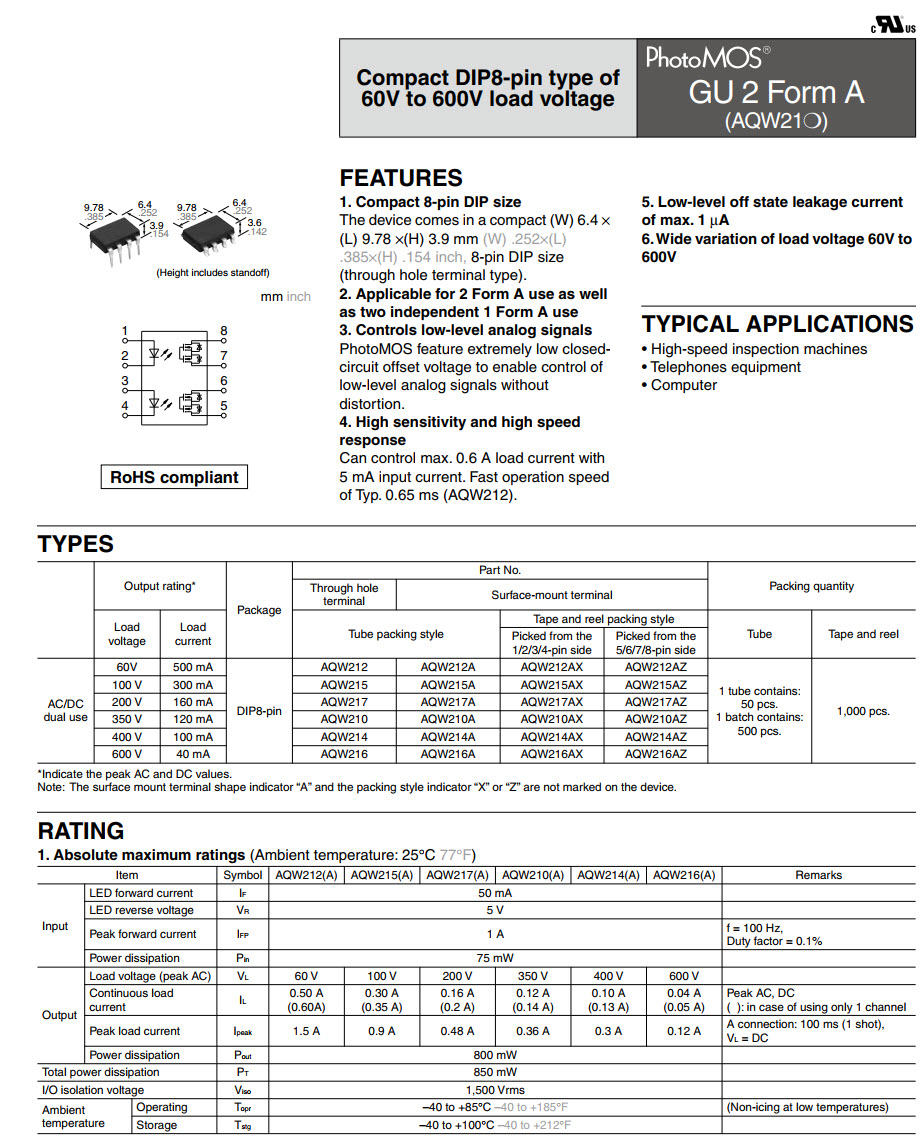

1. Compact 8-pin DIP size The device comes in a compact (W) 6.4 × (L) 9.78 ×(H) 3.9 mm (W) .252×(L) .385×(H) .154 inch, 8-pin DIP size (through hole terminal type).

2. Applicable for 2 Form A use as well as two independent 1 Form A use
3. Controls low-level analog signals PhotoMOS feature extremely low closedcircuit offset voltage to enable control of low-level analog signals without distortion.

4. High sensitivity and high speed response Can control max. 0.6 A load current with 5 mA input current. Fast operation speed of Typ. 0.65 ms (AQW212).

5. Low-level off state leakage current of max. 1 μA

6. Wide variation of load voltage 60V to 600V



• High-speed inspection machines

• Telephones equipment

• Computer
