ESP32-Aduio-Kit Audio Development Board with ESP32-A1S

ESP32-Audio-Kit

ESP32-Audio-Kit is a small audio development board based on ESP32-A1S module. Most audio peripherals are distributed on both sides of the development board, supporting TF card, headphone output, two microphone inputs and two speaker outputs. It is convenient for developers to develop quickly. Suitable for home smart devices, smart speaker solutions, children's story machine prototypes, etc., is an ideal solution for IoT applications.

• Low-power dual-core 32-bit CPU for application processors
• Main frequency up to 240MHz, computing power up to 600 DMIPS
• Built-in 520 KB SRAM, 8M PSRAM
• Supports interfaces such as UART/SPI/I2C/PWM
• Headphone port: Insert 3.5mm headphone jack to support left and right channel output
• Left and right channel speakers: support output 4Ω 3W speaker output, and support dual channel output
• Two analog microphones, respectively, as audio input; support for headset microphone input
• Support 3.7V lithium battery input; support 5V 2A power input, support simultaneous lithium battery charging
• Support 64G SD card reading and writing
• Support multiple sleep modes
• Embedded Lwip and FreeRTOS
• Support STA/AP/STA+AP working mode
• Support Smart Config/AirKiss One-click distribution network

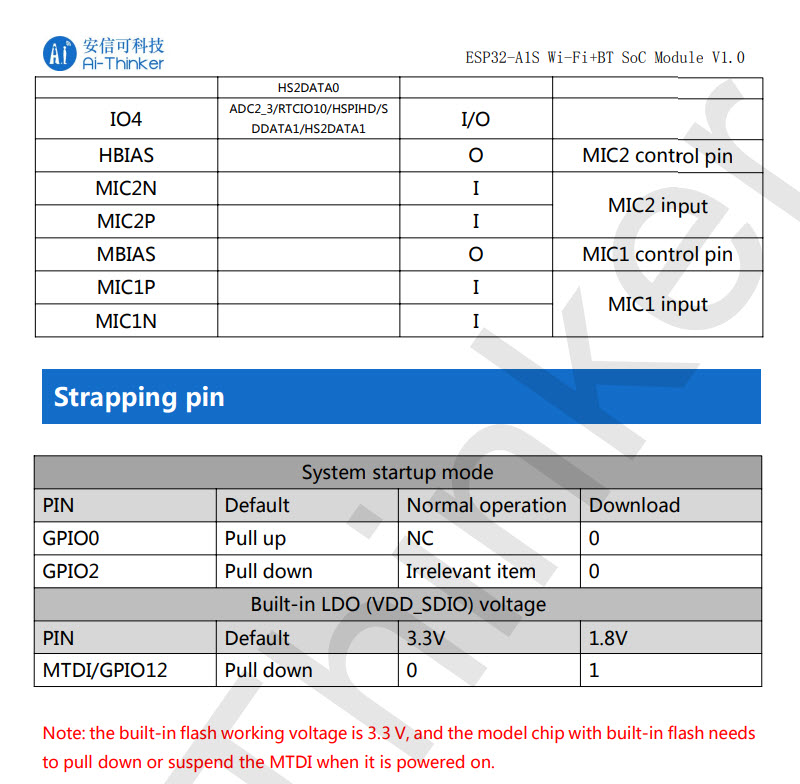

Pin Description：

Product Size：

• The main chip uses a low-power dual-core 32-bit CPU with a frequency of up to 240MHz and a computing power of up to 600DMIPS.
• Built-in CodeC audio decoder chip for local playback of music and recording
• Supports two MIC inputs and Linein mode inputs
• Support for headphones and speaker output
• Built-in 520KB SRAM+ 4M PSRAM, default 32Mbit SPI Flash
• Support SoftAP and Station mode
• Ultra-small 802.11b/g/n Wi-Fi + BT/BLE SoC module
• Support UART/SPI/I2C/I2S/PWM/ADC/DAC, etc.
• Support for firmware upgrade (FOTA)
• Antenna supports on-board antenna or IPEX block output
• Supports a variety of mainstream compression and lossless audio formats, including M4A, AAC, FLAC, OGG, OPUS, MP3, WAV, etc.

Features

• Supports two MIC inputs and Linein mode inputs.
• Supports two MIC inputs and Linein mode inputs.
• Supports on-board Antenna or IPEX block support.
• Supports firmware upgraded (FOTA).
• Built-in 520KB SRAM+ 8M PSRAM, default 32Mbit SPI Flash.
• Support UART/SPI/I2C/I2S/PWM/ADC/DAC interfaces.

Specifications

Package list

• ESP32-A1S WiFi+BT Audio Developmebt Board x 1

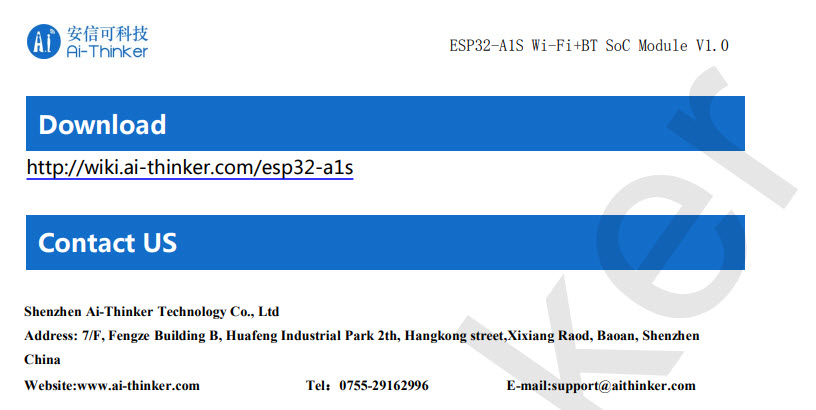

Document

• Software Example

• ESP32-A1S Factory Firmware
• ESP32-A1S Specification
• ESP32-A1S Demo

*

*
