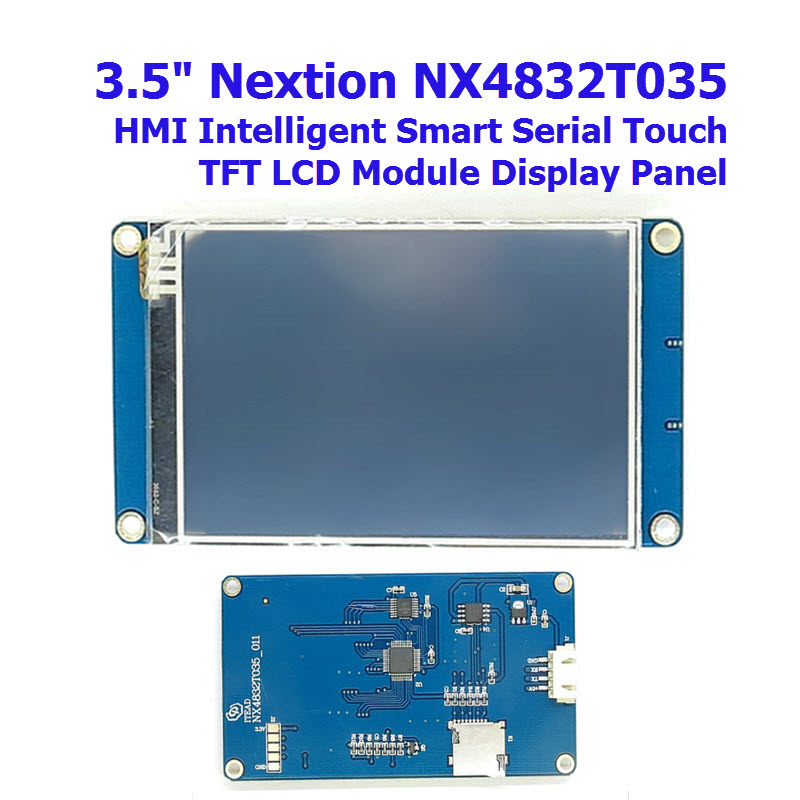

3.5" Nextion NX4832T035 HMI Intelligent Smart Serial Touch TFT LCD Module Display Panel

3.5" Nextion NX4832T035 HMI Intelligent Smart Serial Touch TFT LCD Module Display Panel For Raspberry Pi Arduino

Nextion is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to Internet of thing (IoT) or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube.

https://itead.cc/product/nx4832t035-nextion-3-5-basic-series-hmi-touch-display/

Nextion includes a hardware part (a series of TFT boards) and a software part (the Nextion editor). The Nextion TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend much time in application development but get unsatisfactory results. As a solution to this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake.

It's easy to adapt Nextion family HMI to existing projects. Users just need to provide it a UART.

NX4832T035 is a powerful 3.5'' HMI, which is member of Nextion family. Features include: a 3.5" TFT 400x240 resistive touch screen display, 4M Flash, 2KByte RAM, 65k colors.

3.2" Nextion NX4024T032 HMI TFT Intelligent Display Module

Package include: a Nextion 3.5'' display, a wire, a power supply test board

Note: there's a small power supply test board and a wire for you to test if the electricity supply is enough or not. Please see below image how to use it.

Check out the amazing features of this product below.

• Features

  • 480 x 320 Resolution
  • RGB 65K true to life colours
  • TFT screen with integrated resistive touch panel
  • 4 pin TTL serial interface
  • 16M Flash memory for User Application Code and Data
  • On board micro-SD card slot for firmware upgrade
  • Visual Area: 73.44mm(L)×48.96mm(W)
  • Adjustable Brightness: 0~180 nit, the interval of adjustment is 1%
  • 5V500mA DC recommended power supply
  • 5V145mA power consumption
  • Certificates: CE/EMC, RoHS(certificates)
•

Software

Documents

Please visit our wiki page for more information about this product. Any suggestions for improvement, such as correcting errors, adding more demo codes or tutorials, will be highly appreciated.
