HR911105A HanRun RJ45 Lan Connector 8P8C with LEDs

Product Details:

• Designed for Network Interface Card Application.
• Meets or Exceeds IEEE802.3 standards including 350uH Min OCL with 8mADC.
• High performance for EMI suppression, Crosstalk,Return Loss and Consistent Electrical.
• Minimum 1500Vrms isolation per IEEE802.3 requirement.
• Minimize PCB space and Simplify PCB Layout.
• Less magnetic components to place on PCB,Higher reliability and yields.

Electrical Specification @25℃

• Isolation: 1500Vrms (UTP Side to Chip Side)
• OCL: 350uH Minimum @100KHz 100mV with 8mADC.
• Insertion Loss: -1.0dB Maximum @300KHz-100MHz
• Return Loss: -20dB Maximum @1MHz-10MHz

-16dB Maximum @10MHz-30MHz

-12dB Maximum @30MHz-60MHz

-10dB Maximum @60MHz-80MHz

• Common Mode Rejection:-30dB Maximum @1MHz-50MHz

-20dB Maximum @50MHz-150MHz

Crosstalk:-40dB Maximum @1MHz-30MHz
-35dB Maximum @30MHz-60MHz
-30dB Maximum @60MHz-100MHz

 10/100base-tx Ethernet HR911105A
Rj45 Modular Jack With Magnetics
PHY Interface With Rj45 Magnetics
Angled Rj45 Connector Rj45 Single Port



HR911105A ELECTRICAL SPECFICATIONS: @25℃

Single Port 8P8C RJ45 Jack Connectors with 10/100 Base-T Integrated Magnetics,Green/Yellow LED,Tab Down,RoHS
LINK-PP Part Number	LPJ0011FBNL
Hanrun Part Number	HR911105A
Application-Lan	ETHERNET(NoN PoE)
AutomDX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores per Port	4
Diodes	NO DIODES
LED Option	GREEN/YELLOW
Latch	TAB DOWN
Number of Ports	1X1
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST

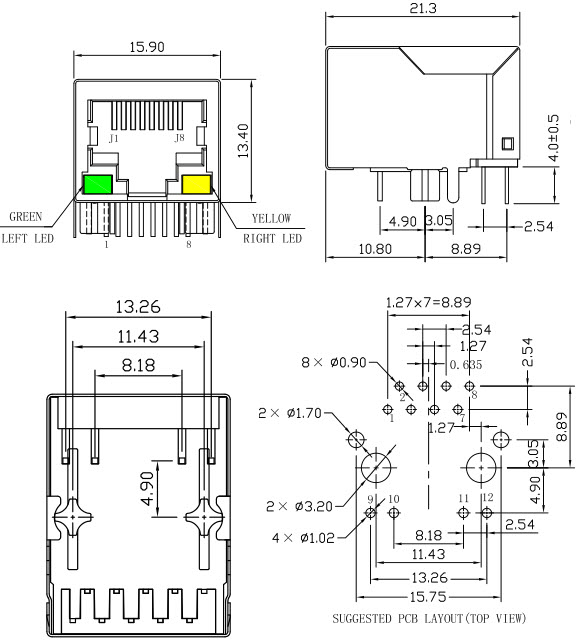

Package Height (Inches)	0.528
Package Height (mm)	13.40
Package Length (Inches)	0.839
Package Length (mm)	21.30
Package Width (Inches)	0.626
Package Width (mm)	15.90
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	WITHOUT
Speed	10/100 BASE-T
Temperature	0 TO 70℃
Turns Ratio RX	1CT:1CT
Turns Ratio TX	1CT:1CT
