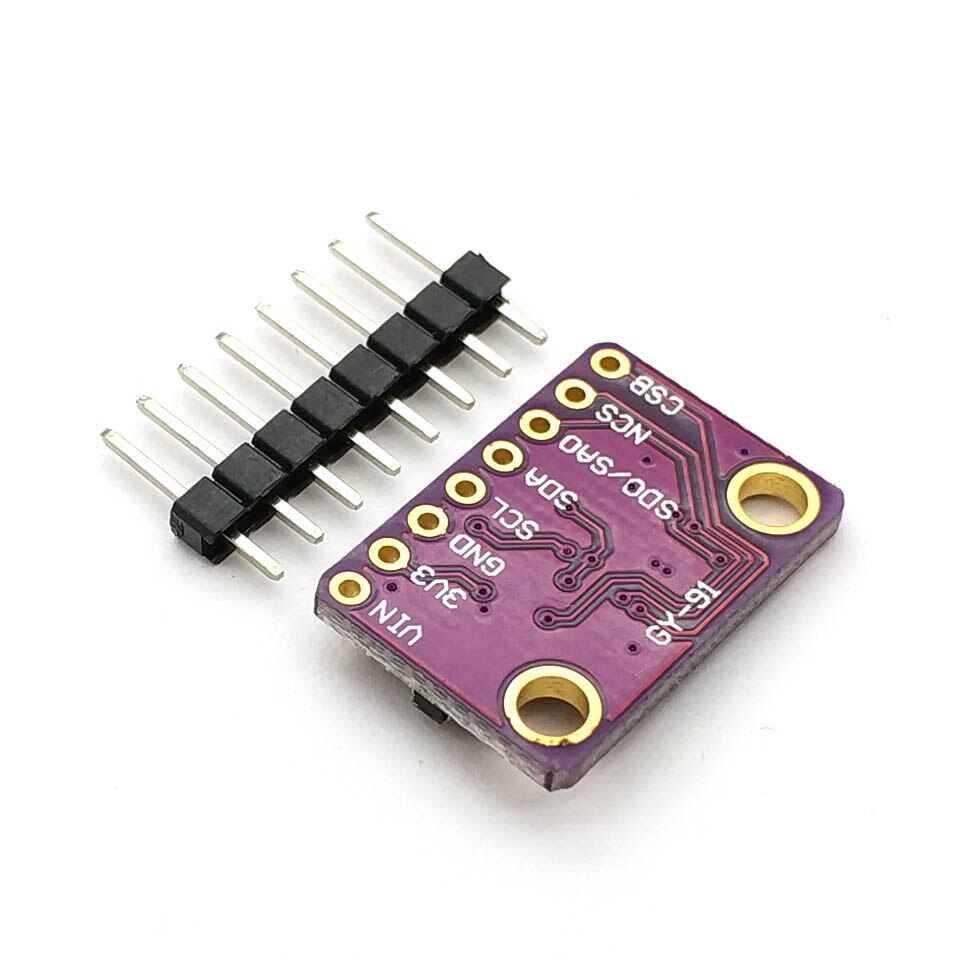

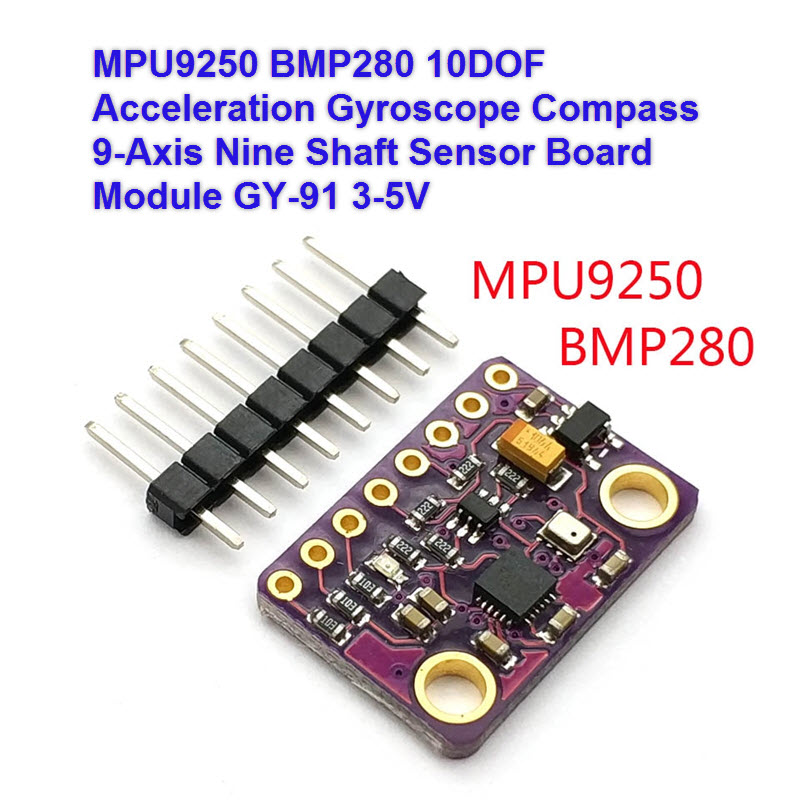

MPU9250 BMP280 SPI IIC/I2C 10DOF Acceleration Gyroscope Compass 9-Axis Sensor Board Module GY-91

Description

The module uses combination of Single chip MPU-9250 with built-in 3 axis Gyro, 3axis Accelerometer, digital Compass and BMP280 improved barometric pressure sensor.

The MPU-9250 is the company second generation 9-axis MotionTracking device for smartphones, tablets, wearable sensors, and other consumer markets.

Specifications

• Sensor Chips: MPU-9250 + BMP280
• Interface: standard IIC / SPI communications protocol
• Operating Voltage range: 3.0V – 5.0V (on-board low dropout regulator)
• Module size 14.3mm * 20.5mm (More compact than GY-80)
• Resolution: 16bit AD converter, 16-bit data output
• Gyroscopes range: ± 250, 500, 1000, 2000 ° / s
• Acceleration range: ± 2 ± 4 ± 8 ± 16g
• Field range: ± 4800uT
• Pressure range: 300-1100hPa
• 2.54mm pitch
