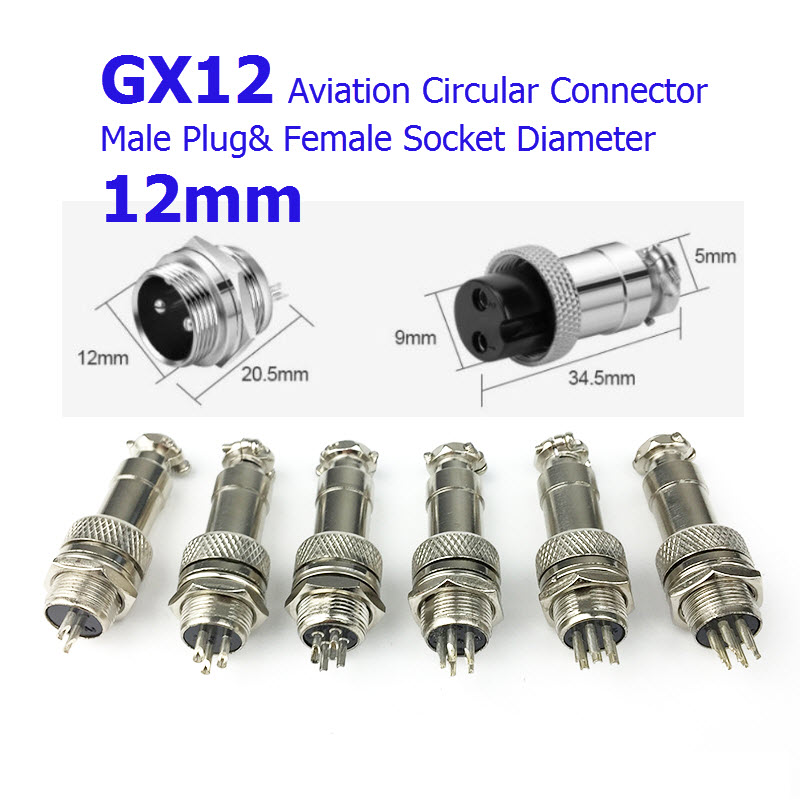

GX12 Aviation Circular Connector Male Plug& Female Socket Diameter 12mm

Description:

1. Model: RS765 (GX12)
2. Housing: zinc, nickel
3. Knurled nut: copper, nickel
4. Insulator: Bakelite inner core
5. Plug and socket connection: threaded tighten

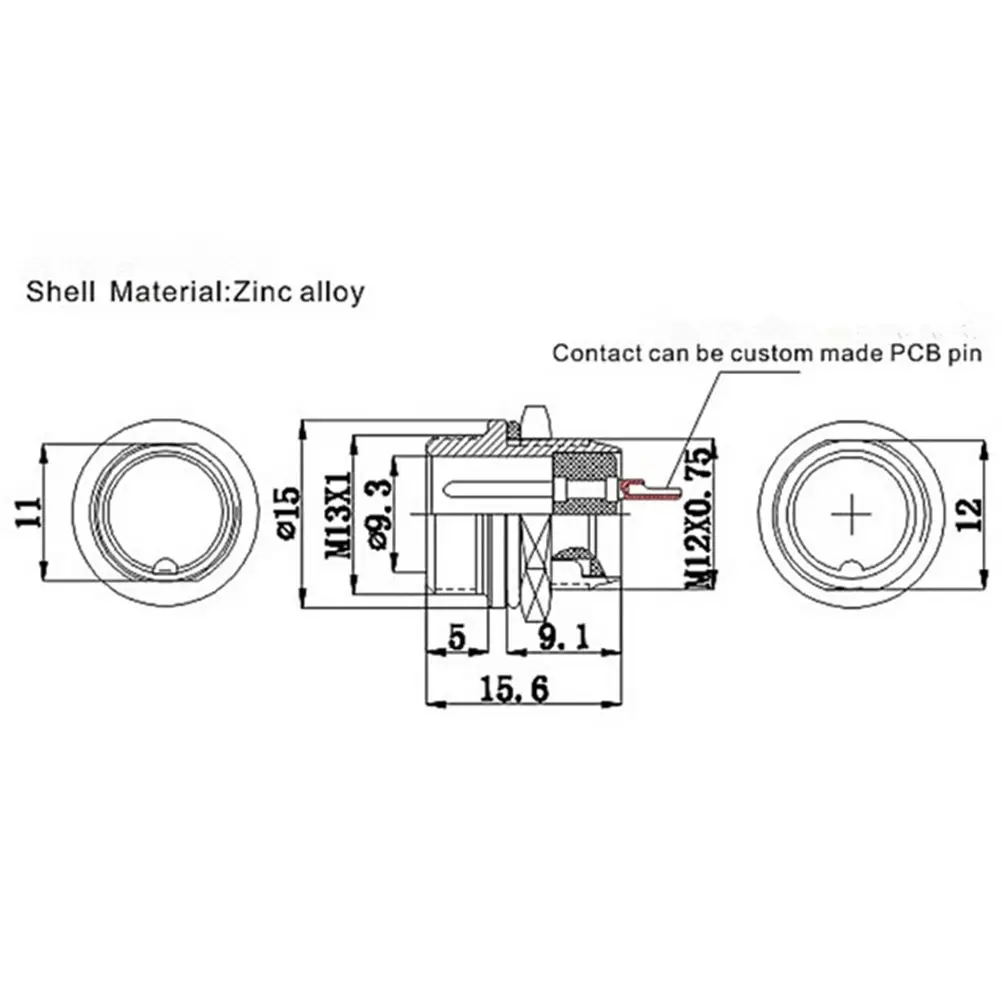

6. Installation diameter: 12mm
7. Installation: Tighten thread
Environmental conditions:
1. Ambient temperature: -50 ~ + 70 ℃
2. Relative humidity: 98%(40℃)
3. Atmospheric pressure: up 4,4kpa
4. Vibration: vibration frequency 10~100Hz, acceleration up to 100m/s2
5. Impact: frequency 60 to 80 times/min, acceleration up to 250m/s2
6. Centrifugal: acceleration up to 250m/s2
Technical characteristics
1. Rated voltage: 300V, rated current: 5A
2. Contact resistance: not more than 5Ω
3. Insulation resistance: under normal conditions is not less than 500MΩ, after constant warm test not less than 20MΩ
4. Temperature: rated load, the contact temperature rise should not exceed the ambient temperature + 50 ℃

5. Life: Plug 500 times should not appear harmful plug seats machinery and performance

Package includes:1pc
