UCC27324 27324 Non-inverting 4-A/4-A dual-channel low side gate driver

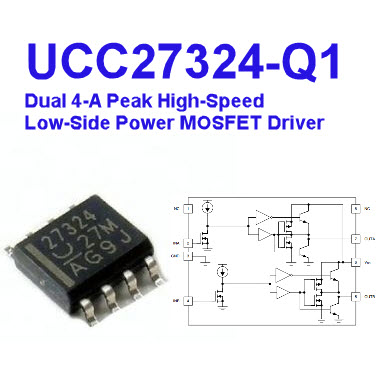

UCC27324-Q1 Dual 4-A Peak High-Speed Low-Side Power MOSFET Driver

1 Features
• Qualified for Automotive Applications
• Industry-Standard Pinout
• High Current Drive Capability of ±4 A at the Miller Plateau Region
• Efficient Constant Current Sourcing Even at Low Supply Voltages
• TTL and CMOS-Compatible Inputs Independent of Supply Voltage
• 20-ns Typical Rise and 15-ns Typical Fall Times with 1.8-nF Load
• Typical Propagation Delay Times of 25 ns With Input Falling and 35 ns With Input Rising
• Supply Voltage of 4 V to 15 V
• Supply Current of 0.3 mA
• Dual Outputs Can Be Paralleled for Higher Drive Current
• Rated From TJ = –40°C to 125°C • TrueDrive™ Output Architecture Using Bipolar and CMOS Transistors in Parallel

2 Applications
• Switch-Mode Power Supplies
• DC-DC Converters
• Motor Controllers
• Line Drivers
• Class D Switching Amplifiers

3 Description
The UCC27324-Q1 high-speed dual-MOSFET driver can deliver large peak currents into capacitive loads. Using a design that inherently minimizes shootthrough current, these drivers deliver 4 A of current where it is needed most, at the Miller plateau region during the MOSFET switching transition. A unique bipolar and MOSFET hybrid output stage in parallel also allows efficient current sourcing and sinking at low supply voltages.

The device is offered in a standard SOIC-8 (D) package.
