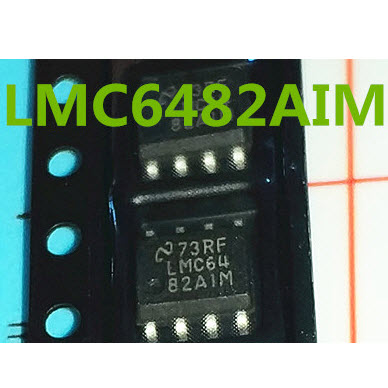

LMC6482AIM Dual Rail-to-Rail Input and Output Operational Amplifier

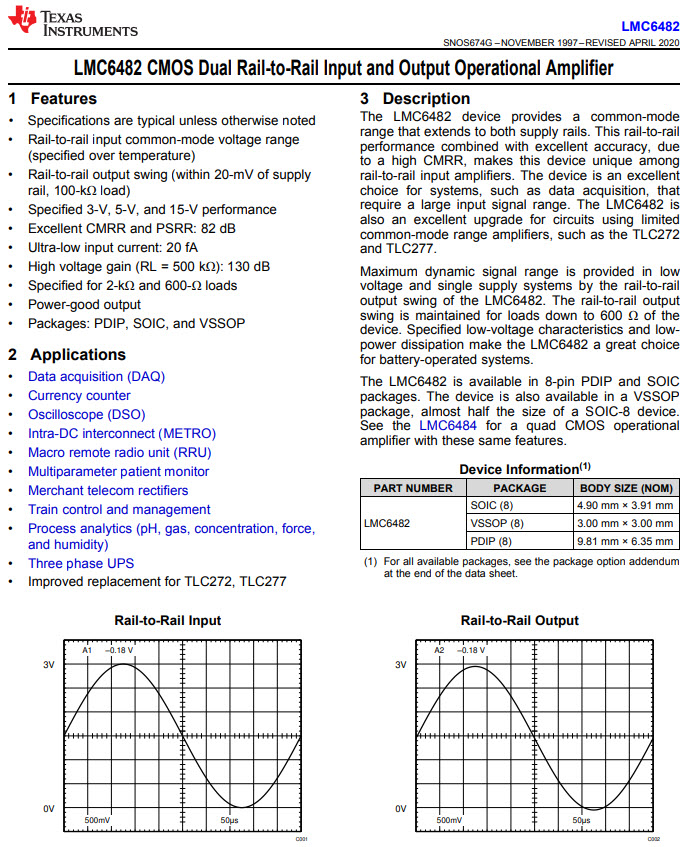

LMC6482 CMOS Dual Rail-to-Rail Input and Output Operational Amplifier

1 Features
• Specifications are typical unless otherwise noted
• Rail-to-rail input common-mode voltage range (specified over temperature)
• Rail-to-rail output swing (within 20-mV of supply rail, 100-kΩ load)
• Specified 3-V, 5-V, and 15-V performance
• Excellent CMRR and PSRR: 82 dB
• Ultra-low input current: 20 fA
• High voltage gain (RL = 500 kΩ): 130 dB
• Specified for 2-kΩ and 600-Ω loads
• Power-good output
• Packages: PDIP, SOIC, and VSSOP

2 Applications
• Data acquisition (DAQ)
• Currency counter
• Oscilloscope (DSO)
• Intra-DC interconnect (METRO)
• Macro remote radio unit (RRU)
• Multiparameter patient monitor
• Merchant telecom rectifiers
• Train control and management
• Process analytics (pH, gas, concentration, force, and humidity)
• Three phase UPS • Improved replacement for TLC272, TLC2772

3 Description
The LMC6482 device provides a common-mode range that extends to both supply rails. This rail-to-rail performance combined with excellent accuracy, due to a high CMRR, makes this device unique among rail-to-rail input amplifiers. The device is an excellent choice for systems, such as data acquisition, that require a large input signal range. The LMC6482 is also an excellent upgrade for circuits using limited common-mode range amplifiers, such as the TLC272 and TLC2772.

Maximum dynamic signal range is provided in low voltage and single supply systems by the rail-to-rail output swing of the LMC6482. The rail-to-rail output swing is maintained for loads down to 600 Ω of the device. Specified low-voltage characteristics and lowpower dissipation make the LMC6482 a great choice for battery-operated systems.

The LMC6482 is available in 8-pin PDIP and SOIC packages. The device is also available in a VSSOP package, almost half the size of a SOIC-8 device. See the LMC6484 for a quad CMOS operational amplifier with these same features
