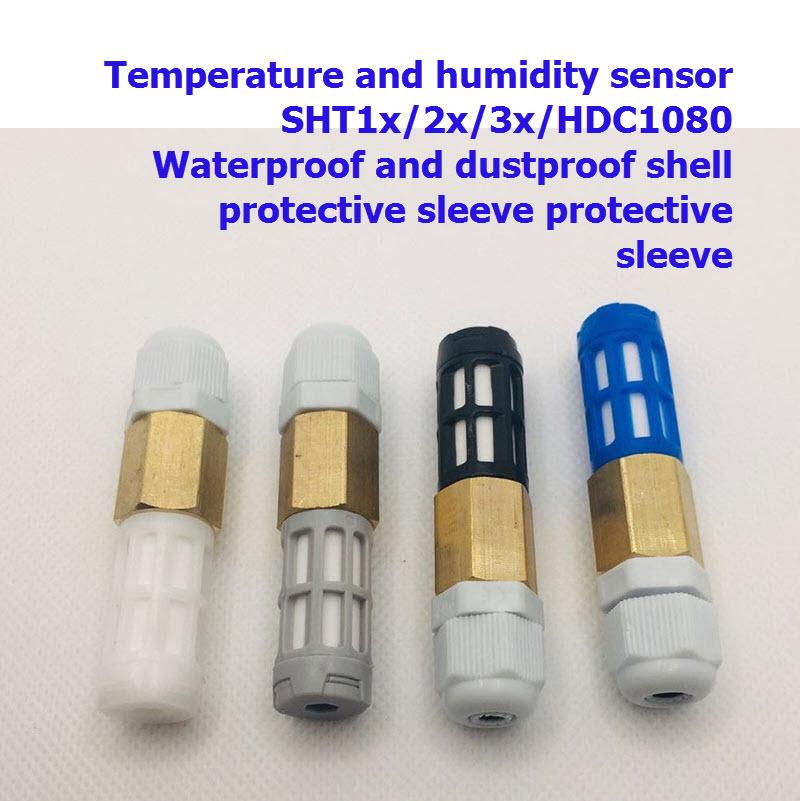

Temperature and humidity sensor SHT1x/2x/3x HDC1080 Waterproof and dustproof shell protective cover protective cover

Model: TB-68, dustproof and waterproof
length is about 68mm after tightening,
inner diameter 7.8mm
outer diameter 15mm (connecting nut part),

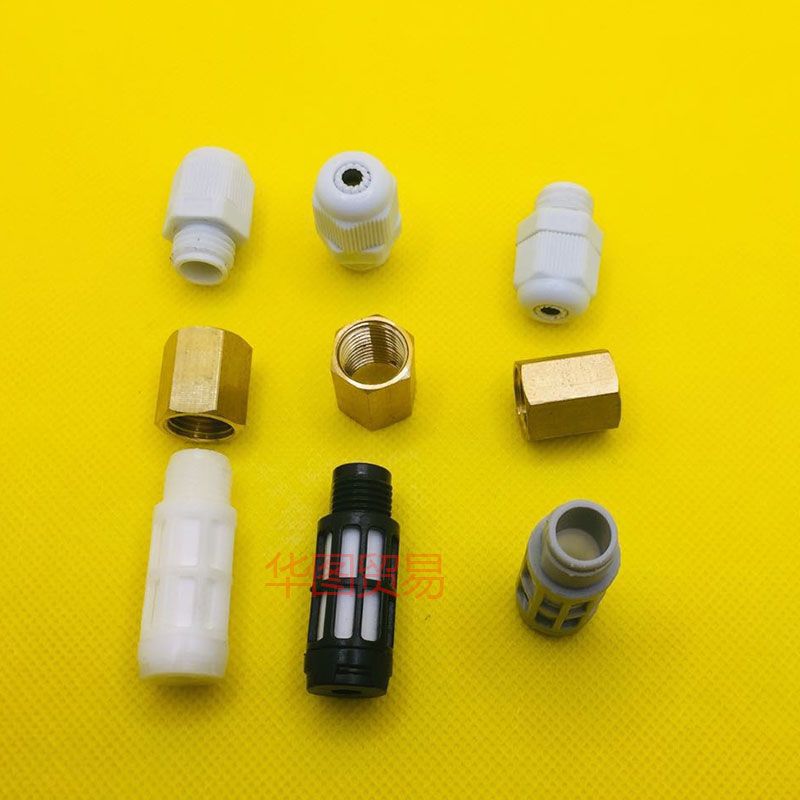

1 pcs including
- waterproof pe connector,
- connecting seat,
- waterproof shell and other three parts.

The waterproof head material is PE, the link nut is brass, and the locking tailstock is nylon.

Operating temperature range: -50~+120C.

Suitable for sensors such as HTU21 SHT10 SHT11 SHT20 SHT21 SHT15 SHT75. It is suitable for environments such as soil, outdoor rain, and high-humidity agricultural greenhouses.

This product has a ventilation aperture much smaller than the diameter of fog and dust particles, so it can be dustproof, waterproof and breathable. Water molecules can enter the sheath, and water droplets cannot enter the sheath due to surface tension. This principle can measure humidity and prevent water infiltration. This product can be used in a high humidity environment. If the environment is flooded by water, it is recommended that the circuit board chip be waterproofed.
