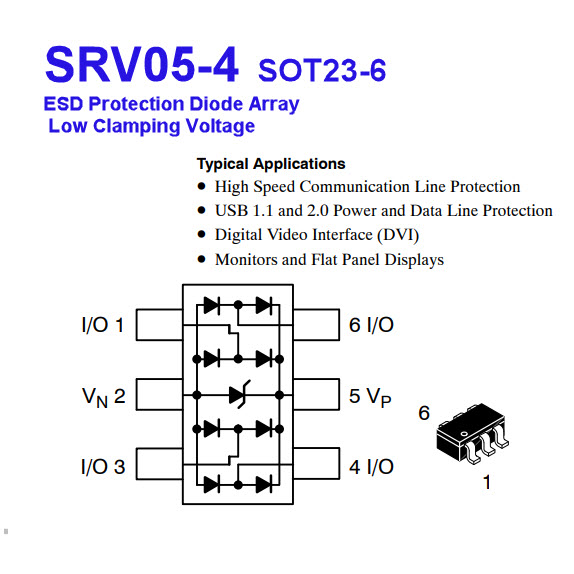

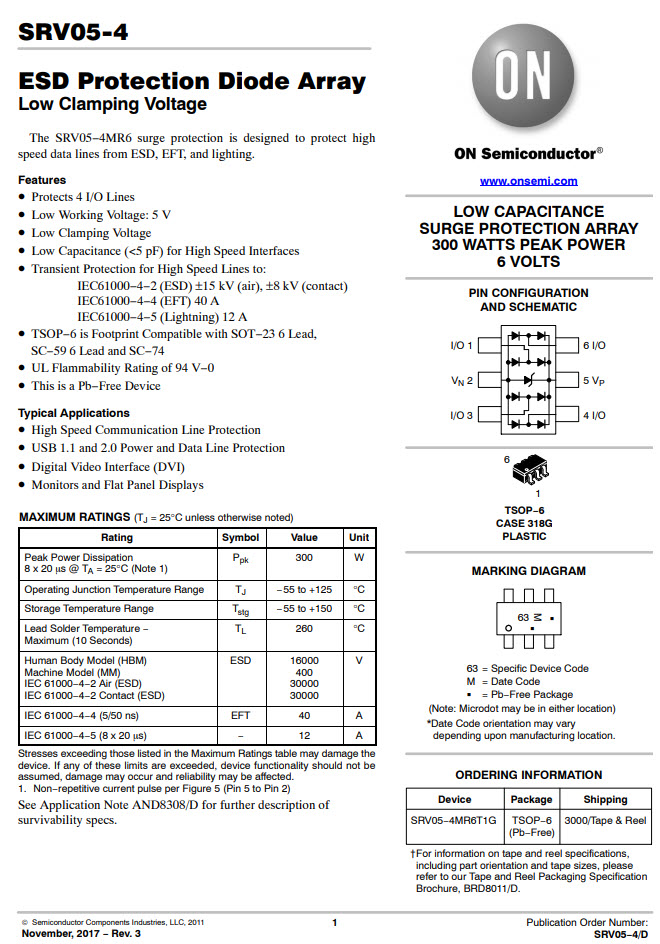

SRV05-4 ESD Protection Diode Array Low Clamping Voltage

SRV05-4 ESD Protection Diode Array Low Clamping Voltage

The SRV05−4MR6 surge protection is designed to protect high speed data lines from ESD, EFT, and lighting.

Features
• Protects 4 I/O Lines
• Low Working Voltage: 5 V
• Low Clamping Voltage
• Low Capacitance (<5 pF) for High Speed Interfaces
• Transient Protection for High Speed Lines to:
IEC61000−4−2 (ESD) ±15 kV (air), ±8 kV (contact)
IEC61000−4−4 (EFT) 40 A
IEC61000−4−5 (Lightning) 12 A
• TSOP−6 is Footprint Compatible with SOT−23-6 Lead, SC−59-6 Lead and SC−74
• UL Flammability Rating of 94V−0
• This is a Pb−Free Device

Typical Applications
• High Speed Communication Line Protection
• USB 1.1 and 2.0 Power and Data Line Protection
• Digital Video Interface (DVI)
• Monitors and Flat Panel Displays
