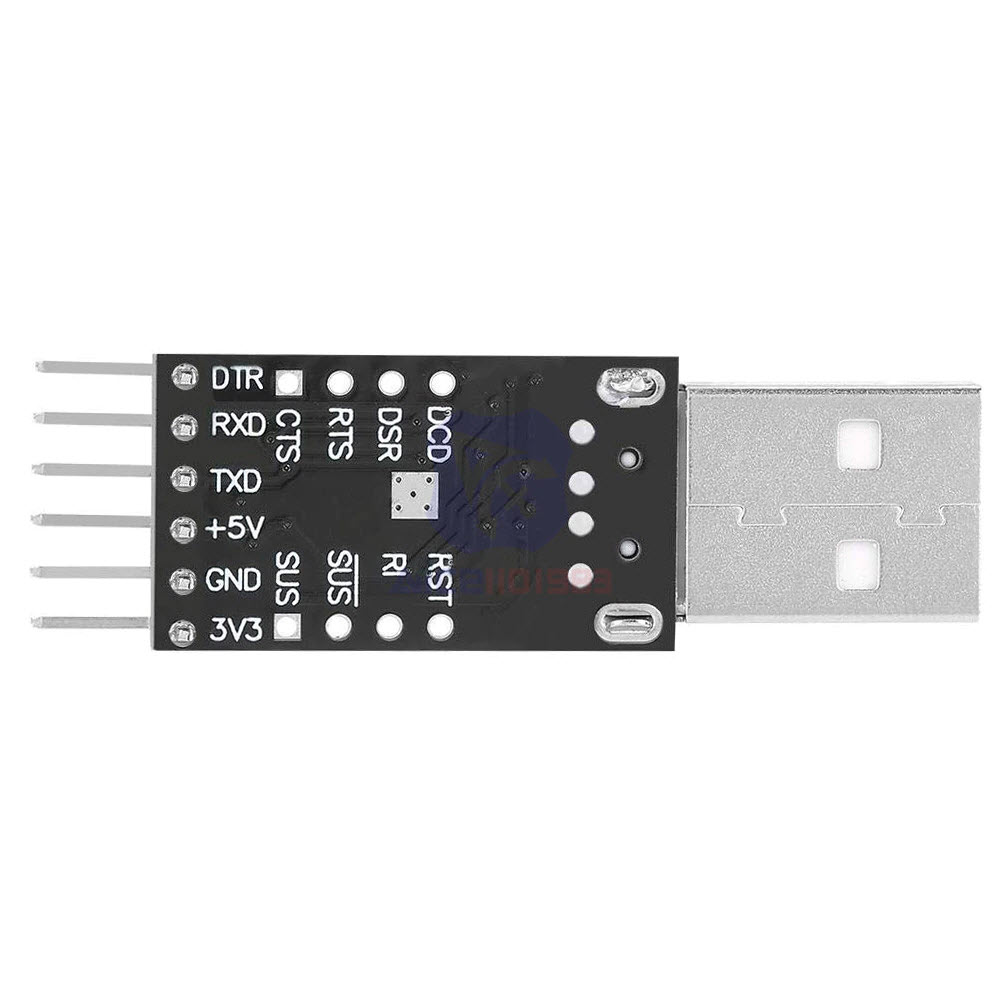

CP2102 USB To TTL/Serial Module Downloader For Arduino

CP2102 USB 2.0 to TTL UART Module 6Pin Serial Converter STC Replace FT232 Module



Product Description



Brand new and high quality.

PCB Dimensions: 26.5mm * 15.6mm

PCB Color: Black

Weight: 4g

using a new chip factory in 2013 CP2102

with self-recovery fuse. In the event of accidental short circuit, it can effectively protect your computer USB port and Downloader

with three LEDs: power indicator, data reception indicator, the data transmission indicator, working status

with 3.3V and 5V dual power output

pin leads to all sorts of useful

with reset signal output, etc. directly to the board Promini download!

Supported operating systems:

Windows 98/Me/2000/XP/7

MAC OS-9

MAC OS

X-Windows CE

Linux 2.40 or later



Feature:



1.included USB transceiver, without external circuit device

2.includes a clock circuit, no external circuitry is

3.includes power-on reset circuit

4.chip 3.3V voltage regulator output voltage can be

5. Meet the USB2.0 specification requirements

6.SUSPEND pin supports USB suspend state

7.asynchronous serial data bus compatible with all handshake and modulation controller interface signals

8.Supported data format is 8 data bits, 1 stop bit and parity bits

9.connotation 512 byte receive buffer and 512 byte transmit buffer

10.Supports hardware handshaking or X-ON/X-OFF







CP2102 its high integration, built-in USB2.0 full-speed function controller, USB transceiver, crystal oscillator, EEPROM, and asynchronous serial data bus (UART), supports full-featured modem signals, without any external USB device. CP2102 with other USB-UART adapter circuit works similar to the PC through the driver's USB port into a virtual COM port in order to achieve the purpose of expansion.
