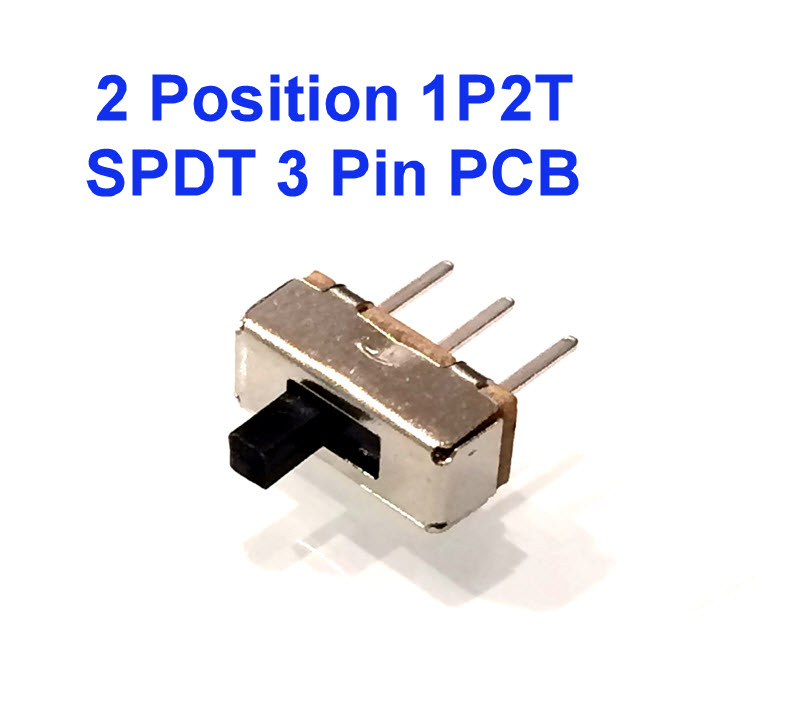

4mm High Knob Slide 2 Position 1P2T SPDT 3 Pin PCB Panel Toys Mini Vertical Slide Toggle Sliding SS12d

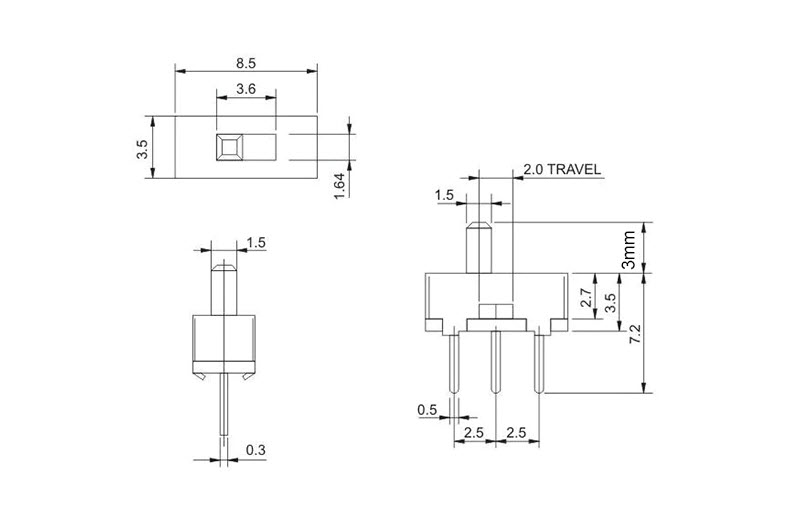

Terminal Length : 3mm/ 0.12";Pin Pitch : 2.54mm / 1";
Main Body Size(not include Pins & Knob) : 8 x 4 x 3.8mm/ 0.31" x 0.16" x 0.15"(L*W*H)
Switch Total Size : 8 x 4 x 10mm/ 0.31" x 0.16" x 0.39"(L*W*H); Knob Size : 1.5 x 1.5 x 3/ 4mm/ 0.06" x 0.06" x 0.12"/0.16"(L*W*H);3 Terminal, Vertical Handle, 1 Pole 2 Position,
Working Power : 0.5A 50V DC;
Contact Resistance : 30mΩ Max;
Insulation Resistance : 100mΩ Min at 500V DC;
Withstand Voltage : AC 500V for 1 min

Feature:

1.Easy Structure, Mini Body

2.a great component for DIY

3. Terminal, Vertical Handle, 1 Pole 2 Position

Applictaion:

Widely used to control operation of many small power electronic projects, including volume and other controls for audio video, dimmer controls for lights,toys etc.
