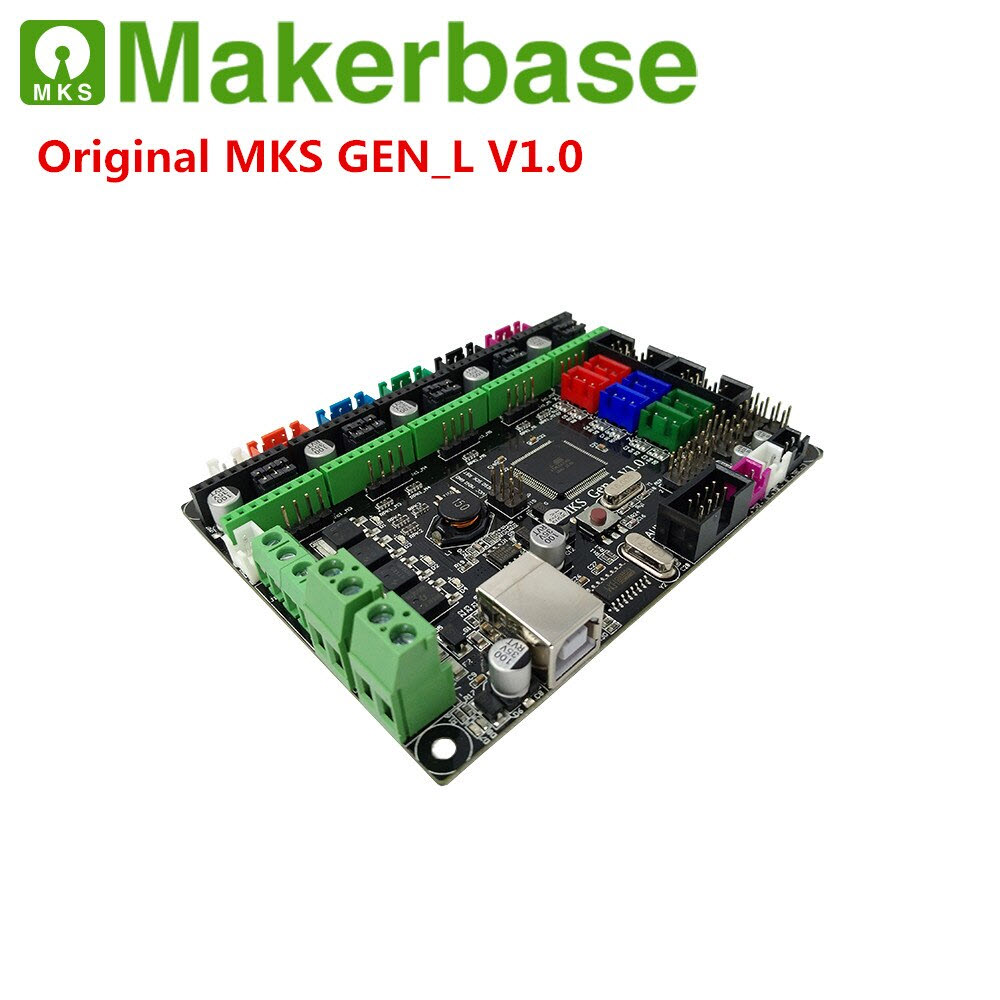

MKS GEN L V1.0 Motherboard Control Board Compatible With Ramps

MKS GEN L V1.0 3D Printer Controller Board



Reserve external driver signal, available to connect external high-current driver to drive the 57 and 86 stepper motors. Use high-quality MOSFET, better cooling effect and more stable.   Use specific power chip, support 12V-24V power input, and resolve t

Stable and reliable filter circuit greatly reduces interference and avoids crashes as possible in the process of printing.  Use CH340 serial port chip, more easily install the drive than 16U2.

Support Ramps 1.4, 2004LCD,12864LCD, TFT28 and TFT32.  X-axis, Y-axis and Z-axis with different color terminal controls the stepper motors and endstops, which is convenient to wire.

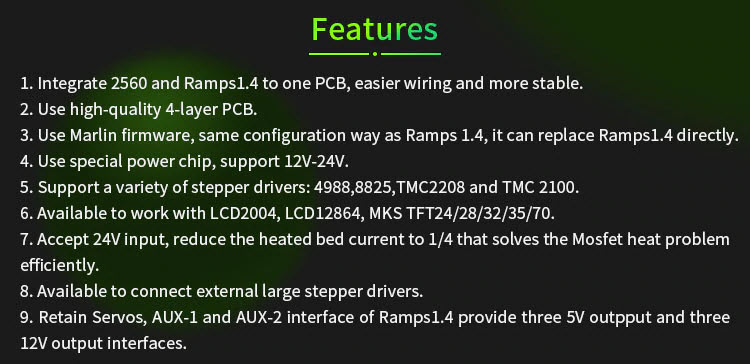

Features:

1. 2560 and Ramps 1.4 are integrated in the board, which avoids the problem of complicated connectors and malfunctioning.

2. Support a variety of stepper drivers such as A4988, DRV8825, TMC2100, available to change the stepper drivers and motors as users like.

3. Reserve external driver signal, available to connect external high-current driver to drive the 57 and 86 stepper motors.

4. Use high-quality MOSFET, better cooling effect and more stable.

5. Use specific power chip, support 12V-24V power input, and resolve the problems of chip heating and power shortage.

6. Stable and reliable filter circuit greatly reduces interference and avoids crashes as possible in the process of printing.

7. Use CH340 serial port chip, more easily install the drive than 16U2.

8. Support 24V input, the heated bed current can be reduced to 1/4 at the same system power which effectively resolves the problem that the MOSFET of heated bed heats.

9. Run Marlin firmware, the configuration is completely same as Ramps 1.4, and available to directly replace the Ramps 1.4.

10. Support Ramps 1.4, 2004LCD,12864LCD, TFT28 and TFT32.

11. X-axis, Y-axis and Z-axis with different color terminal controls the stepper motors and endstops, which is convenient to wire.

12. Plug the stepper drivers according to the different color terminals which decreases the probability of reverse and prevents the controller board damage.





Specifications:

Type: MKS GEN L V1.0 Controller Board

Application: 3D Printer

Package Weight: About 130g





Package List:

1 * MKS Gen-L V1.0

1 * 30cm USB Cable
