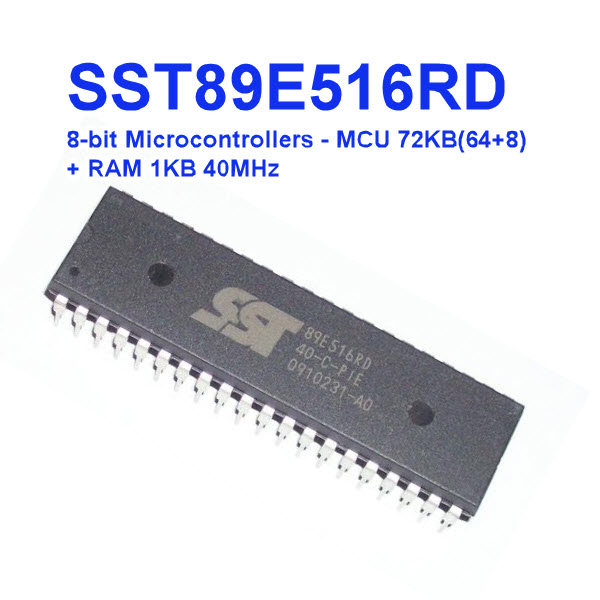

SST89E516RD 8-bit Microcontrollers - MCU 72KB(64+8) + RAM 1KB 40MHz

Pin to pin and Code to code equivalent with old discontinued NXP's P89V51RD2. The SST89E516RD is a member of the FlashFlex family of 8-bit microcontroller products designed and manufactured with SST patented and proprietary SuperFlash CMOS semiconductor process technology. The split-gate cell design and thick-oxide tunneling injector offer significant cost and reliability benefits for SST customers. It uses the 8051 instruction set and is pin-for-pin compatible with standard 8051 microcontroller devices.

SST89E516RD MCU Features:

• 1 KByte Internal RAM
• Dual Block SuperFlash EEPROM– 64 KByte primary block +8 KByte secondary block
• Support External Address Range up to 64KByte of Program and Data Memory
• Three High-Current Drive Ports (16 mA each)
• Three 16-bit Timers/Counters
• Full-Duplex, Enhanced UART– Framing Error Detection– Automatic Address Recognition
• Ten Interrupt Sources at 4 Priority Levels– Four External Interrupt Inputs
• Programmable Watchdog Timer (WDT)
• Programmable Counter Array (PCA)
• Four 8-bit I/O Ports (32 I/O Pins) andOne 4-bit Port
• Second DPTR register
• Low EMI Mode (Inhibit ALE)
• SPI Serial Interface
• Standard 12 Clocks per cycle, the device has adoption to double the speed to 6 clocks per cycle.
• TTL- and CMOS-Compatible Logic Levels
• Brown-out Detection
• Low Power Modes– Power-down Mode with External Interrupt Wake-up– Idle Mode
