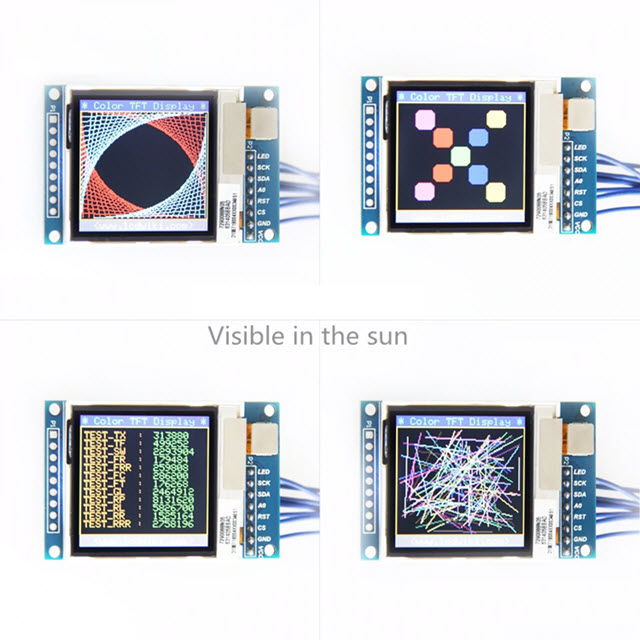

// IMPORTANT: LCDWIKI_SPI LIBRARY MUST BE SPECIFICALLY

// CONFIGURED FOR EITHER THE TFT SHIELD OR THE BREAKOUT BOARD.



//This program is a demo of how to display picture and

//how to use rotate function to display string.



//Set the pins to the correct ones for your development shield or breakout board.

//when using the BREAKOUT BOARD only and using these software spi lines to the LCD,

//there is no MISO pin and You can use any free pin to define the pins,for example

//pin usage as follow:

//             CS  CD  RST  MOSI  MISO  CLK  LED

//Arduino Uno  A5  A3  A4   A2    NONE  A1   A3

//Arduino Mega A5  A3  A4   A2    NONE  A1   A3



//when using the BREAKOUT BOARD only and using these hardware spi lines to the LCD,

//there is no MISO pin

//the MOSI pin and CLK pin is defined by the system and can't be modified.

//other pins can be defined by youself,for example

//pin usage as follow:

//             CS  CD  RST  MOSI  MISO  CLK  LED

//Arduino Uno  10  9   8    11    NONE  13   A3

//Arduino Mega 10  9   8    51    NONE  52   A3



//Remember to set the pins to suit your display module!



#include //Core graphics library

#include //Hardware-specific library



//the definiens of software spi mode as follow:

//if the IC model is known or the modules is unreadable,you can use this constructed function

//LCDWIKI_SPI mylcd(ST7735S,A5,A3,-1,A2,A4,A1,A3);//software spi,model,cs,cd,miso,mosi,reset,clk,led

//LCDWIKI_SPI mylcd(SSD1283A,A5,A3,-1,A2,A4,A1,A3);//software spi,model,cs,cd,miso,mosi,reset,clk,led



//if the IC model is not known and the modules is readable,you can use this constructed function

//LCDWIKI_SPI mylcd(160,128,A5,A3,-1,A2,A4,A1,A3);//software spi,model,cs,cd,miso,mosi,reset,clk

//LCDWIKI_SPI mylcd(130,130,A5,A3,-1,A2,A4,A1,A3);//software spi,model,cs,cd,miso,mosi,reset,clk



//the definiens of hardware spi mode as follow:

//if the IC model is known or the modules is unreadable,you can use this constructed function

//LCDWIKI_SPI mylcd(ST7735S,10,9,8,A3); //hardware spi,cs,cd,reset

LCDWIKI_SPI mylcd(SSD1283A,10,9,8,A3); //hardware spi,cs,cd,reset



//if the IC model is not known and the modules is readable,you can use this constructed function

//LCDWIKI_SPI mylcd(160,128,10,9,8,A3); //hardware spi,cs,cd,reset

//LCDWIKI_SPI mylcd(130,130,10,9,8,A3); //hardware spi,cs,cd,reset



#define BLACK   0x0000

#define BLUE    0x001F

#define RED     0xF800

#define GREEN   0x07E0

#define CYAN    0x07FF

#define MAGENTA 0xF81F

#define YELLOW  0xFFE0

#define WHITE   0xFFFF



void fill_screen_test()

{

  mylcd.Fill_Screen(BLACK);

  mylcd.Fill_Screen(RED);

  mylcd.Fill_Screen(GREEN);

  mylcd.Fill_Screen(BLUE);

  mylcd.Fill_Screen(BLACK);

}



void text_test()

{

  mylcd.Set_Text_Mode(0);



  mylcd.Fill_Screen(BLACK);

  mylcd.Set_Text_Back_colour(BLACK);



  mylcd.Set_Text_colour(WHITE);

  mylcd.Set_Text_Size(1);

  mylcd.Print_String("Hello World!", 0, 0);



  mylcd.Set_Text_colour(YELLOW);

  mylcd.Set_Text_Size(2);

  //mylcd.Print_Number_Float(1234.56,2,0, 8, '.', 0, ' ');

  mylcd.Print_String("mcucity.com", 0, 12);



  mylcd.Set_Text_colour(RED);

  mylcd.Set_Text_Size(3);

  //mylcd.Print_Number_Int(0xDEADBEF, 0, 24, 0, ' ', 16);

  mylcd.Print_String("MCUCITY", 0, 32);



  mylcd.Set_Text_colour(GREEN);

  mylcd.Set_Text_Size(2);

  //mylcd.Print_String("Groop", 0, 48);

  mylcd.Print_String("....", 0, 55);



  mylcd.Set_Text_Size(1);

  mylcd.Print_String("I implore,", 0, 80);



  mylcd.Set_Text_Size(1);

  mylcd.Print_String("my foonting turling.", 0, 96);

  mylcd.Print_String("And hooptiously me",   0, 104);

  mylcd.Print_String("with crinkly bindle,", 0, 112);

  mylcd.Print_String("Or I will rend thee",  0, 120);

}



void lines_test(void)

{

    mylcd.Fill_Screen(BLACK);

      mylcd.Set_Draw_color(GREEN);

    int i = 0;

    for(i = 0; i< mylcd.Get_Display_Width();i+=5)

    {

       mylcd.Draw_Line(0, 0, i, mylcd.Get_Display_Height()-1);

     }

     for(i = mylcd.Get_Display_Height()-1; i>= 0;i-=5)

     {

       mylcd.Draw_Line(0, 0, mylcd.Get_Display_Width()-1, i);

     }



     mylcd.Fill_Screen(BLACK);

       mylcd.Set_Draw_color(RED);

    for(i = mylcd.Get_Display_Width() -1; i>=0;i-=5)

    {

      mylcd.Draw_Line(mylcd.Get_Display_Width()-1, 0, i, mylcd.Get_Display_Height()-1);

     }

    for(i = mylcd.Get_Display_Height()-1; i>=0;i-=5)

    {

      mylcd.Draw_Line(mylcd.Get_Display_Width()-1, 0, 0, i);

     }



     mylcd.Fill_Screen(BLACK);

      mylcd.Set_Draw_color(BLUE);

     for(i = 0; i < mylcd.Get_Display_Width();i+=5)

    {

      mylcd.Draw_Line(0, mylcd.Get_Display_Height()-1, i, 0);

     }

     for(i = 0; i < mylcd.Get_Display_Height();i+=5)

    {

      mylcd.Draw_Line(0, mylcd.Get_Display_Height()-1, mylcd.Get_Display_Width()-1, i);

     }



     mylcd.Fill_Screen(BLACK);

      mylcd.Set_Draw_color(YELLOW);

     for(i = mylcd.Get_Display_Width()-1; i >=0;i-=5)

    {

      mylcd.Draw_Line(mylcd.Get_Display_Width()-1, mylcd.Get_Display_Height()-1, i, 0);

     }

     for(i = 0; i

    {

      mylcd.Draw_Line(mylcd.Get_Display_Width()-1, mylcd.Get_Display_Height()-1, 0, i);

     }

}



void h_l_lines_test(void)

{

    int i=0;

   mylcd.Fill_Screen(BLACK);

     mylcd.Set_Draw_color(GREEN);

    for(i =0;i

    {

      mylcd.Draw_Fast_HLine(0,i,mylcd.Get_Display_Width());

      delay(5);

    }

     mylcd.Set_Draw_color(BLUE);

     for(i =0;i

    {

      mylcd.Draw_Fast_VLine(i,0,mylcd.Get_Display_Height());

           delay(5);

    }

}



void rectangle_test(void)

{

  int i = 0;

   mylcd.Fill_Screen(BLACK);

     mylcd.Set_Draw_color(GREEN);

   for(i = 0;i

   {

      mylcd.Draw_Rectangle(i,(mylcd.Get_Display_Height()-mylcd.Get_Display_Width())/2+i,mylcd.Get_Display_Width()-1-i,mylcd.Get_Display_Height()-(mylcd.Get_Display_Height()-mylcd.Get_Display_Width())/2-i);

        delay(5);

   }

}



void fill_rectangle_test(void)

{

  int i = 0;

   mylcd.Fill_Screen(BLACK);

     mylcd.Set_Draw_color(YELLOW);

   mylcd.Fill_Rectangle(0,(mylcd.Get_Display_Height()-mylcd.Get_Display_Width())/2,mylcd.Get_Display_Width()-1,mylcd.Get_Display_Height()-(mylcd.Get_Display_Height()-mylcd.Get_Display_Width())/2);

    mylcd.Set_Draw_color(MAGENTA);

   for(i = 0;i

   {

      mylcd.Draw_Rectangle(i,(mylcd.Get_Display_Height()-mylcd.Get_Display_Width())/2+i,mylcd.Get_Display_Width()-1-i,mylcd.Get_Display_Height()-(mylcd.Get_Display_Height()-mylcd.Get_Display_Width())/2-i);

        delay(5);

   }

   for(i = 0;i

   {

       mylcd.Set_Draw_color(random(255), random(255), random(255));

      mylcd.Fill_Rectangle(i,(mylcd.Get_Display_Height()-mylcd.Get_Display_Width())/2+i,mylcd.Get_Display_Width()-1-i,mylcd.Get_Display_Height()-(mylcd.Get_Display_Height()-mylcd.Get_Display_Width())/2-i);

        delay(5);

   }

}



void fill_circles_test(void)

{

  int r=10,i=0,j=0;

  mylcd.Fill_Screen(BLACK);

   mylcd.Set_Draw_color(MAGENTA);

  for(i=r;i

  {

    for(j=r;j

    {

      mylcd.Fill_Circle(i, j, r);

    }

  }

}



void circles_test(void)

{

  int r=10,i=0,j=0;

   mylcd.Set_Draw_color(GREEN);

  for(i=0;i

  {

    for(j=0;j

    {

      mylcd.Draw_Circle(i, j, r);

    }

  }

}



void triangles_test(void)

{

   int i = 0;

   mylcd.Fill_Screen(BLACK);

   for(i=0;i

   {

      mylcd.Set_Draw_color(0,i+64,i+64);

      mylcd.Draw_Triangle(mylcd.Get_Display_Width()/2-1,mylcd.Get_Display_Height()/2-1-i,

                    mylcd.Get_Display_Width()/2-1-i,mylcd.Get_Display_Height()/2-1+i,

                    mylcd.Get_Display_Width()/2-1+i,mylcd.Get_Display_Height()/2-1+i);

   }

}



void fill_triangles_test(void)

{

   int i = 0;

   mylcd.Fill_Screen(BLACK);

    for(i=mylcd.Get_Display_Width()/2-1;i>0;i-=5)

   {



      mylcd.Set_Draw_color(0,i+64,i+64);

      mylcd.Fill_Triangle(mylcd.Get_Display_Width()/2-1,mylcd.Get_Display_Height()/2-1-i,

                    mylcd.Get_Display_Width()/2-1-i,mylcd.Get_Display_Height()/2-1+i,

                    mylcd.Get_Display_Width()/2-1+i,mylcd.Get_Display_Height()/2-1+i);

      mylcd.Set_Draw_color(i,0,i);

      mylcd.Draw_Triangle(mylcd.Get_Display_Width()/2-1,mylcd.Get_Display_Height()/2-1-i,

                    mylcd.Get_Display_Width()/2-1-i,mylcd.Get_Display_Height()/2-1+i,

                    mylcd.Get_Display_Width()/2-1+i,mylcd.Get_Display_Height()/2-1+i);

   }

}



void round_rectangle(void)

{

   int i = 0;

   mylcd.Fill_Screen(BLACK);

     for(i = 0;i

   {

       mylcd.Set_Draw_color(255-i,0,160-i);

      mylcd.Draw_Round_Rectangle(i,(mylcd.Get_Display_Height()-mylcd.Get_Display_Width())/2+i,mylcd.Get_Display_Width()-1-i,mylcd.Get_Display_Height()-(mylcd.Get_Display_Height()-mylcd.Get_Display_Width())/2-i,8);

        delay(5);

   }

}



void fill_round_rectangle(void)

{

     int i = 0;

   mylcd.Fill_Screen(BLACK);

     for(i = 0;i

   {

       mylcd.Set_Draw_color(255-i,160-i,0);

      mylcd.Fill_Round_Rectangle(i,(mylcd.Get_Display_Height()-mylcd.Get_Display_Width())/2+i,mylcd.Get_Display_Width()-1-i,mylcd.Get_Display_Height()-(mylcd.Get_Display_Height()-mylcd.Get_Display_Width())/2-i,8);

        delay(5);

   }

}



void setup()

{

  mylcd.Init_LCD();

  fill_screen_test();  delay(500);

  text_test();         delay(500);

  lines_test();        delay(500);

  h_l_lines_test();    delay(500);

  rectangle_test();    delay(500);

  fill_rectangle_test();   delay(500);

  fill_circles_test();     delay(500);

  circles_test();          delay(500);

  triangles_test();        delay(500);

  fill_triangles_test();   delay(500);

  round_rectangle();       delay(500);

  fill_round_rectangle();  delay(3000);

}



void loop()

{

    mylcd.Set_Rotation(1);

    text_test();

    delay(2000);



// for(uint8_t rotation=0; rotation<4; rotation++)

// {

//    mylcd.Set_Rotation(rotation);

//    text_test();

//    delay(2000);

// }

}
