DRV8833 2 Channel DC Motor Driver 1.5A/3-10V Module โมดูลขับมอเตอร์ DRV8832 2 ช่อง

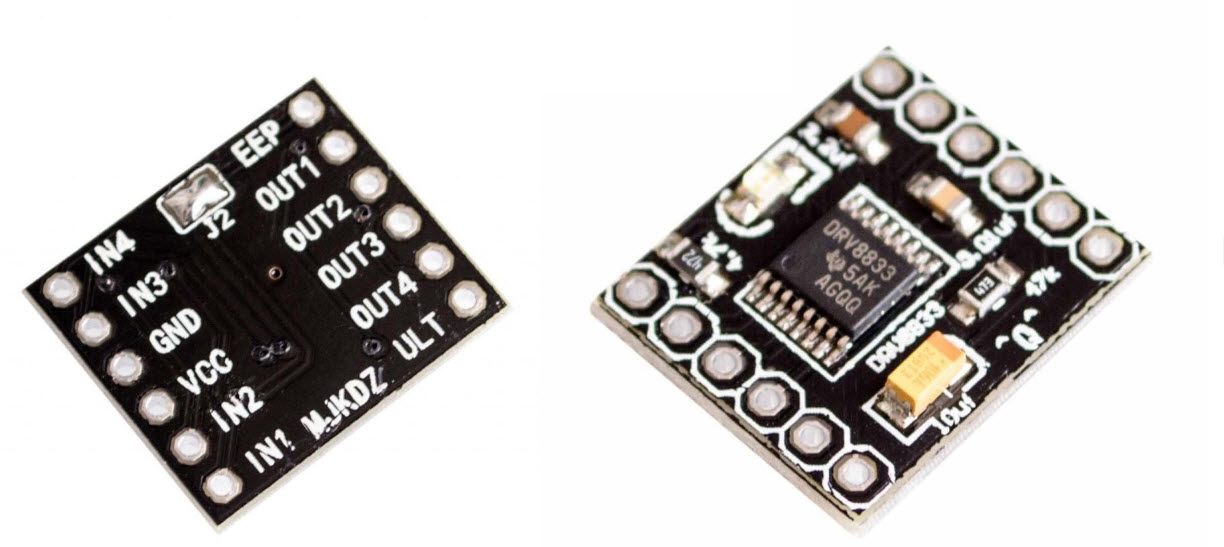

This DRV8833 dual H-bridge motor driver is the substitution of TB6612FNG Dual Channel Motor Driver. It can be used for bidirectional control of two brushed DC motors at 2.7 V to 10.8 V. It can supply up to about 1.2 A per channel continuously and can tolerate peak currents up to 2 A per channel for a few seconds, making it an ideal driver for small motors that run on relatively low voltages. The board ships populated with SMD components, including the DRV8833, and adds an FET for reverse battery protection.

This board is very similar to our DRV8835 dual motor driver carrier in operating voltage range and continuous current rating, but the DRV8835 has a lower minimum operating voltage, offers an extra control interface mode, and is 0.1″ smaller in each dimension; we also carry a DRV8835 dual motor driver shield that is easy to use with an Arduino. The DRV8833 has a higher peak current rating (2 A per channel vs 1.5 A), optional built-in current-limiting, and no need for externally supplied logic voltage.



Input voltage: 3-10V

Single H-bridge output current: 1.5A, can drive two DC gear motors.

Built-in over-current protection, short circuit protection, undervoltage lockout and overtemperature protection. With a low-power sleep mode.

Applicaion: can drive 1.5A or less DC motor and 4-wire stepper motors

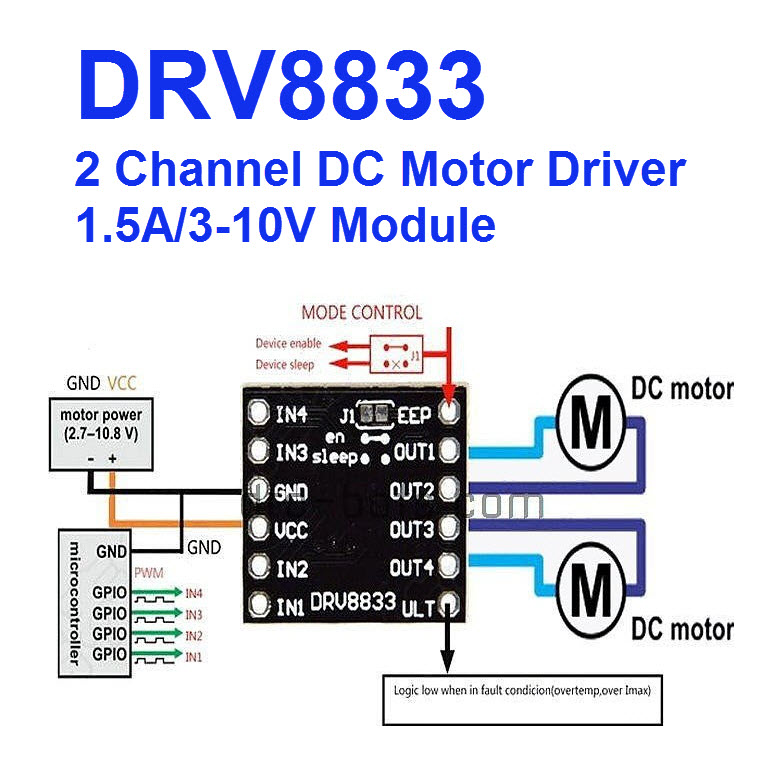

รายละเอียด Pin DRV8833 2 Channel DC Motor Driver Module 1.5A

ULT PIN:mode set.Low level is sleep mode

OUT1,OUT2:1-channel H-bridge controlled by IN1/IN2

OUT3,OUT4:2-channel H-bridge controlled by IN3/IN4

EEP PIN:Output protection.Default no need to connect.

VCC:3-10V

Board Size: 18.5 x 16mm
