HC-SR04 (US-025) CS100 (3.3V-5V) Ultrasonic Distance Measuring Sensor Module

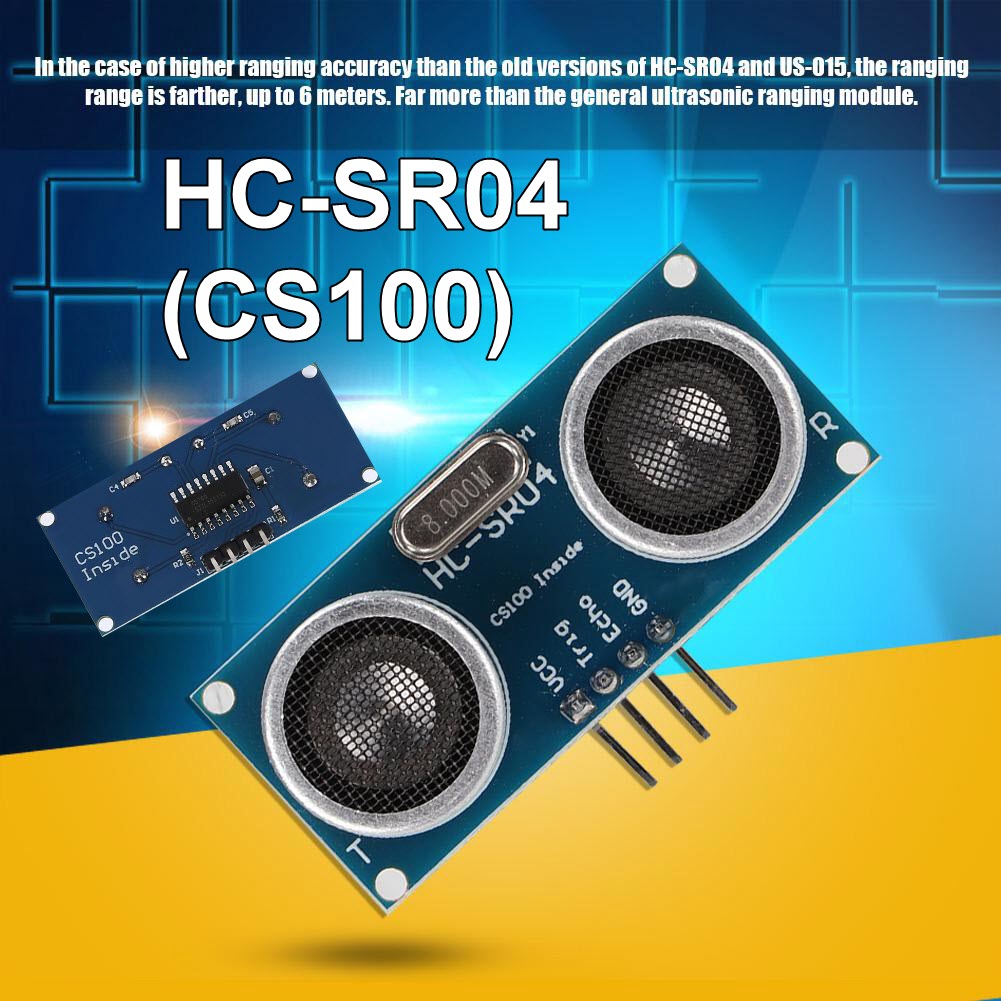

•  The new version of HC-SR04 has far more performance than the old version of HC-SR04 and US-015. In the case of higher ranging accuracy than the old versions of HC-SR04 and US-015, the ranging range is farther, up to 6 meters. Far more than the general ultrasonic ranging module.

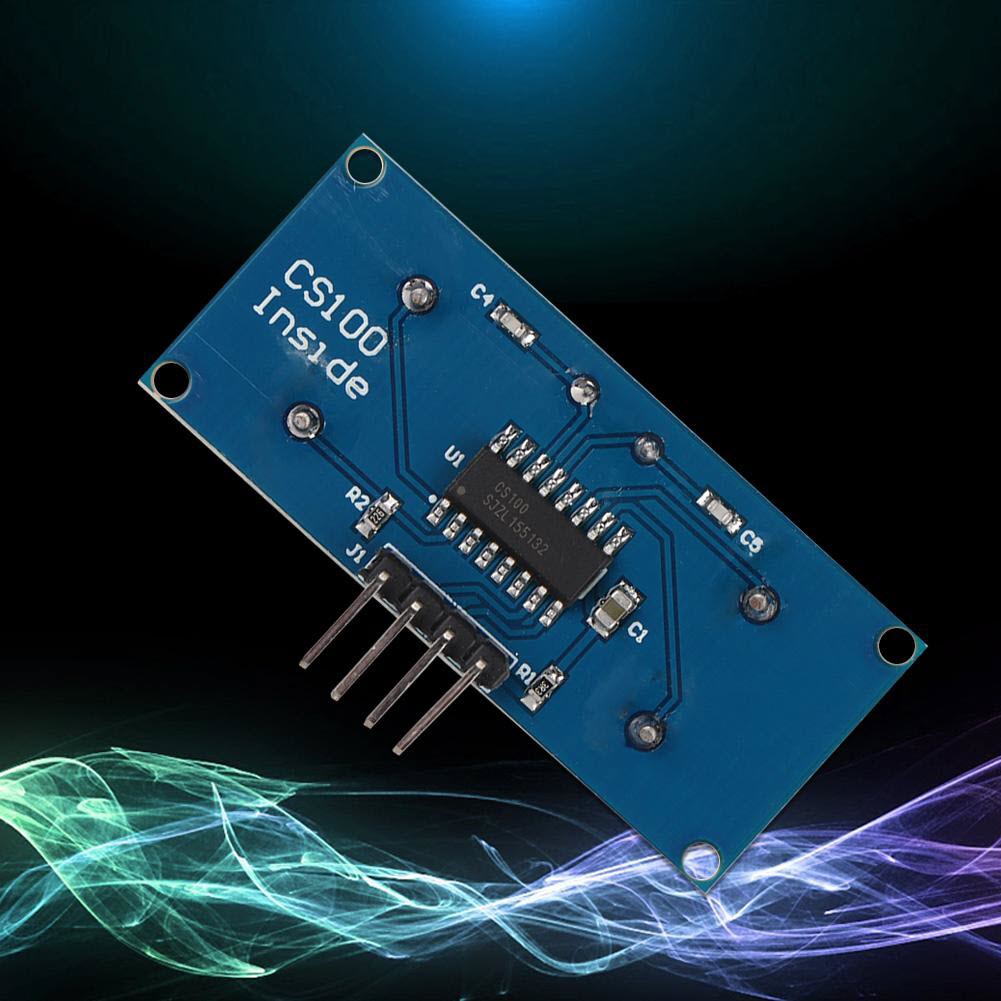

•  Adopt CS-100 ultrasonic ranging SOC chip, high performance, industrial grade, wide voltage, low price,  and the performance far exceeds the ordinary ultrasonic ranging module.
• Data download link: https://pan.baidu.com/s/1sSah9PvLBrmbA7So-6YcSw Extraction code: qq35.
• HC-SR04 ultrasonic ranging module can realize non-contact ranging function of 2cm~6m, working voltage is 3V-5.5V, working current is 5.3mA, support GPIO communication mode, work is stable and reliable.
• The new HC-SR04 is the same size as the old HC-SR04, and the interface is fully compatible; but the distance measurement is longer, the accuracy is higher, the working voltage is wider, and it is industrial grade.

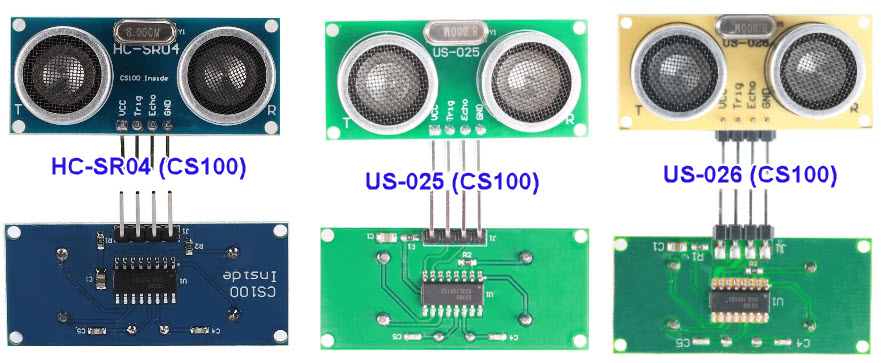

• The performance is the same as that of US-025 and US-026. Both adopt CS100 chip and the interface is fully compatible.

There are 4 pins on the module: VCC , Trig, Echo, and GND . To use the sensor: pull the Trig pin to high level for more than 10us to trigger an impulse. The module will begin sending ultrasonic pulses. If an object is detected in front of the sensor the Echo pin will rise to a logic high level. The distance between the sensor and the object can then be calculated using the equation below.



Distance = ((Duration)*(Sonic :340m/s))/2



/* HC-SR04 Sensor
https://www.dealextreme.com/p/hc-sr04-ultrasonic-sensor-distance-measuring-module-133696

This sketch reads a HC-SR04 ultrasonic rangefinder and returns the
distance to the closest object in range. To do this, it sends a pulse
to the sensor to initiate a reading, then listens for a pulse
to return. The length of the returning pulse is proportional to
the distance of the object from the sensor.

The circuit:
* VCC connection of the sensor attached to +5V
* GND connection of the sensor attached to ground
* TRIG connection of the sensor attached to digital pin 2
* ECHO connection of the sensor attached to digital pin 4


Original code for Ping))) example was created by David A. Mellis
Adapted for HC-SR04 by Tautvidas Sipavicius

This example code is in the public domain.
*/

long microsecondsToInches(long microseconds);
long microsecondsToCentimeters(long microseconds);

const int trigPin = 2;
const int echoPin = 4;

void setup() {
// initialize serial communication:
Serial.begin(9600);
}

void loop()
{
// establish variables for duration of the ping,
// and the distance result in inches and centimeters:
long duration, inches, cm;

// The sensor is triggered by a HIGH pulse of 10 or more microseconds.
// Give a short LOW pulse beforehand to ensure a clean HIGH pulse:
pinMode(trigPin, OUTPUT);
digitalWrite(trigPin, LOW);
delayMicroseconds(2);
digitalWrite(trigPin, HIGH);
delayMicroseconds(10);
digitalWrite(trigPin, LOW);

// Read the signal from the sensor: a HIGH pulse whose
// duration is the time (in microseconds) from the sending
// of the ping to the reception of its echo off of an object.
pinMode(echoPin, INPUT);
duration = pulseIn(echoPin, HIGH);

// convert the time into a distance
inches = microsecondsToInches(duration);
cm = microsecondsToCentimeters(duration);

Serial.print(inches);
Serial.print("in, ");
Serial.print(cm);
Serial.print("cm");
Serial.println();

delay(100);
}

long microsecondsToInches(long microseconds)
{
// According to Parallax's datasheet for the PING))), there are
// 73.746 microseconds per inch (i.e. sound travels at 1130 feet per
// second). This gives the distance travelled by the ping, outbound
// and return, so we divide by 2 to get the distance of the obstacle.
// See: http://www.parallax.com/dl/docs/prod/acc/28015-PING-v1.3.pdf
return microseconds / 74 / 2;
}

long microsecondsToCentimeters(long microseconds)
{
// The speed of sound is 340 m/s or 29 microseconds per centimeter.
// The ping travels out and back, so to find the distance of the
// object we take half of the distance travelled.
return microseconds / 29 / 2;
}





Schematic HC-SR04/US-025/US-026 chip CS-100
