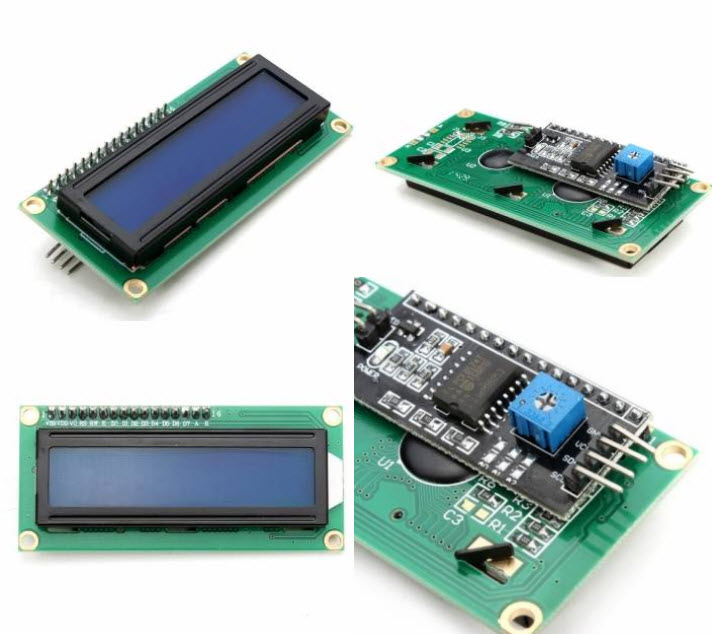

I2C LCD1602 16x2 Serial LCD-Module Display for Arduino (BLUE)

I2C LCD1602 16x2 Serial LCD-Module Display for Arduino (BLUE)
I2C LCD1602 16x2 Serial LCD-Module Display for Arduino (BLUE)I2C LCD1602 16x2 Serial LCD-Module Display for Arduino (BLUE)I2C LCD1602 16x2 Serial LCD-Module Display for Arduino (BLUE)I2C LCD1602 16x2 Serial LCD-Module Display for Arduino (BLUE)
รหัสสินค้า M304
หมวดหมู่ จอ LCD 1602 2004 5110
ราคา 60.00 บาท
น้ำหนัก 38 กรัม
สถานะสินค้า พร้อมส่ง
ลงสินค้า 16 พ.ค. 2559
อัพเดทล่าสุด 9 ส.ค. 2568
จำนวน
Unit
หยิบลงตะกร้า
บัตรประชาชน
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay

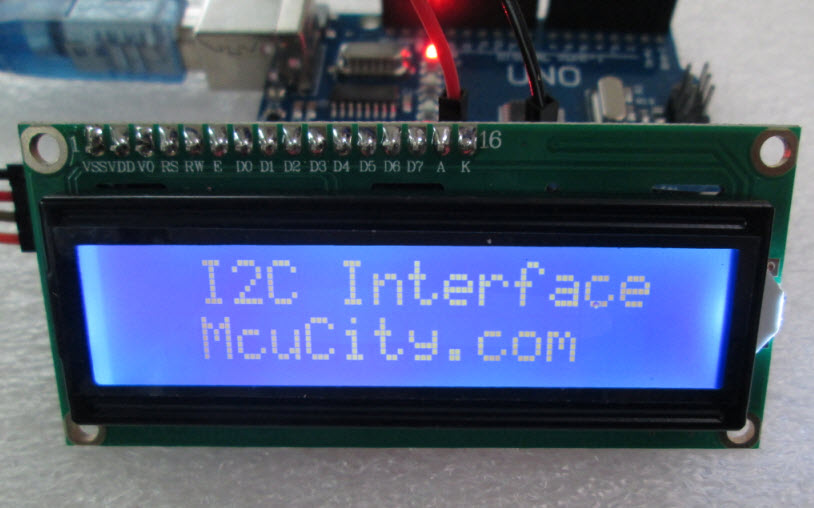

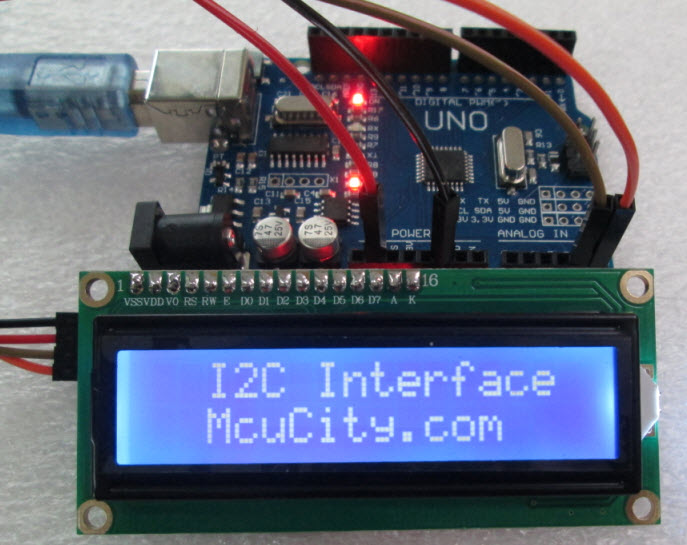

It is another great blue backlight LCD display. As the pin resources of Arduino controller is limited, your project may be not able to use normal LCD shield after connected with a certain quantity of sensors or SD card. However, with this I2C interface LCD module, you will be able to realize data display via only 2 wires. If you already has I2C devices in your project, this LCD module actually cost no more resources at all. It is fantastic for Arduino based project.

IIC/I2C/TWI 1602 16x2 Serial LCD Module Display for Arduino

Specification
#  I2C Address: 0x27  ( PCF8574T )

#  I2C Address: 0x3F  ( PCF8574AT )

#  Backlight (White character on Blue background)
#  Supply voltage: 5V
#  Size: 82x35x18 mm
#  Come with IIC interface, which can be connected by DuPont Line



Package Include



1 X IIC/I2C/TWI 1602 Serial LCD Module





//Compatible with the Arduino IDE 1.0 ,1.6.xxx=-



#include

#include





// PCF8574AT set the LCD address to 0x3F

LiquidCrystal_I2C lcd(0x3F,16,2);



// PCF8574T  set the LCD address to 0x27

LiquidCrystal_I2C lcd2(0x27,16,2);





void setup()

{

  //lcd.init();                      // initialize the lcd

  //lcd2.init();                     // initialize the lcd

  lcd.begin();

  lcd2.begin();

  // Print a message to the LCD.

  lcd.backlight();

  lcd2.backlight();

  //lcd.print("Hello, world!");



  lcd.home ();   // ไปที่ตัวอักษรที่ 0 แถวที่ 1

  lcd2.home ();  // ไปที่ตัวอักษรที่ 0 แถวที่ 1



  //-------- PCF8574AT

  lcd.setCursor(1,0); // ไปทตัวอักษรที่ 1 แถวที่ 1

  lcd.print("I2C LCD1602_AT");

  lcd.setCursor(2,1); // ไปที่ตัวอักษรที่ 2 แถวที่ 2

  lcd.print("Address 0x3F");



  //-------- PCF8574T

  lcd2.setCursor(1,0); // ไปทตัวอักษรที่ 1 แถวที่ 1

  lcd2.print("I2C LCD1602_T");

  lcd2.setCursor(2,1); // ไปที่ตัวอักษรที่ 2 แถวที่ 2

  lcd2.print("Address 0x27");

}



void loop()

{

    // Do nothing here...

}
