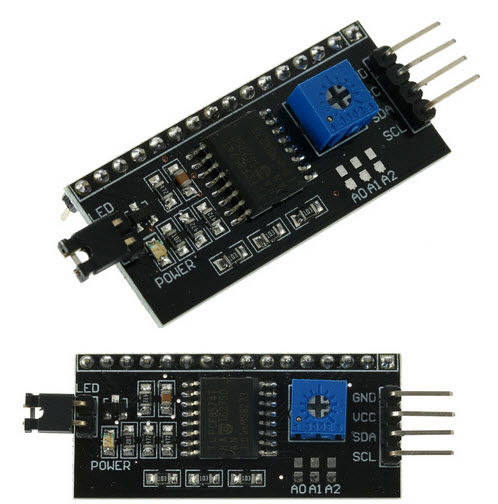

I2C PCF8574T PCF8574AT Board Module Arduino 1602 2004 LCD Display

Specification:

This is another great IIC/I2C/TWI/ Serial Interface. As the pin resources of Arduino controller is limited, your project may be not able to use normal LCD shield after connected with a certain quantity of sensors or SD card. However, with this I2C interface module, you will be able to realize data display via only 2 wires. If you already has I2C devices in your project, this LCD module actually cost no more resources at all. It is fantastic for Arduino based project.

• PCF8574T I2C Address: 0X20~0X27 (the original address is 0X20,you can change it yourself)
• PCF8574AT I2C Address: 0X38~0X3F (the original address is 0X38,you can change it yourself)
• Supply voltage: 5V
• the backlight and contrast is adjusted by potentiometer
• Come with 2 IIC interface, which can be connected by Dupont Line or IIC dedicated cable
• Compatible for 1602 LCD 2004 LCD

Downlod library

Downlod Material

Specifications:
Size:54*19 mm(max)
Net weight:6 g
Package weight:16 g
Main Color:Black

Packing Content:
1 x IIC/I2C/TWI/ Serial Interface Board Module Port

//---------------------------------------------------

#include

#include

// PCF8574T  set the LCD address to 0x27 for a 16 chars and 2 line display

LiquidCrystal_I2C lcd(0x27,16,2);

// PCF8574AT set the LCD address to 0x27 for a 16 chars and 2 line display

// LiquidCrystal_I2C lcd(0x3F,16,2);

void setup()

{

  lcd.init();                      // initialize the lcd

  // Print a message to the LCD.

  lcd.backlight();

  //lcd.print("Hello, world!");

  lcd.home (); // ไปที่ตัวอักษรที่0แถวที่1

  lcd.setCursor(1,0); // ไปทตัวอักษรที่1แถวที่1

  lcd.print("I2C Interface");

  lcd.setCursor(2,1); // ไปที่ตัวอักษรที่2แถวที่2

  lcd.print("McuCity.com");

}

void loop()

{

}

//---------------------------------------------------
