Non‐contact Liquid Level Sensor XKC‐Y25‐T12V(NPN), XKC-Y25-PNP

Description:



Intelligent non-contact liquid level sensor (here in after referred to as the liquid level sensor) adopted the advanced signal processing technology and high-speed signal processing chip, broke through the vessel wall thickness, the influence of realized in an airtight container level of real non-contact detection.Liquid level sensor (probe) installed on the outer wall of the container to be tested on the lower part (level of high and low), non-metallic containers without the hole, easy to install, do not affect production. Can realize various toxic substances of high pressure airtight container, strong acid, strong alkali and all kinds of liquid level detection.The material of liquid level sensor for liquid medium and container no special requirements, can be widely used.



Feature:



No direct contact with liquid

PNР output

Working Voltage: 5V～24V

Induction distance can reach more than 12 mm

Easy to use

Power flow: 5 mA

Output voltage (high level):InVCC

Output voltage (low level): 0 v

The output current: 1 ～ 50 mA

The response time: 500 ms

Working environment temperature: 0 ～100 ℃

The thickness of the induction (sensitivity): 0 ～ 20 mm

humidity: 5% ～ 100%

The material: ABS.

Waterproof properties: IP67

Level error: 1.5mm

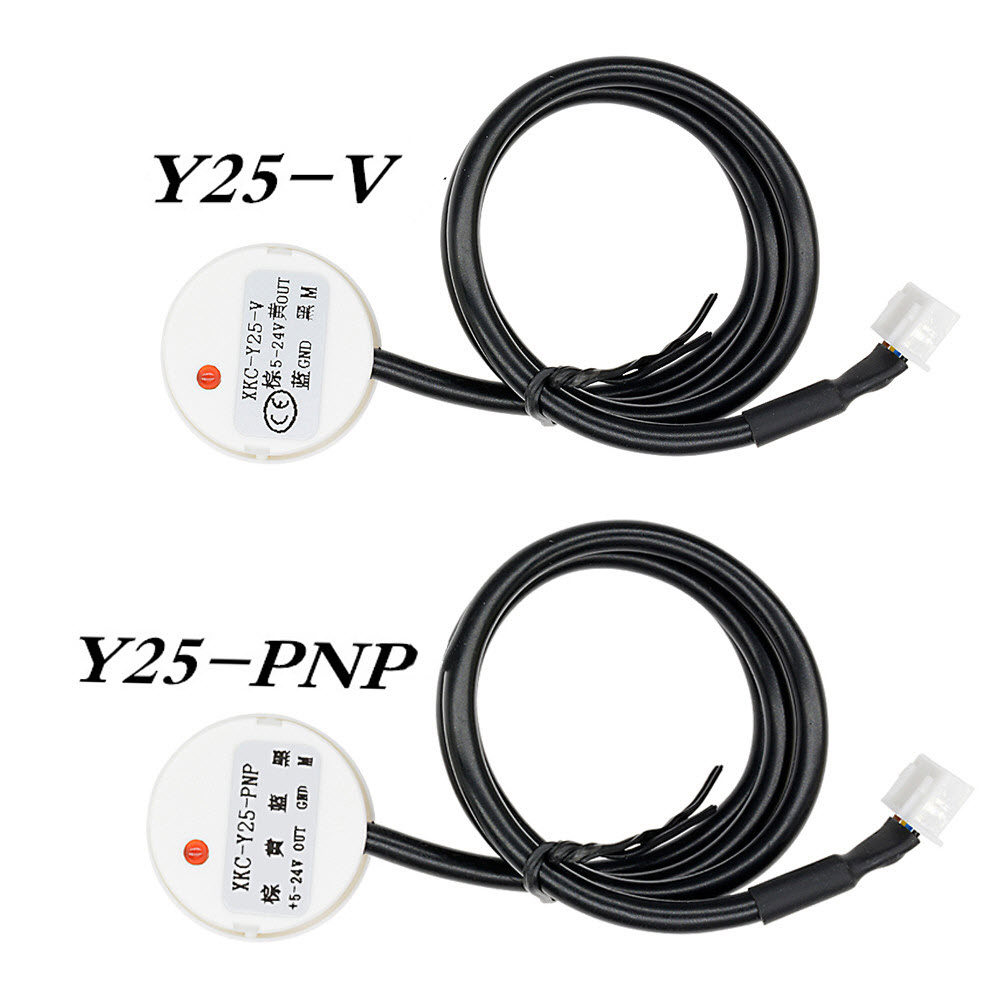

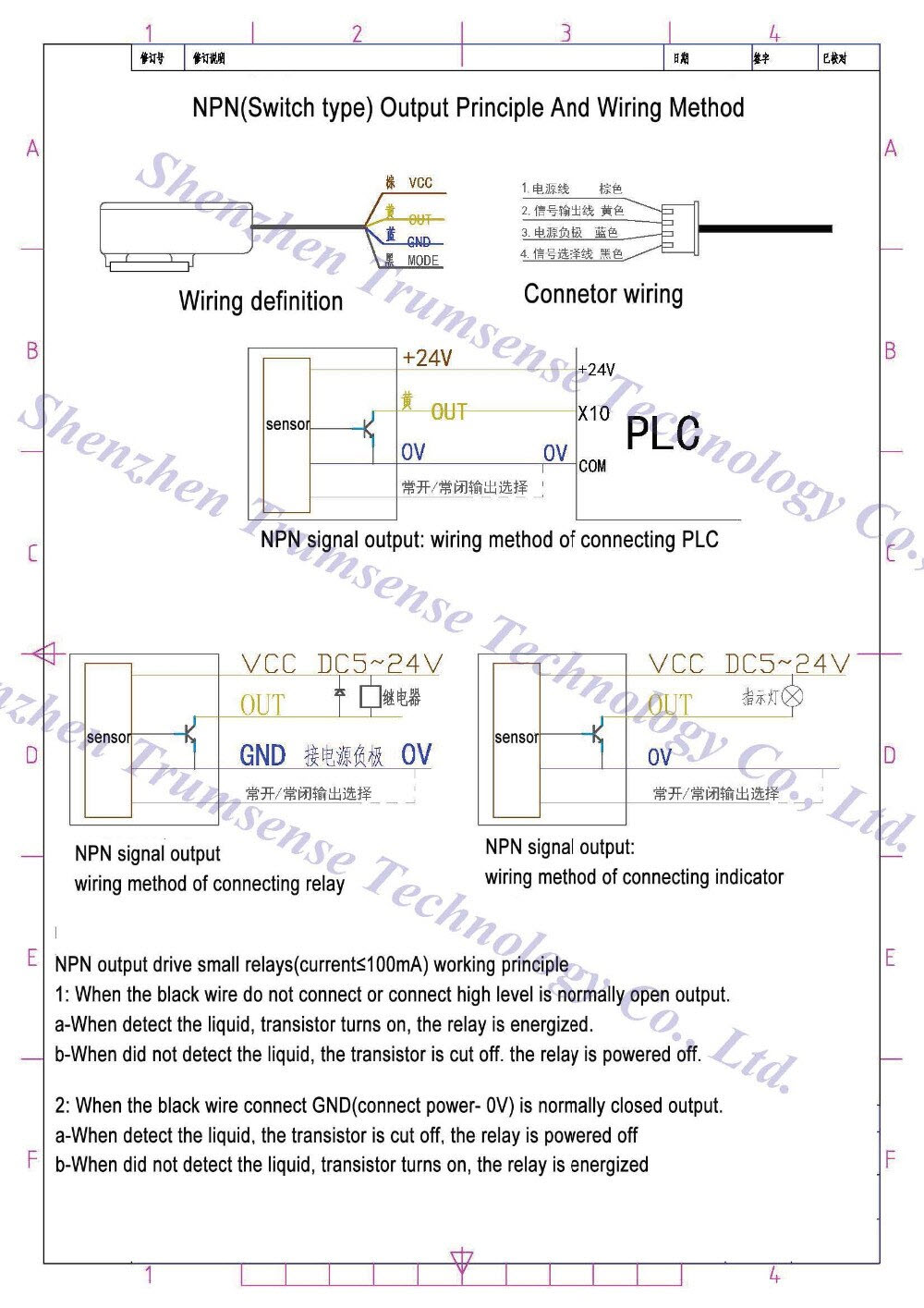

XKC-Y25-V (NPN), XKC-Y25-T12V

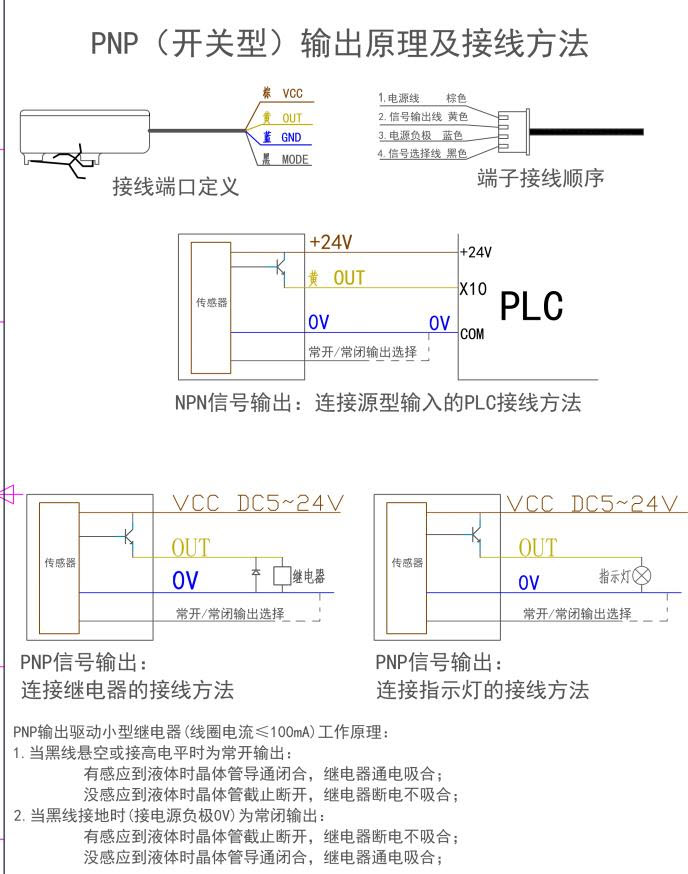

XKC-Y25-PNP
