Time-delayable timing chip / delay chip / trigger delay IC / 2s-1000h timing IC

Time-delayable timing chip / delay chip / trigger delay IC / 2s-1000h timing IC
รหัสสินค้า M2961
หมวดหมู่ บอร์ดควบคุมทั่วไป (General control board)
ราคา 5.00 บาท
น้ำหนัก 3 กรัม
สถานะสินค้า พร้อมส่ง
ลงสินค้า 12 ต.ค. 2562
อัพเดทล่าสุด 25 ม.ค. 2567
จำนวน
pcs
หยิบลงตะกร้า
บัตรประชาชน
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay
Please download the specification by yourself, copy the content in the following brackets into the browser to enter the download (no registration required):

{http://pan.baidu.com/share/link?shareid=44472&uk=4147086434}

Approx.
12mm * 12mm, working voltage 2v-5v, timing time can be set from minimum 2 seconds to maximum 1000 hours :

Function and design description:
1. The circuit is connected as required and the time resistance and power supply voltage are set;
2. The output terminal is high level before power-on;
3. The "falling edge" trigger of the trigger terminal is valid, and the output terminal becomes low level immediately after the trigger and the circuit starts timing;
4. The output end will return to high level after the set timing time, and wait for the next "falling edge" trigger;
5. The chip is a non-repetitive trigger type, which means that if the chip continues to trigger during the low level output period after the trigger, the trigger is invalid;
6. The "falling edge" trigger at the trigger end refers to the moment of change from high level to low level;
7. Generally high level refers to VCC voltage, low level refers to 0-0.3v or GND, as long as it meets the requirements of this level;
8. The trigger terminal can be connected to the touch switch or the IO port of the single-chip computer or other digital circuits to generate a "falling edge" can be effectively triggered;
9. Can be designed as a power-on trigger, only need to short-circuit the trigger end to ground, the power will be triggered, the output will return to high level after the time is up, wait for the next
The falling edge is triggered again.

Chip characteristics:
1. Using CMOS process with low power consumption, lead-free and environmentally friendly.
2. Output low level can push LED directly (please add current limiting resistor), output high level can push triode (please add current limiting resistor).
3. Timing time can be adjusted with resistance, there are 8 * N (N = 0.1.2.3) times timing selection, the time can be adjusted from 2s-1000h.
4. Choose the trigger timing and the triggering terminal power-on timing.
5. Standby output high level, falling edge trigger, output low level after triggering, and recover high level after the delay.

Pin description:

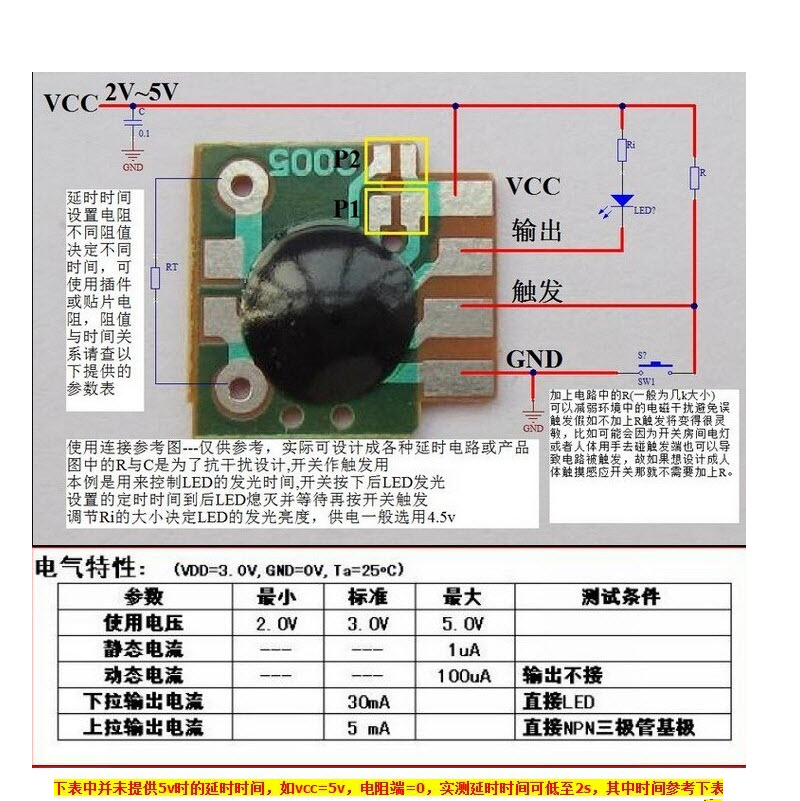

The figure below counts from bottom to top: PIN1 = power negative, PIN2 = trigger, PIN3 = output, PIN4 = power positive
The timing of P1 short circuit (short circuit of two small pads) in the figure below is equal to the time in the resistance table multiplied by 8 times
The timing of P2 short circuit (short circuit of two small pads) in the figure below is equal to the time in the resistance table multiplied by 64 times
The timing of P1 and P2 are short-circuited at the same time (the two small pads are short-circuited). The timing time is equal to the time in the resistance table times 512 times

 The following pictures and parameter tables provide more design information, please refer to them carefully:
