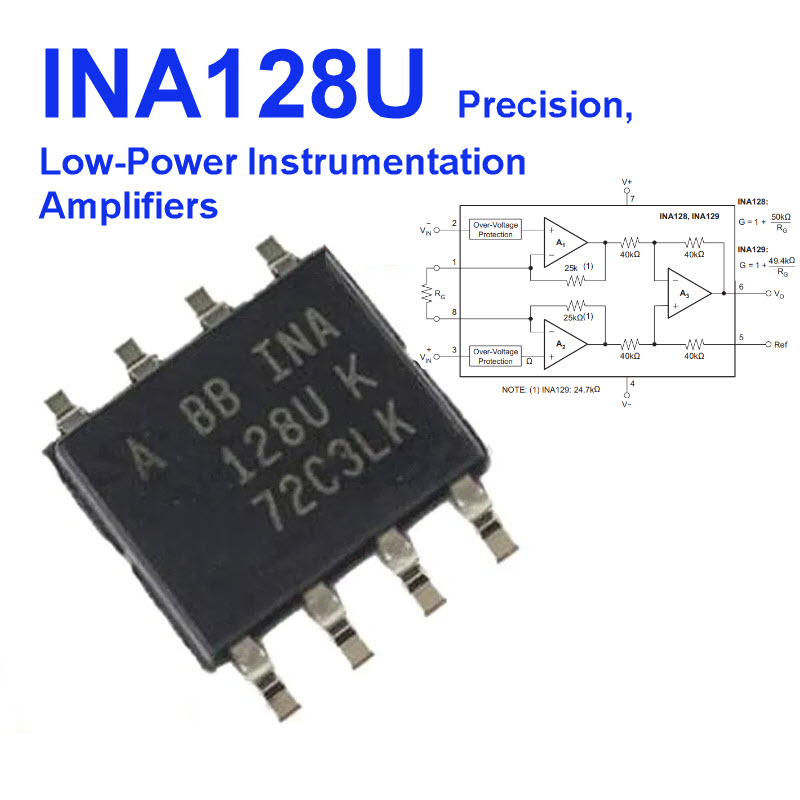

The INA128 and INA129 are low-power, general purpose instrumentation amplifiers offering excellent accuracy. The versatile 3-op amp design and small size make these amplifiers ideal for a wide range of applications. Current-feedback input circuitry provides wide bandwidth even at high gain (200 kHz at G = 100).

A single external resistor sets any gain from 1 to 10,000. The INA128 provides an industry-standard gain equation; the INA129 gain equation is compatible with the AD620.

The INA12x is available in 8-pin plastic DIP and SO-8 surface-mount packages, specified for the –40°C to +85°C temperature range. The INA128 is also available in a dual configuration, the INA2128.

Low offset voltage: 50 μV maximum Low drift: 0.5 μV/°C maximum  Low Input Bias Current: 5 nA maximum  High CMR: 120 dB minimum  Inputs protected to ±40 V Wide supply range: ±2.25 V to ±18 V Low quiescent current: 700 μA Packages: 8-pin plastic DIP, SO-8V	Temperature operating range: -40°C to +125°C Package/case: 8-SOIC
Bridge amplifier Thermocouple amplifier RTD sensor amplifier Medical instrumentation Data acquisition	General multichannel isolation
