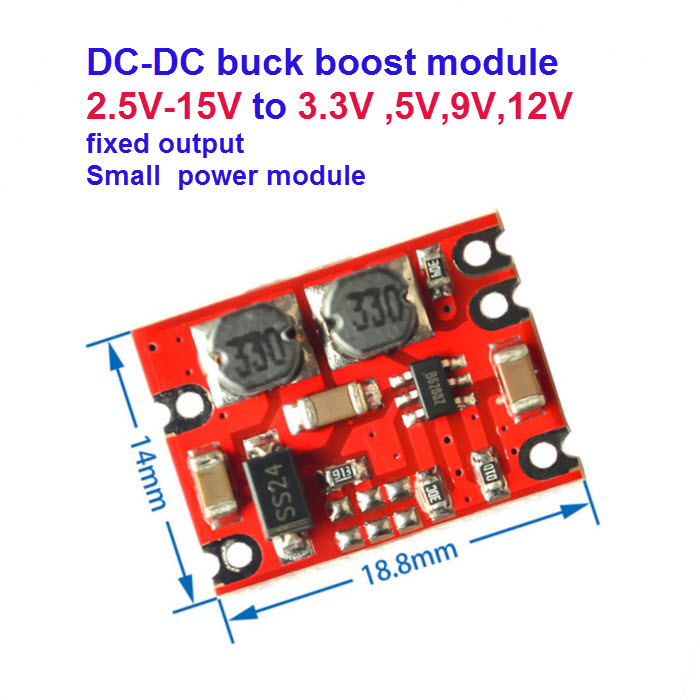

DC-DC 2.5V-15V to 3.3V,/4.2V/5V/9V/12V Fixed Output/ Buck-boost Power Supply Module. MT3608

DC-DC power modules are optimized to support the automatic shutdown function.

The maximum input voltage is 15VDC power while employing less than 200uA output and 3.3V/4.2V/5V/9V/12V fixed output currents up to 600mA.

Designers working frequency up to 1.2MHz, high stability, low cost components, industrial type, voltage, active life free from short circuits ideal for applications that demand.

Widely used in communications equipment, digital radios, toys, model aircraft, industrial motherboards, motherboard microcontroller household appliances, power supply, automotive, security monitoring, field data collection, street lamps.

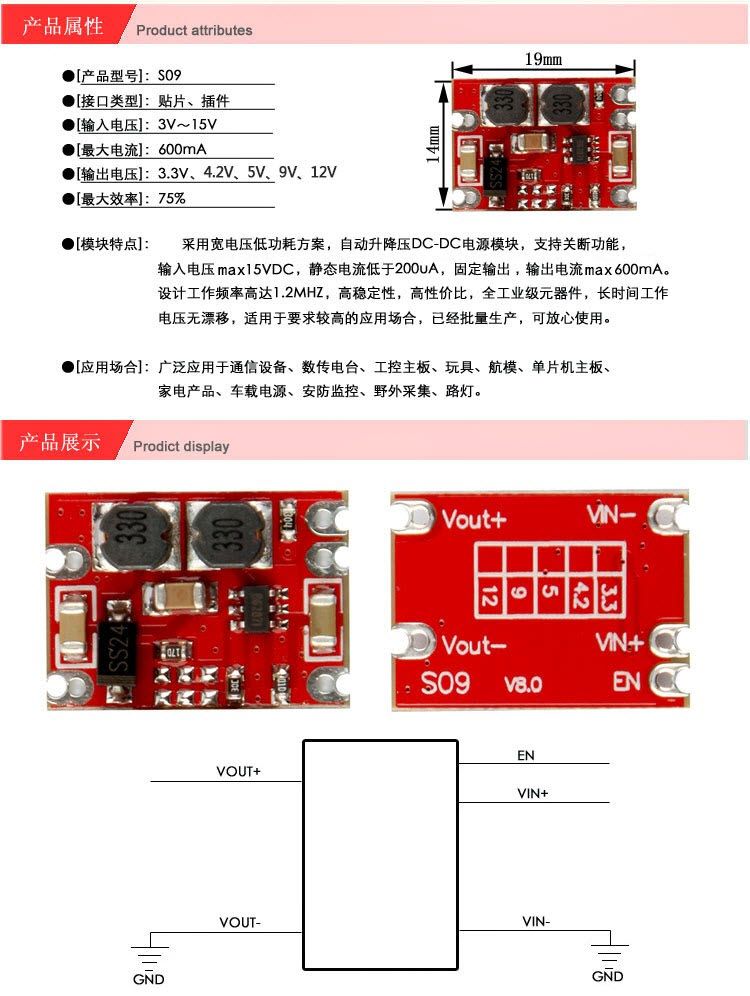

Chip	MT3608 (B6288)
input voltage	3v-15v
output voltage	3.3v/4.2V/5V/9V/12V
output current	0.6A  (600mA)
conversion efficiency	75%
output ripple	<50mV
output accuracy	+- 0.1V
working temperature	-20 - +85 celsius
relative humidity	relative humidity:20-90%

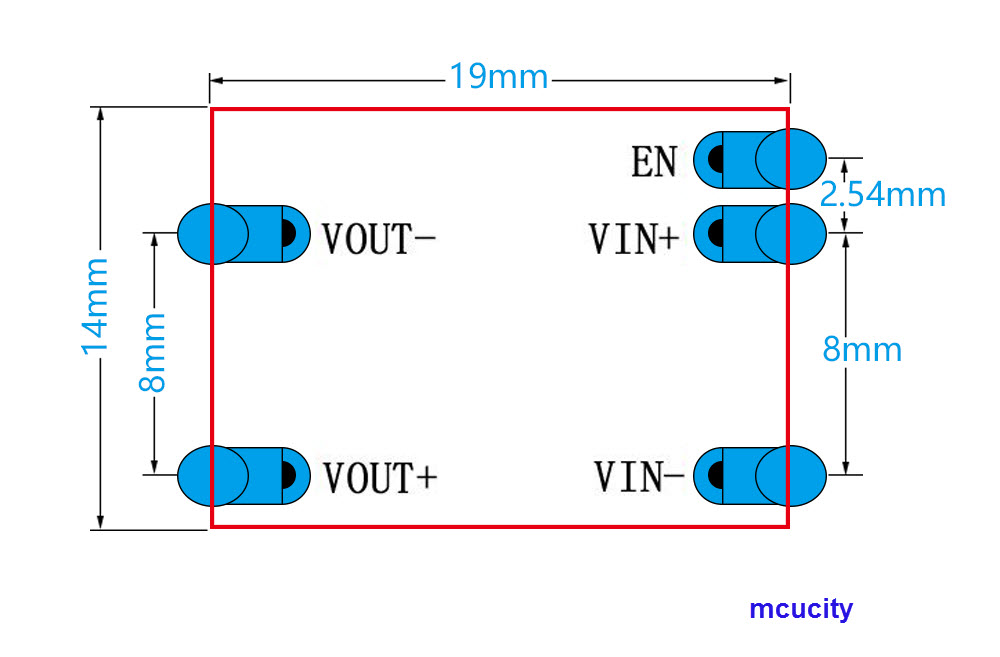

size	19*14*4mm
pcb thickness	1.2mm
pcb layers	2 layers
current control	with cut off
cooling method	cooling nature
installation method	SMD or 2.54mm pin
production process	reflow
isolated	NO
design aging standards	720 hours without trouble
production factory aging standard	48 hours
service life	35000 hours without trouble
factory inspection standards 3 times	all(factory/aging/out of library test)
fixed switching frequency	1200khz(1.2Mhz) MT3608 (B6288)

1. Automatic module DC-DC Buck Boost
