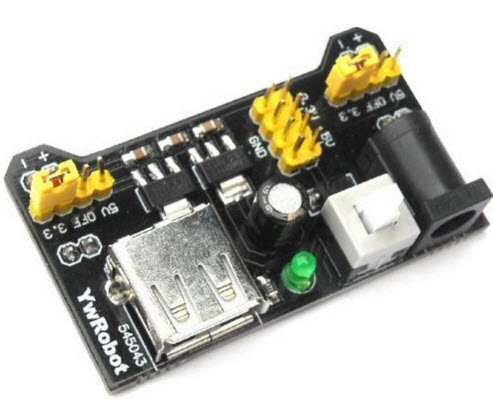

3.3V/5V Dual Output Breadboard Power Supply

Overview

This breadboard power supply features in a dual-channel output configuration. The input voltage can range from 6.5V to 15V. The on-board barrel connector allows the most common AC/DC adaptor (AC/DC wall-mount plug) to be used as the power source. This board features in a “plug and play” design. The board fits directly onto the most breadboards (MB-102) so that no wiring is needed for powering up the breadboard power rails.

Features

• Independent Dual-channel output (3.3V and 5V output at the same time)
• Optimized thermal design with PCB copper and vias as heat sink
• Additional aluminum heat sinks + heat-conducting stickers included for extra cooling
• Inverse input polarity protection
• Short circuit protection
• Thermo shutdown protection
• Plug and Play design
• Compact size

Electrical Characteristics

• Input Voltage: 6.5V-15V
• 5V Output Capability*:
  • 550mA@9V Input
  • 350mA@12V Input
• 3.3V Output Capability*:
  • 400mA@9V Input
  • 275mA@12V Input
• Output Voltage Accuracy (under no load): 1%

Package included :

1 x power module
